DESCRIPTION

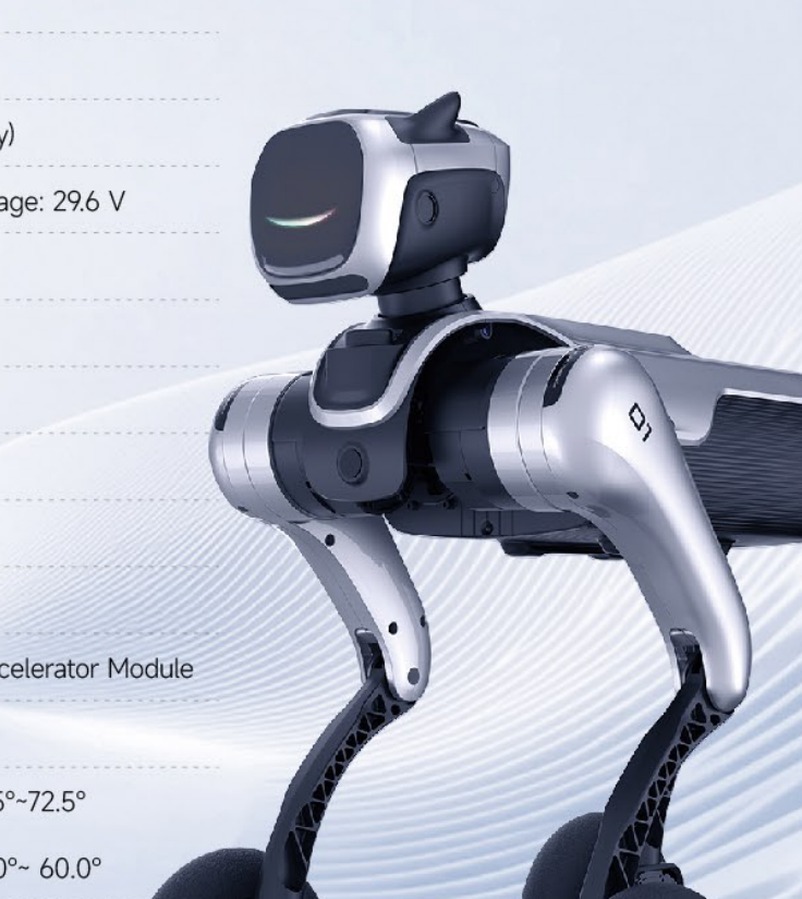

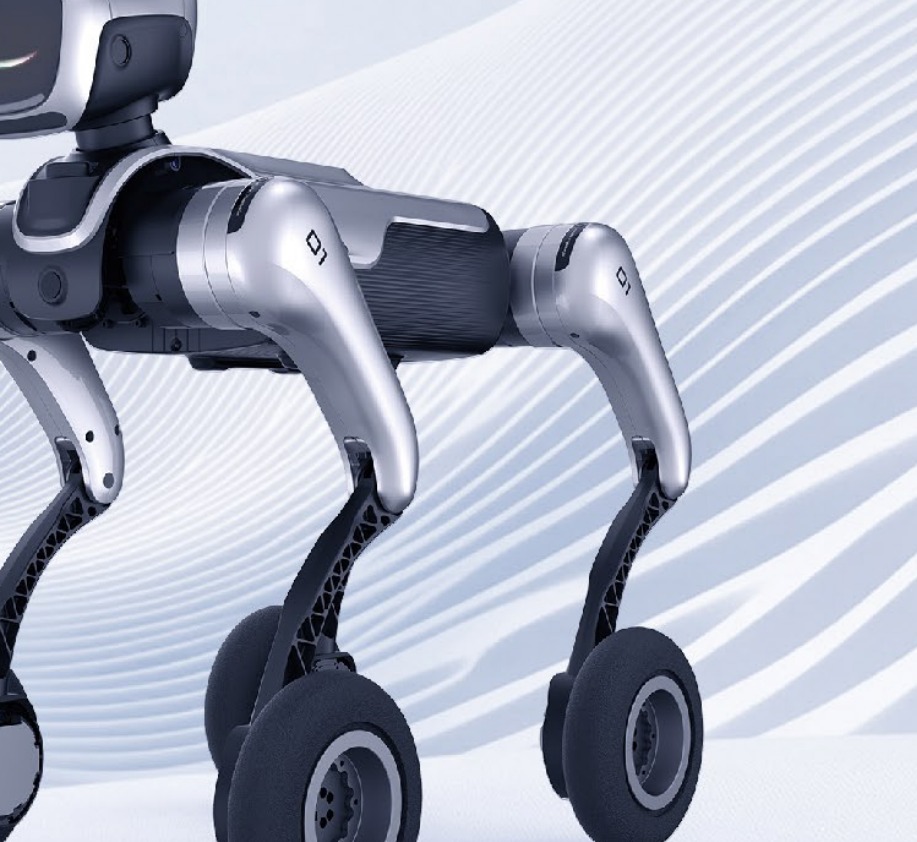

The MagicDog-W is the wheel-legged member of MagicLab's quadruped family, and the trade it makes against the legged MagicDog is clear from the numbers: it gains 7-inch pneumatic tyres, five and a half more kilograms, and dramatically more terrain capability. Where the legged version manages an 18 cm step, the MagicDog-W clears obstacles of 60 cm or more and climbs slopes of 40 degrees or steeper, while still exceeding 3.0 m/s on the flat. MagicLab again claims an industry first, this time for integrated body-head motion, delivered by 17 motors — 16 for the body and one dedicated to the head. Endurance runs two to four hours on the same 8,200 mAh 29.6 V pack, and payload doubles to 10 kg. The sensor suite matches its sibling with LiDAR, dual and depth cameras, 4K HD and fisheye cameras and ultrasonics, and it adds WiFi 5, 4G and Bluetooth 5.0. MagicLab positions it for research and commercial performance, and for patrol and survey work once fitted with accessories.
FEATURES
- Industry's first wheeled quadruped robot with integrated body-head motion, using 17 motors comprising 16 for the body and 1 for the head

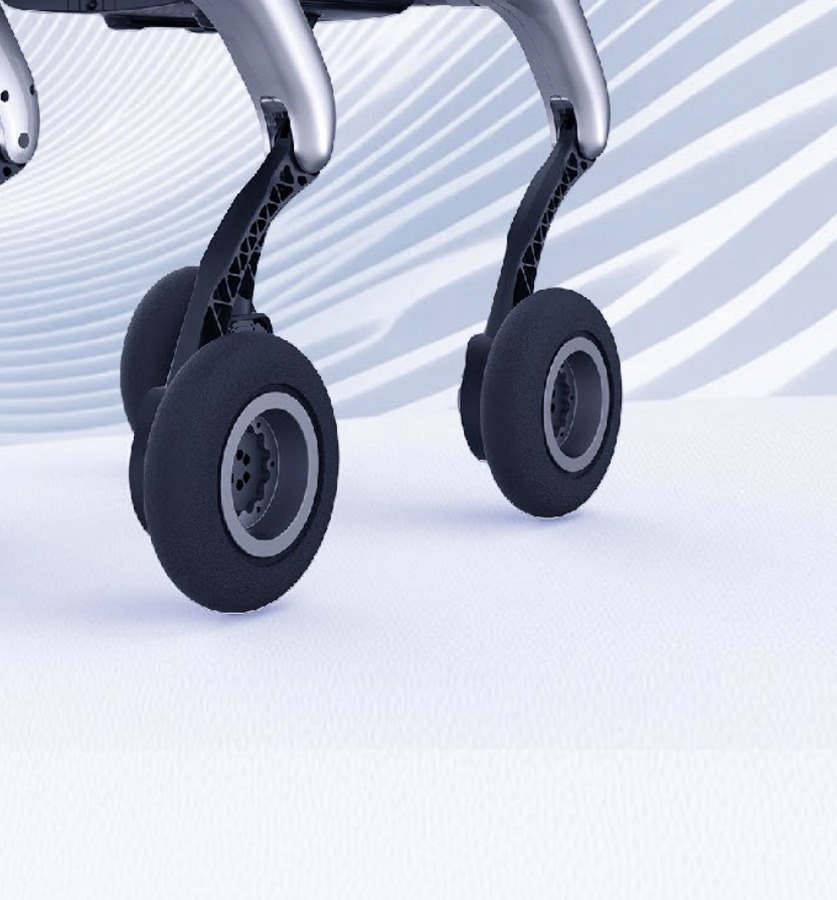

- 7-inch pneumatic tyres
- 67 x 35 x 65 cm standing, folding to 72 x 50 x 29 cm crouched
- approximately 22.5 kg including battery
- movement speed of 3.0 m/s or more
- maximum climbing height of 60 cm or more and maximum climbing slope of 40 degrees or more
- payload up to 10 kg
- 8,200 mAh 29.6 V battery giving 2 to 4 hours of operation
- maximum joint torque of 37.5 N·m
- high-performance 8-core CPU with a high-performance compute accelerator expansion module
- LiDAR, dual camera, depth vision, 4K HD camera, fisheye camera and ultrasonic sensors
- touch sensors
- circular microphone array and speaker
- WiFi 5, 4G and Bluetooth 5.0
- operating temperature range of -5 to 40 degrees Celsius
- intelligent emotion engine for voice, vision and touch interaction.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 22.5 kg |
|---|---|
| Dimensions | L 670 mm × W 350 mm × H 650 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Degrees of Freedom | 17 |
| Speed | 10.8 km/h |
| Environment | -5°C to 40°C |
| Actuators | Wheel-legged quadruped with 16 body motors plus 1 head motor on 7-inch pneumatic tyres; 37.5 N·m maximum joint torque; torso -37.0 to 45.0, thigh -207.5 to 72.5, shin -143.0 to -30.0, head -60.0 to 60.0 degrees |
| Power | |
| Battery Life | 2-4 h |
| Sensing & Compute | |
| Sensors | LiDAR, dual camera, depth vision, 4K HD camera, fisheye camera, ultrasonic sensors, touch sensors, circular microphone array |
| Connectivity | WiFi 5, 4G module, Bluetooth 5.0 |
| Software / AI | Intelligent emotion engine for multi-modal voice, vision and touch interaction |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 22.5 kg |
|---|---|
| Dimensions | L 670 mm × W 350 mm × H 650 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Degrees of Freedom | 17 |
| Speed | 10.8 km/h |
| Environment | -5°C to 40°C |
| Actuators | Wheel-legged quadruped with 16 body motors plus 1 head motor on 7-inch pneumatic tyres; 37.5 N·m maximum joint torque; torso -37.0 to 45.0, thigh -207.5 to 72.5, shin -143.0 to -30.0, head -60.0 to 60.0 degrees |
| Power | |
| Battery Life | 2-4 h |
| Sensing & Compute | |
| Sensors | LiDAR, dual camera, depth vision, 4K HD camera, fisheye camera, ultrasonic sensors, touch sensors, circular microphone array |
| Connectivity | WiFi 5, 4G module, Bluetooth 5.0 |
| Software / AI | Intelligent emotion engine for multi-modal voice, vision and touch interaction |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MagicDog-W?
The MagicDog-W is the wheel-legged member of MagicLab's quadruped family, and the trade it makes against the legged MagicDog is clear from the numbers: it gains 7-inch pneumatic tyres, five and a half more kilograms, and dramatically more terrain capability.
Who makes the MagicDog-W?
The MagicDog-W is made by MagicLab Robotics, a robotics company based in China.
How much does the MagicDog-W cost?
MagicLab Robotics has not publicly announced pricing for the MagicDog-W. You can enquire through RobotAIGeek for current pricing.
What is the MagicDog-W used for?
The MagicDog-W is designed for research, inspection, monitoring, and scientific research. It is used in research, education, and security & patrol settings.
What is the payload capacity of the MagicDog-W?
The MagicDog-W has a payload capacity of 10 kg.
How much does the MagicDog-W weigh?
The MagicDog-W weighs 22.5 kg.
How fast is the MagicDog-W?
The MagicDog-W can move at speeds of up to 10.8 km/h.
What is the battery life of the MagicDog-W?
The MagicDog-W runs for 2-4 h on a charge.
