DESCRIPTION
Esanav 35 is a Mobile-Robots from Esatroll. It is built for Material-Handling, Transport, Enclosed outdoor shuttle that moves cardboard stacks between buildings. Key figures: 3500 kg payload.

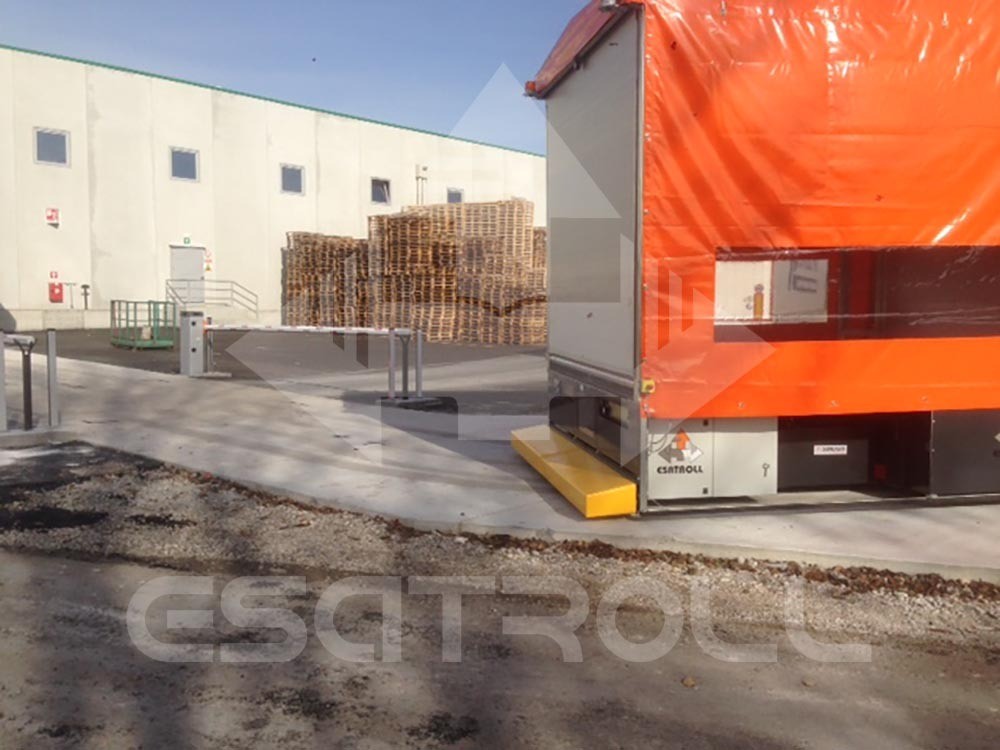

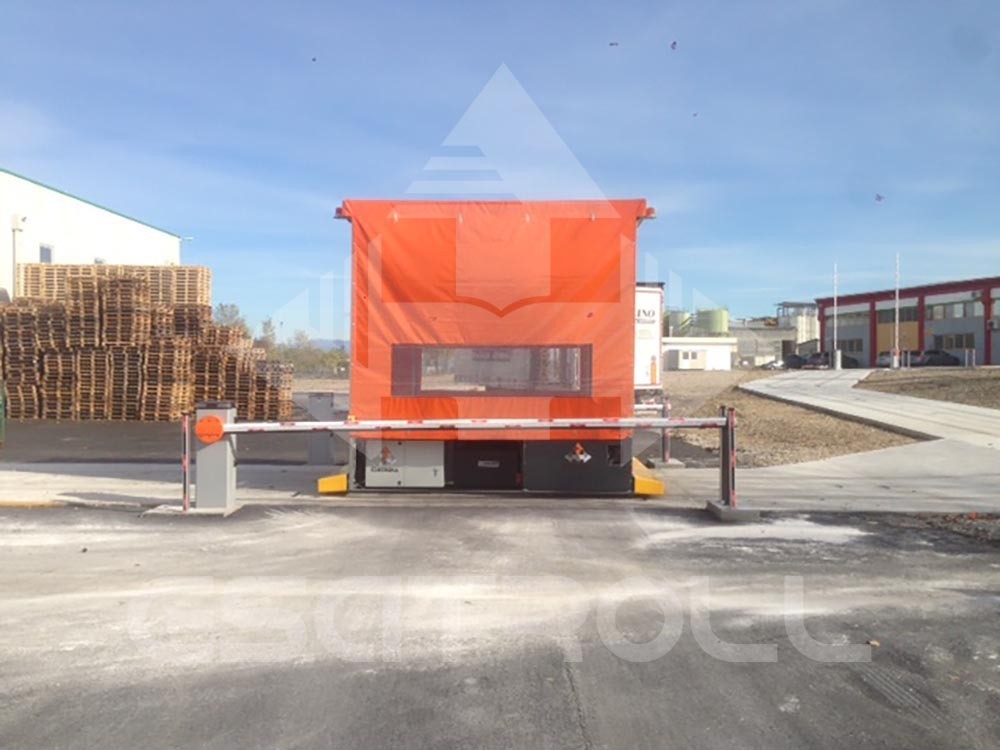

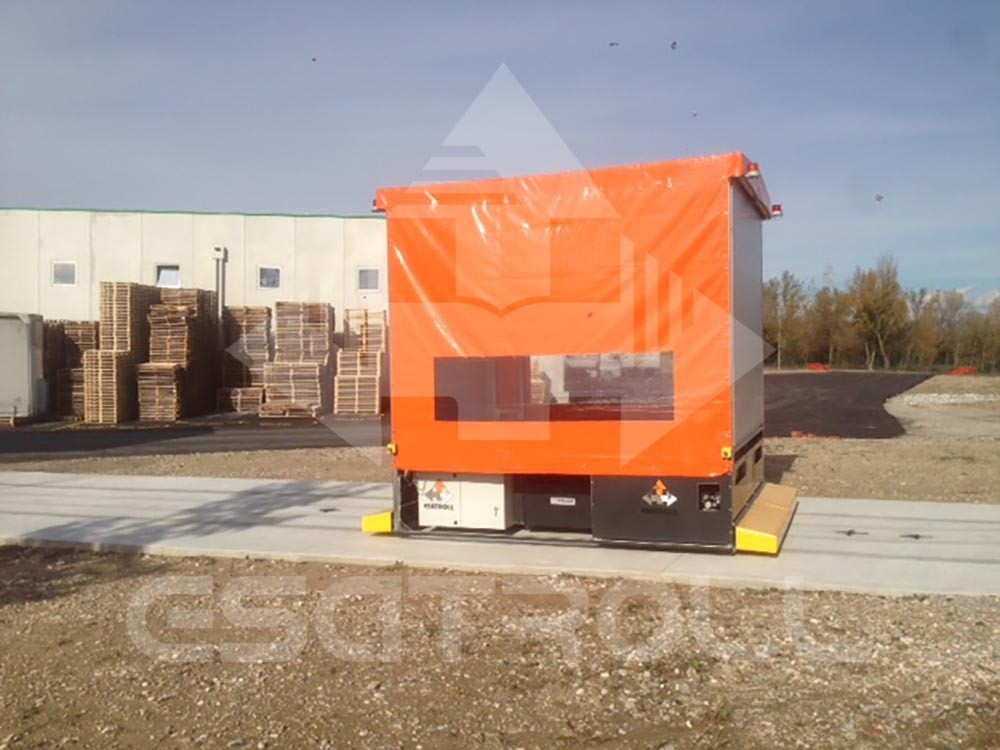

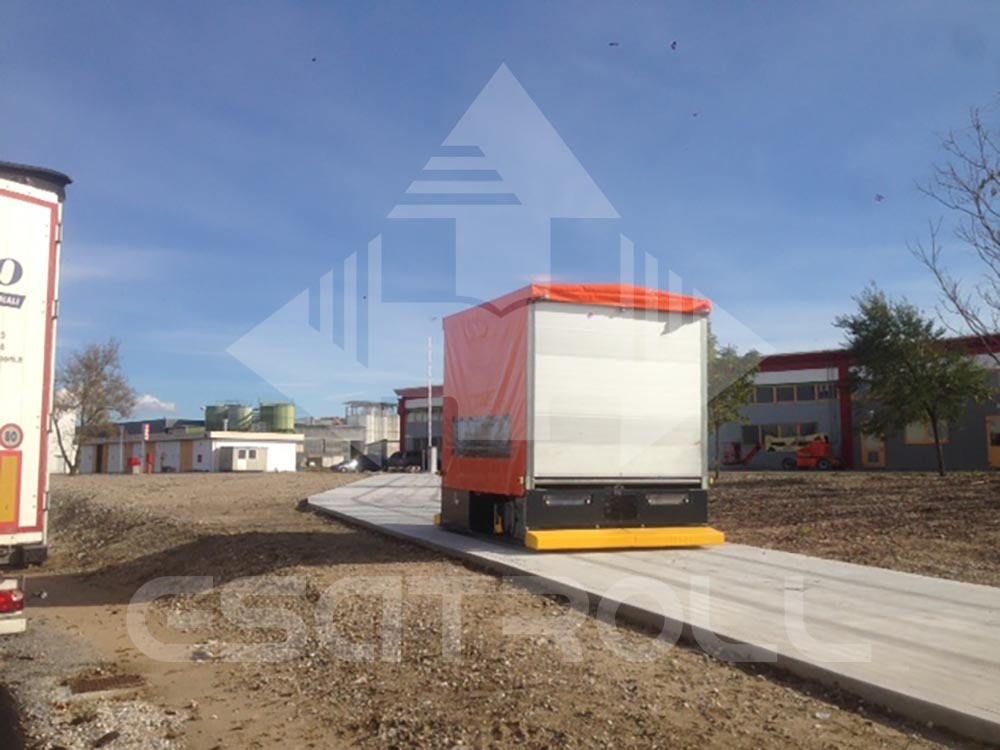

Esanav 35 (35/2R) is a large shuttle for stacks of cardboard in different formats, carrying up to 3,500 kg outdoors on a concrete track with a 4% gradient. It navigates inertially with a gyroscope and magnetic pads embedded in the floor, loads and unloads at the front on a single roller conveyor, and closes front and rear automatic shutter doors to protect the load from bad weather, also operating steps at the gates. Like Esatroll's other vehicles it is designed and built in-house in Switzerland and adapted to each customer's plant, and it can be run by Esatroll's customised supervisor, which takes calls from workstations, assigns vehicles, manages right of way and load delivery and logs activity.
FEATURES
- Up to 3,500 kg of cardboard stacks
- Inertial navigation (gyro + floor magnets)
- Front loading on a roller conveyor
- Automatic shutter doors against weather
- 4,250 x 3,000 x 3,850 mm
- 48 V
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 4.25 m × W 3 m × H 3.85 m |
|---|---|
| Payload | 3500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor concrete track between buildings of packaging plants |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 4.25 m × W 3 m × H 3.85 m |
|---|---|
| Payload | 3500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor concrete track between buildings of packaging plants |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Esanav 35?
Esanav 35 (35/2R) is a large shuttle for stacks of cardboard in different formats, carrying up to 3,500 kg outdoors on a concrete track with a 4% gradient.
Who makes the Esanav 35?
The Esanav 35 is made by Esatroll, a robotics company based in Switzerland.
How much does the Esanav 35 cost?
Esatroll has not publicly announced pricing for the Esanav 35. You can enquire through RobotAIGeek for current pricing.
What is the Esanav 35 used for?
The Esanav 35 is designed for material-handling, transport, and enclosed outdoor shuttle that moves cardboard stacks between buildings. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Esanav 35?
The Esanav 35 has a payload capacity of 3,500 kg.
