DESCRIPTION
Esalink GGL600 is a Mobile-Robots from Esatroll. It is built for Material-Handling, Transport, Automatic pallet stacker that forks light pallets on the long side and stacks them offset. Key figures: 600 kg payload.

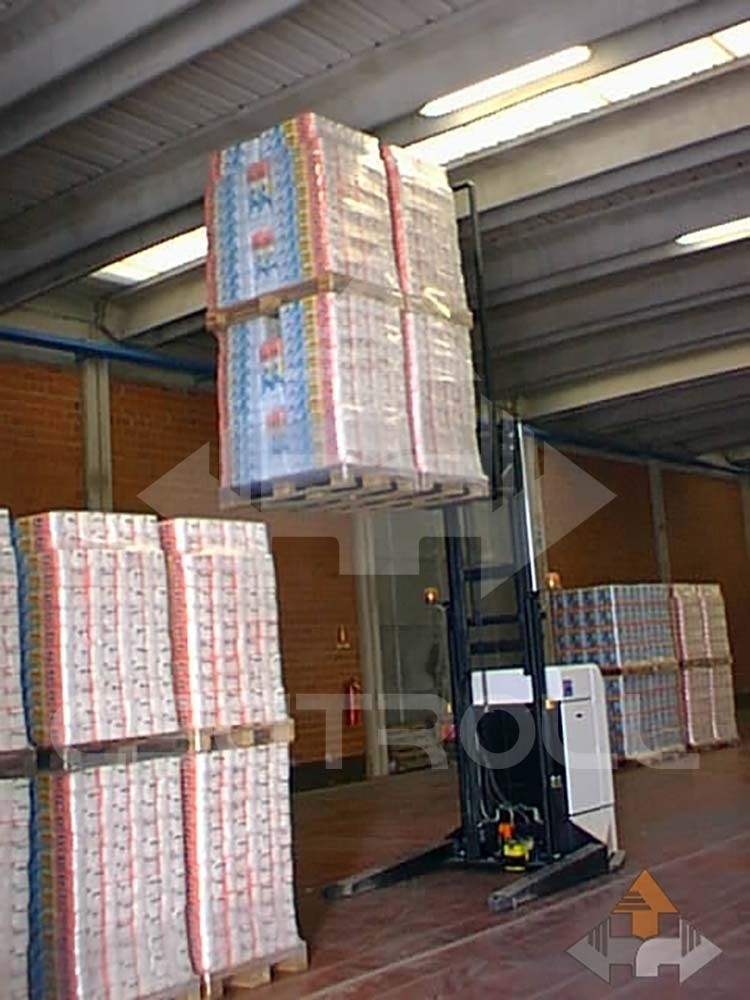

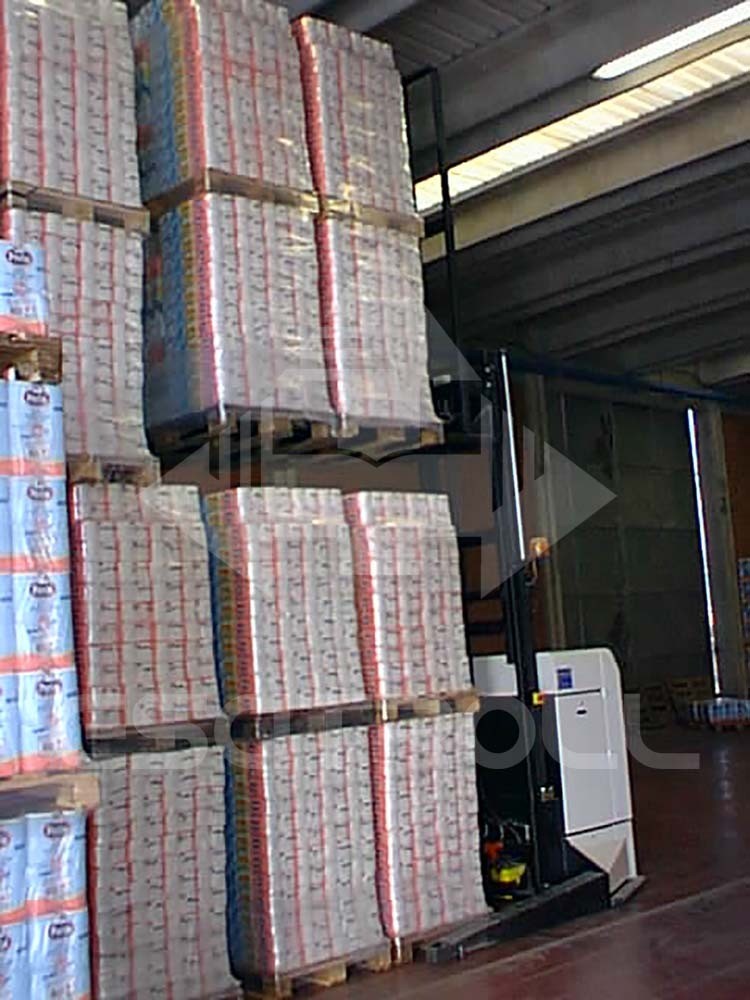

Esalink GGL600 is derived from the Esalink GL and moves light pallets of up to 600 kg forked on their long (1,200 mm) side. It can stack pallets with an offset between the upper and lower rows to improve stability, which matters for soft paper loads. Like Esatroll's other vehicles it is designed and built in-house in Switzerland and adapted to each customer's plant, and it can be run by Esatroll's customised supervisor, which takes calls from workstations, assigns vehicles, manages right of way and load delivery and logs activity.
FEATURES
- Forks pallets on the 1,200 mm side
- Up to 600 kg
- lift 3,300 mm
- Offset stacking for stability
- 2,220 x 1,490 x 2,300 mm
- Up to 1.2 m/s
- 48 V
- laser scanners and bumpers
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 2.22 m × W 1.49 m × H 2.3 m |
|---|---|
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor paper and tissue warehouses |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 2.22 m × W 1.49 m × H 2.3 m |
|---|---|
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor paper and tissue warehouses |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Esalink GGL600?
Esalink GGL600 is derived from the Esalink GL and moves light pallets of up to 600 kg forked on their long (1,200 mm) side. It can stack pallets with an offset between the upper and lower rows to improve stability, which matters for soft paper loads.
Who makes the Esalink GGL600?
The Esalink GGL600 is made by Esatroll, a robotics company based in Switzerland.
How much does the Esalink GGL600 cost?
Esatroll has not publicly announced pricing for the Esalink GGL600. You can enquire through RobotAIGeek for current pricing.
What is the Esalink GGL600 used for?
The Esalink GGL600 is designed for material-handling, transport, and automatic pallet stacker that forks light pallets on the long side and stacks them offset. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Esalink GGL600?
The Esalink GGL600 has a payload capacity of 600 kg.
How fast is the Esalink GGL600?
The Esalink GGL600 can move at speeds of up to 4.32 km/h.
