DESCRIPTION

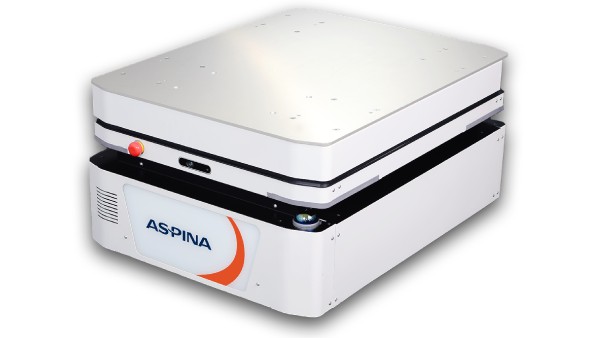

AspinaAMR300L is an Industrial-Robot from ASPINA (Shinano Kenshi). It is built for Intralogistics, Material-Handling, Transport. Key figures: 155 kg, 570 min runtime, 300 kg payload.
The AspinaAMR300L is the lift version of the 300 kg AspinaAMR. It picks up carts and shelves of up to 300 kg automatically and carries them through 800 mm factory aisles. It measures 600 x 800 x 378 mm, rising to 428 mm with the lift up, and weighs up to 155 kg. Two 3D LiDARs and a front 3D camera detect obstacles, and its LiFePO4 battery gives about 9.5 hours of running with a 2.5-hour charge. Like the rest of the range it runs at up to 3.6 km/h, is mapped and programmed from a Windows app, and links to PLCs, elevators and automatic doors.
FEATURES
- Lift-type AMR for carts and shelves up to 300 kg
- 600 x 800 x 378 mm (428 mm lifted)
- up to 155 kg (160 kg with auto-charging)
- Obstacle detection: 3D LiDAR front-left and rear-right, front 3D camera
- About 9.5 h runtime
- charges in 2.5 h
- LiFePO4 battery
- 8-ch I/O
- Max 3.6 km/h
- 3 deg max slope
- 800 mm minimum aisle (body only)
- stop accuracy +/-50 mm (+/-10 mm with guide option)
- LiFePO4 battery
- 0-40 C indoor only
- 2.4/5 GHz Wi-Fi
- Windows 11 operating app
- PLC/API control
- QR-code dispatch
- elevator and automatic-door integration
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 155 kg |
|---|---|
| Dimensions | L 800 mm × W 600 mm × H 378 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and production sites (0-40 C, 5-85% RH non-condensing, narrow aisles from 800 mm) |
| Actuators | In-wheel BLDC motors; lift unit |
| Power | |
| Battery Life | 570 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR x2, 3D camera |
| Connectivity | Wi-Fi 2.4/5 GHz; USB-A; 8-ch I/O; PLC/API |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 155 kg |
|---|---|
| Dimensions | L 800 mm × W 600 mm × H 378 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and production sites (0-40 C, 5-85% RH non-condensing, narrow aisles from 800 mm) |
| Actuators | In-wheel BLDC motors; lift unit |
| Power | |
| Battery Life | 570 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR x2, 3D camera |
| Connectivity | Wi-Fi 2.4/5 GHz; USB-A; 8-ch I/O; PLC/API |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AspinaAMR300L?
The AspinaAMR300L is the lift version of the 300 kg AspinaAMR. It picks up carts and shelves of up to 300 kg automatically and carries them through 800 mm factory aisles. It measures 600 x 800 x 378 mm, rising to 428 mm with the lift up, and weighs up to 155 kg.
Who makes the AspinaAMR300L?
The AspinaAMR300L is made by ASPINA (Shinano Kenshi), a robotics company based in Japan.
How much does the AspinaAMR300L cost?
ASPINA (Shinano Kenshi) has not publicly announced pricing for the AspinaAMR300L. You can enquire through RobotAIGeek for current pricing.
What is the AspinaAMR300L used for?
The AspinaAMR300L is designed for intralogistics, material-handling, transport, and heavy cart and shelf transport with automatic pick-up. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the AspinaAMR300L?
The AspinaAMR300L has a payload capacity of 300 kg.
How much does the AspinaAMR300L weigh?
The AspinaAMR300L weighs 155 kg.
How fast is the AspinaAMR300L?
The AspinaAMR300L can move at speeds of up to 3.6 km/h.
What is the battery life of the AspinaAMR300L?
The AspinaAMR300L runs for about 570 minutes on a charge.
