DESCRIPTION
FC Compact is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 300 kg, 1440 min runtime, 1000 kg payload.

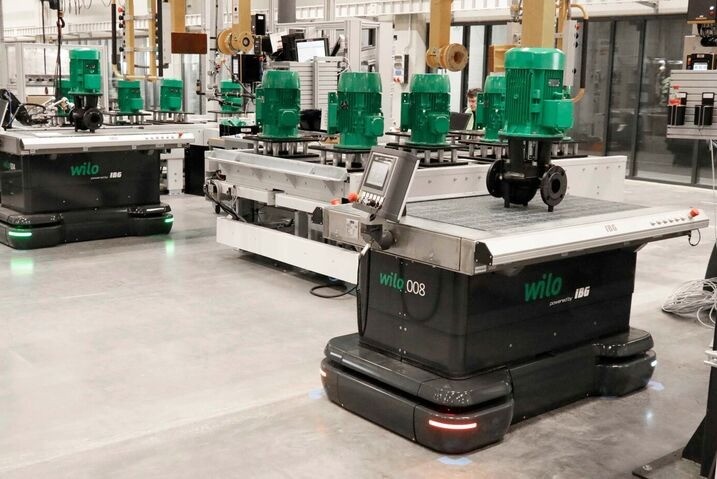

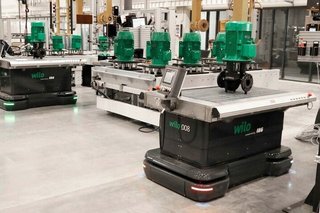

FC Compact is the modular base vehicle of IBG's Factory Cruiser family, built for ergonomic transport of load carriers between workstations. Free, contour-based navigation lets it run without floor tracks, its sensors detect and avoid obstacles, and safety scanners protect people working alongside it. A lifting table raises loads by +/-100 mm at 8 mm/s, and the module can also be fitted with a roller conveyor or configured as a tractor or forklift.\nThe 1,600 x 950 x 800 mm vehicle weighs 300 kg, carries a rated 1,000 kg at up to 1.0 m/s and runs 24 hours on a LiFePO4 battery that recharges in 1.5 hours.
FEATURES
- Free (contour-based) navigation
- obstacle avoidance
- safety scanners
- Lifting system +/-100 mm at 8 mm/s
- Rated payload 1,000 kg
- 1,600 x 950 x 800 mm
- 300 kg own weight
- 230 mm wheels
- 24 h operating time
- 1.5 h charging
- LiFePO4
- Up to 1.0 m/s
- Modular: lifting table, roller conveyor, tractor or forklift versions
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 1.6 m × W 950 mm × H 800 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, contour navigation sensors |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 1.6 m × W 950 mm × H 800 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, contour navigation sensors |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC Compact?
FC Compact is the modular base vehicle of IBG's Factory Cruiser family, built for ergonomic transport of load carriers between workstations. Free, contour-based navigation lets it run without floor tracks, its sensors detect and avoid obstacles, and safety scanners protect people working alongside it.
Who makes the FC Compact?
The FC Compact is made by IBG Automation, a robotics company based in Germany.
How much does the FC Compact cost?
IBG Automation has not publicly announced pricing for the FC Compact. You can enquire through RobotAIGeek for current pricing.
What is the FC Compact used for?
The FC Compact is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FC Compact?
The FC Compact has a payload capacity of 1,000 kg.
How much does the FC Compact weigh?
The FC Compact weighs 300 kg.
How fast is the FC Compact?
The FC Compact can move at speeds of up to 3.6 km/h.
What is the battery life of the FC Compact?
The FC Compact runs for about 1,440 minutes on a charge.
