DESCRIPTION
Esalink 2.0 is a Mobile-Robots from Esatroll. It is built for Material-Handling, Transport, SLAM-guided automatic pallet stacker with a 5 m mast for narrow spaces. Key figures: 1650 kg payload.

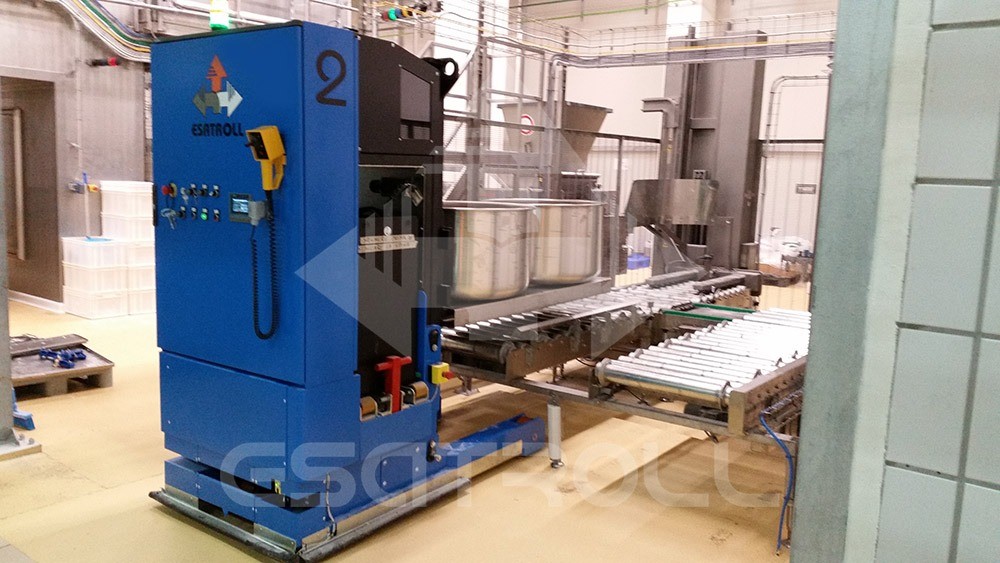

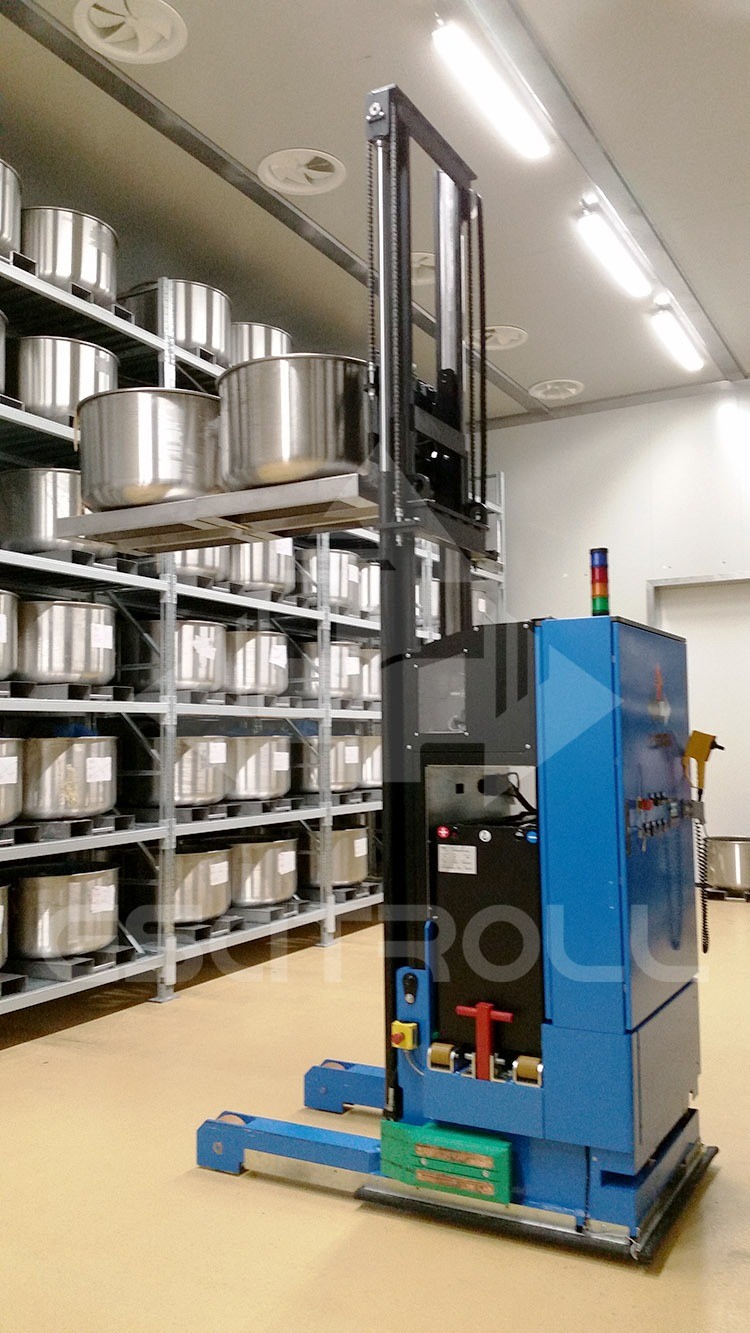

Esalink 2.0 is a SLAM laser-guided automatic vehicle of the pallet-truck type with a mast of up to 5 metres, especially suited to manoeuvring in narrow spaces. It lifts 1,650 kg at a 600 mm load centre; safety relies on front and side bumpers and laser scanners at the front and between the forks. Like Esatroll's other vehicles it is designed and built in-house in Switzerland and adapted to each customer's plant, and it can be run by Esatroll's customised supervisor, which takes calls from workstations, assigns vehicles, manages right of way and load delivery and logs activity.
FEATURES
- SLAM laser guidance
- Mast up to 5 m
- 1,650 kg at 600 mm load centre
- 1,056 x 1,780 (without forks) x 3,062 mm
- Up to 1.5 m/s
- 2.5 kW
- 48 V
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.78 m × W 1.06 m × H 3.06 m |
|---|---|
| Payload | 1650 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor warehouses and narrow aisles |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.78 m × W 1.06 m × H 3.06 m |
|---|---|
| Payload | 1650 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor warehouses and narrow aisles |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Esalink 2.0?
Esalink 2.0 is a SLAM laser-guided automatic vehicle of the pallet-truck type with a mast of up to 5 metres, especially suited to manoeuvring in narrow spaces. It lifts 1,650 kg at a 600 mm load centre; safety relies on front and side bumpers and laser scanners at the front and between the forks.
Who makes the Esalink 2.0?
The Esalink 2.0 is made by Esatroll, a robotics company based in Switzerland.
How much does the Esalink 2.0 cost?
Esatroll has not publicly announced pricing for the Esalink 2.0. You can enquire through RobotAIGeek for current pricing.
What is the Esalink 2.0 used for?
The Esalink 2.0 is designed for material-handling, transport, and slam-guided automatic pallet stacker with a 5 m mast for narrow spaces. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Esalink 2.0?
The Esalink 2.0 has a payload capacity of 1,650 kg.
How fast is the Esalink 2.0?
The Esalink 2.0 can move at speeds of up to 5.4 km/h.
