DESCRIPTION
U3200AR is an Industrial-Robot from Asseco CEIT. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 3000 kg payload.

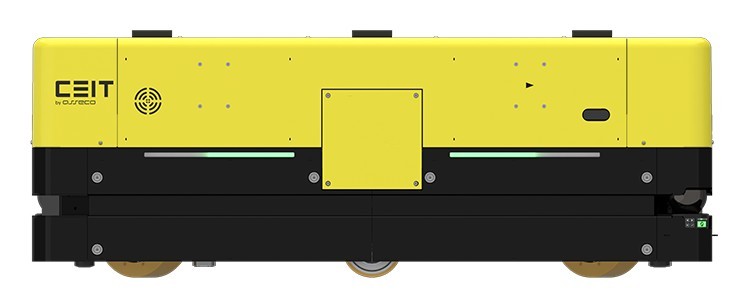

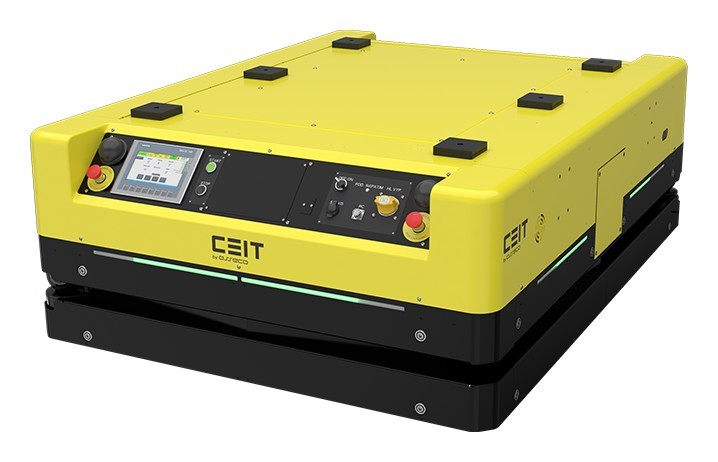

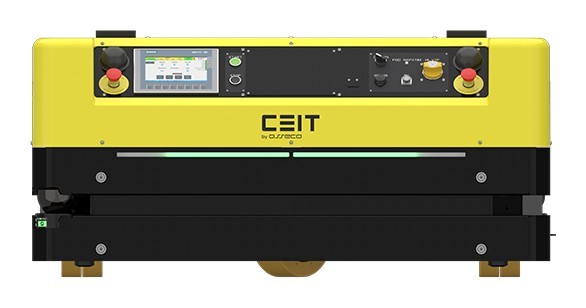

U3200AR is the lifting version of Asseco CEIT's U3200 under-run AGV: a hydraulic table raises up to 3,000 kg by as much as 500 mm, so loads can be delivered straight into robotic workstations and assembly processes without centring stations. It travels at up to 1.5 m/s and turns within 0.9 m; the U3200OR version is omnidirectional. It navigates by contour, uses two 270-degree SICK scanners (optional 2D scanner and 3D camera), runs on lithium batteries with wireless or contact charging, and supports VDA 5050.
FEATURES
- Load capacity 3,000 kg
- hydraulic lift up to 500 mm
- Max. speed 1.5 m/s
- min. turning radius 0.9 m
- AR: forward, backward, on-the-spot rotation
- OR: omnidirectional
- Contour navigation
- SICK 2 x 270 deg safety scanners
- optional 2D scanner and 3D camera
- Lithium batteries
- automatic wireless or contact charging
- VDA 5050
- CE
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.7 m × W 1.3 m × H 600 mm |
|---|---|
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor) |
| Power | |
| Charging Type | Automatic - wireless or contact |
| Sensing & Compute | |
| Sensors | SICK safety laser scanners (2 x 270 deg), optional 3D camera |
| Connectivity | 5G-compatible |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.7 m × W 1.3 m × H 600 mm |
|---|---|
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor) |
| Power | |
| Charging Type | Automatic - wireless or contact |
| Sensing & Compute | |
| Sensors | SICK safety laser scanners (2 x 270 deg), optional 3D camera |
| Connectivity | 5G-compatible |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the U3200AR?
U3200AR is the lifting version of Asseco CEIT's U3200 under-run AGV: a hydraulic table raises up to 3,000 kg by as much as 500 mm, so loads can be delivered straight into robotic workstations and assembly processes without centring stations.
Who makes the U3200AR?
The U3200AR is made by Asseco CEIT, a robotics company based in Slovak Republic.
How much does the U3200AR cost?
Asseco CEIT has not publicly announced pricing for the U3200AR. You can enquire through RobotAIGeek for current pricing.
What is the U3200AR used for?
The U3200AR is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the U3200AR?
The U3200AR has a payload capacity of 3,000 kg.
How fast is the U3200AR?
The U3200AR can move at speeds of up to 5.4 km/h.
