DESCRIPTION
VPE30/50S is an Industrial-Robot from i-Cow. It is built for Intralogistics, Material-Handling, Transport. Key figures: 1080 kg, 3000 kg payload.

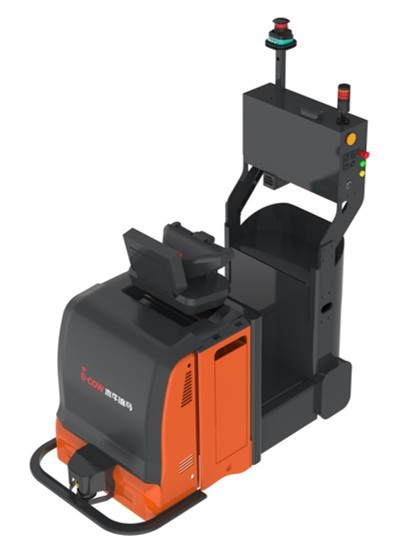

The VPE30/50S is a stand-on towing mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that tows trailers and carts in trains along factory routes. It is rated for 3,000 kg, weighs 1,080 kg and measures 1,778 x 893 x 2,322 mm. It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1529 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the VPE30S; the same page lists VPE50S variants with different capacities.
FEATURES
- Rated load 3,000 kg

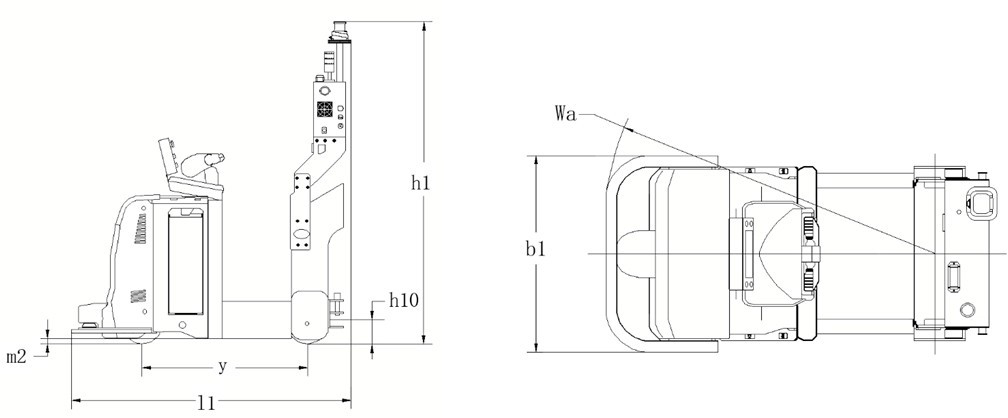

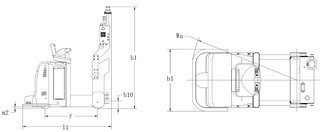

- Overall dimensions 1778 x 893 x 2322 mm (L x W x H)
- Service weight 1,080 kg
- Turning radius 1529 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VPE30S, VPE50S
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1080 kg |
|---|---|
| Dimensions | L 1.78 m × W 893 mm × H 2.32 m |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1080 kg |
|---|---|
| Dimensions | L 1.78 m × W 893 mm × H 2.32 m |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VPE30/50S?
The VPE30/50S is a stand-on towing mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that tows trailers and carts in trains along factory routes. It is rated for 3,000 kg, weighs 1,080 kg and measures 1,778 x 893 x 2,322 mm.
Who makes the VPE30/50S?
The VPE30/50S is made by i-Cow, a robotics company based in China.
How much does the VPE30/50S cost?
i-Cow has not publicly announced pricing for the VPE30/50S. You can enquire through RobotAIGeek for current pricing.
What is the VPE30/50S used for?
The VPE30/50S is designed for intralogistics, material-handling, transport, and autonomous pallet and material handling. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VPE30/50S?
The VPE30/50S has a payload capacity of 3,000 kg.
How much does the VPE30/50S weigh?
The VPE30/50S weighs 1,080 kg.
How fast is the VPE30/50S?
The VPE30/50S can move at speeds of up to 5.4 km/h.
