DESCRIPTION
Shark 1500 is an Industrial-Robot from OKAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 1500 kg payload.

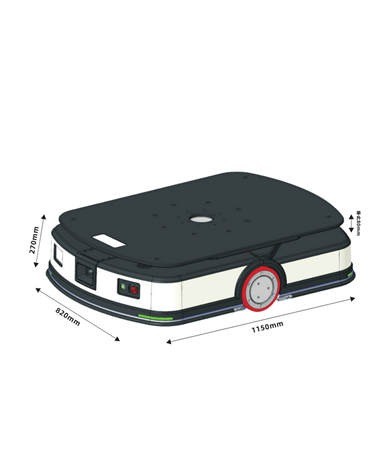

The Shark 1500 is OKAGV's Shark-series differential-drive autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-80 mm lift) and carries up to 1.5 t through factories and warehouses. It measures 1150 x 820 x 270 mm, travels at up to 80 m/min, uses differential drive, and navigates by QR code, laser or SLAM, with +/-10 mm guidance and stopping accuracy. The largest Shark, it stays only 270 mm tall while carrying 1.5 tonnes.\nLike the rest of OKAGV's range it runs 24 hours on a lithium battery (DC 48 V lithium) rated for at least 2,000 cycles with automatic charging, climbs gradients up to 4 degrees, and is protected by a laser obstacle sensor with an adjustable 0-180 degree, 0-3 m field, front and rear bumpers and emergency stops; it is designed for indoor use at 0-40 C and a 10-year lifespan.
FEATURES
- Payload 1,500 kg
- lifting stroke 0-80 mm
- Size 1150 x 820 x 270 mm
- Max speed 80 m/min
- Drive: differential drive
- Navigation: QR code, laser or SLAM
- Guidance and stop accuracy +/-10 mm
- Battery: DC 48 V lithium, >= 2,000 cycles
- automatic charging
- Gradeability <= 4 deg
- 24 h operation
- Safety: laser obstacle sensor (0-180 deg, 0-3 m), front/rear bumpers, e-stops
- Indoor 0-40 C, 40-80% RH
- designed lifespan 10 years
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.15 m × W 820 mm × H 270 mm |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.8 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.15 m × W 820 mm × H 270 mm |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.8 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Shark 1500?
The Shark 1500 is OKAGV's Shark-series differential-drive autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-80 mm lift) and carries up to 1.5 t through factories and warehouses.
Who makes the Shark 1500?
The Shark 1500 is made by OKAGV, a robotics company based in China.
How much does the Shark 1500 cost?
OKAGV has not publicly announced pricing for the Shark 1500. You can enquire through RobotAIGeek for current pricing.
What is the Shark 1500 used for?
The Shark 1500 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Shark 1500?
The Shark 1500 has a payload capacity of 1,500 kg.
How fast is the Shark 1500?
The Shark 1500 can move at speeds of up to 4.8 km/h.
