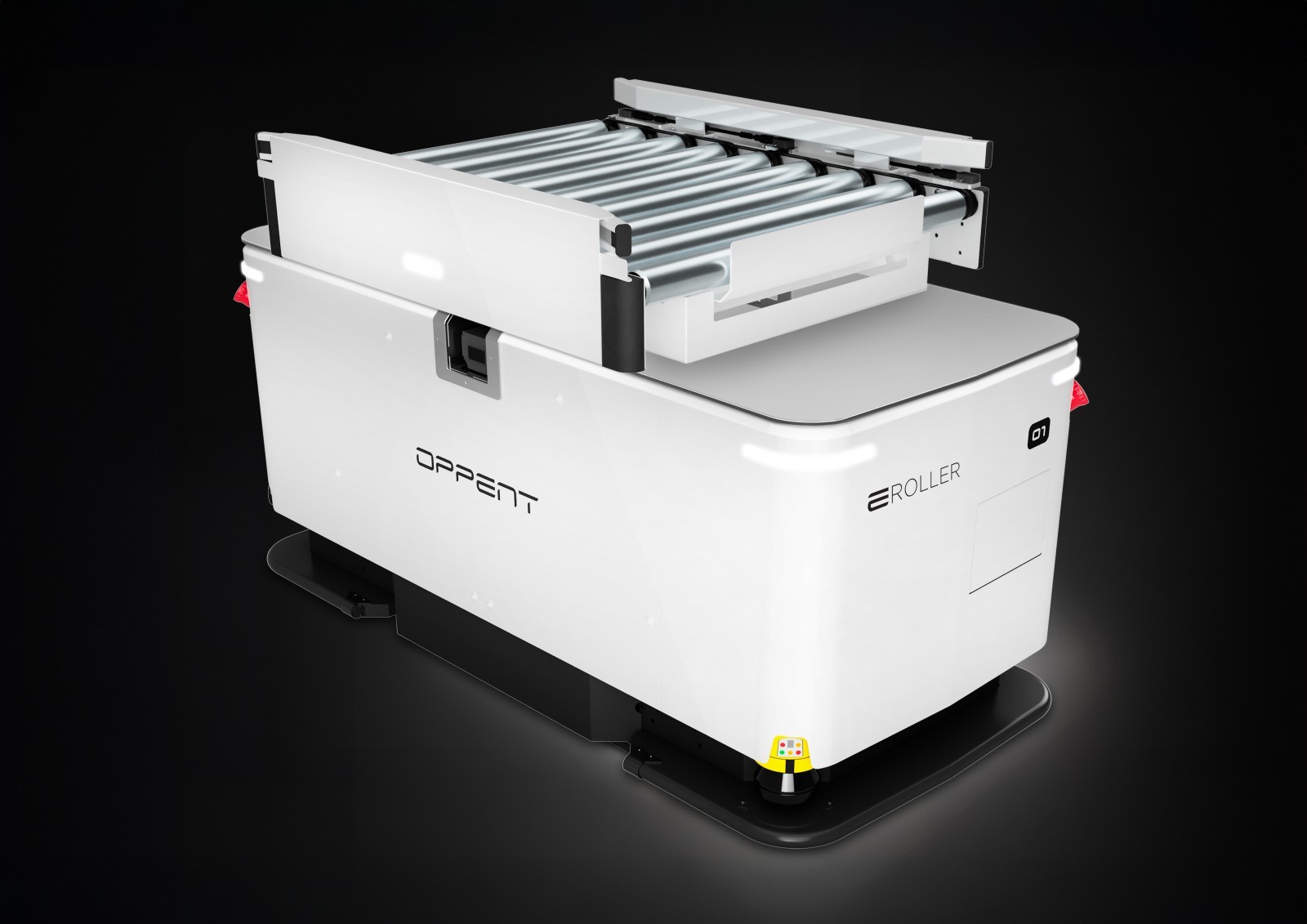

EROLLER 8

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent EROLLER 8 autonomous mobile robot

DESCRIPTION

EROLLER 8 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 350 kg, 540 min runtime, 150 kg payload.

EROLLER 8 is a model in Oppent's EROLLER family of autonomous mobile robots, built in Italy. Its omnidirectional drive lets it line its 800 mm-high roller deck up precisely with conveyors to transfer loads up to 150 kg.\nPer its datasheet it measures 1,400 x 662 x 850 mm, weighs 350 kg without batteries and carries 150 kg nominal (180 kg maximum) on powered roller deck 855 x 655 mm at 800 mm height. It uses double-trike omnidirectional drive (2 x 300 W), travels at up to 1.0 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 9 hours on a LiFePO4 24 V 120 Ah (LeadGel 24 V 140 Ah or PureLead 24 V 120 Ah options) battery with 3 h recharge. Safety comes from 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 150 kg
maximum 180 kg
Equipment: powered roller deck 855 x 655 mm at 800 mm height
Size 1,400 x 662 x 850 mm
350 kg without batteries
Drive: double-trike omnidirectional drive (2 x 300 W)
max speed 1.0 m/s
slopes up to 3%
Battery: LiFePO4 24 V 120 Ah (LeadGel 24 V 140 Ah or PureLead 24 V 120 Ah options)
about 9 h autonomy, 3 h recharge
Safety: 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	350 kg
Dimensions	L 1.4 m × W 662 mm × H 850 mm
Payload	150 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	540 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	350 kg
Dimensions	L 1.4 m × W 662 mm × H 850 mm
Payload	150 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	540 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the EROLLER 8?

Who makes the EROLLER 8?

The EROLLER 8 is made by Oppent, a robotics company based in Italy.

How much does the EROLLER 8 cost?

Oppent has not publicly announced pricing for the EROLLER 8. You can enquire through RobotAIGeek for current pricing.

What is the EROLLER 8 used for?

The EROLLER 8 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
