EROLLER 10

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent EROLLER 10 autonomous mobile robot

DESCRIPTION

EROLLER 10 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 1036 kg, 840 min runtime, 700 kg payload.

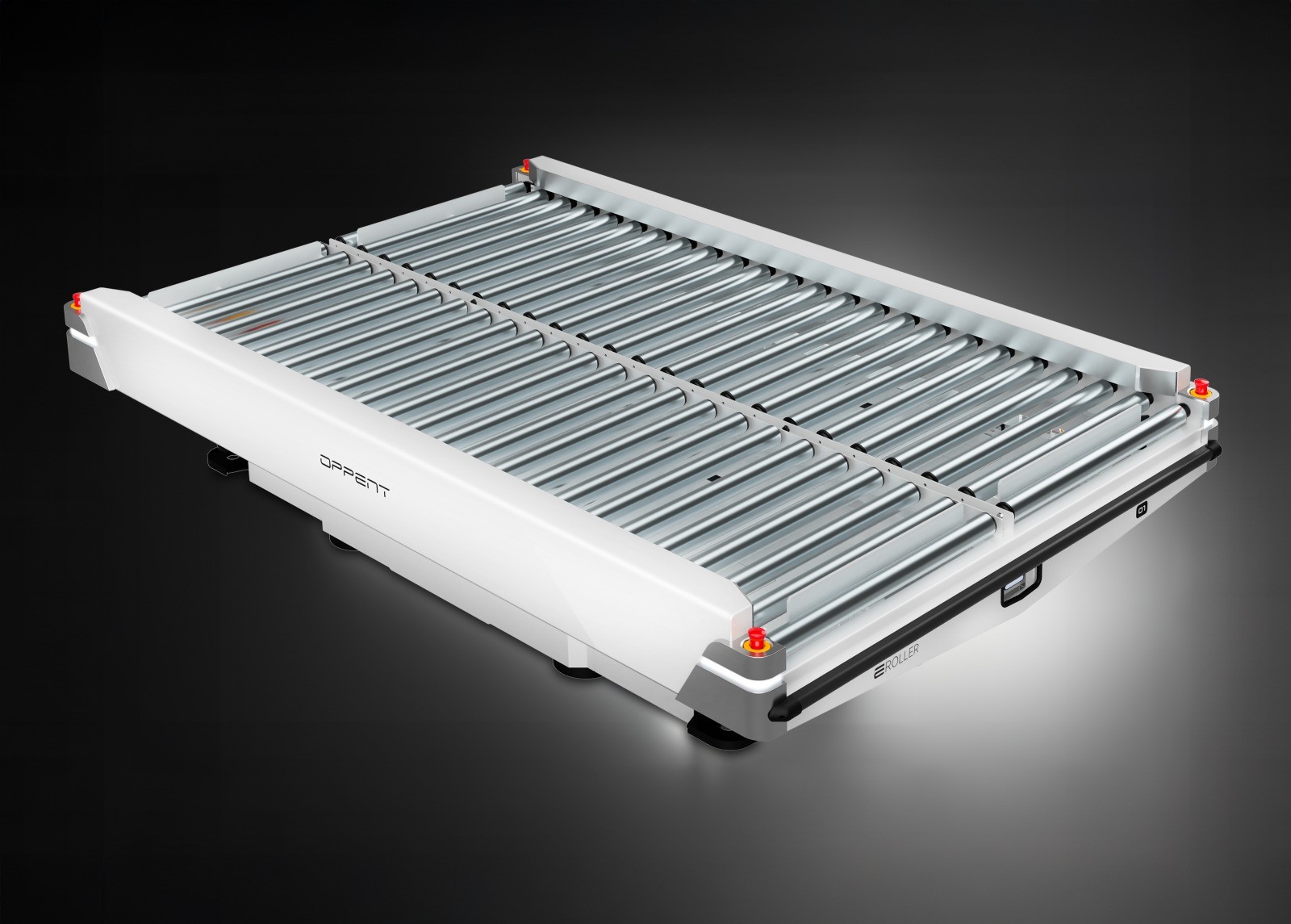

EROLLER 10 is a model in Oppent's EROLLER family of autonomous mobile robots, built in Italy. The largest EROLLER, a 3 x 2 m vehicle that carries loads up to 2,500 x 1,700 mm and 700 kg (1,000 kg maximum) on a 48-roller deck and runs 14 hours per charge.\nPer its datasheet it measures 3,000 x 2,010 x 650 mm, weighs 1,036 kg without batteries and carries 700 kg nominal (1,000 kg maximum) on powered roller deck 1,500 x 1,000 mm at 500 mm height (48 rollers). It uses double-trike omnidirectional drive (2 x 700 W), travels at up to 1.4 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 14 hours on a Lithium NMC 24 V 370 Ah battery with 3 h recharge. Safety comes from 2 Sick microScan3 (PLd) laser scanners, sensitive edges, 5 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 700 kg
maximum 1,000 kg
Equipment: powered roller deck 1,500 x 1,000 mm at 500 mm height (48 rollers)
Size 3,000 x 2,010 x 650 mm
1,036 kg without batteries
Drive: double-trike omnidirectional drive (2 x 700 W)
max speed 1.4 m/s
slopes up to 3%
Battery: Lithium NMC 24 V 370 Ah
about 14 h autonomy, 3 h recharge
Safety: 2 Sick microScan3 (PLd) laser scanners, sensitive edges, 5 e-stops, Sick Flexi safety controller
14 h autonomy
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	1036 kg
Dimensions	L 3 m × W 2.01 m × H 650 mm
Payload	700 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	840 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	1036 kg
Dimensions	L 3 m × W 2.01 m × H 650 mm
Payload	700 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	840 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the EROLLER 10?

Who makes the EROLLER 10?

The EROLLER 10 is made by Oppent, a robotics company based in Italy.

How much does the EROLLER 10 cost?

Oppent has not publicly announced pricing for the EROLLER 10. You can enquire through RobotAIGeek for current pricing.

What is the EROLLER 10 used for?

The EROLLER 10 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
