EPALLET 7

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling Pallet-Transportation TransportIntralogistics

Price:

Not announced

Model:

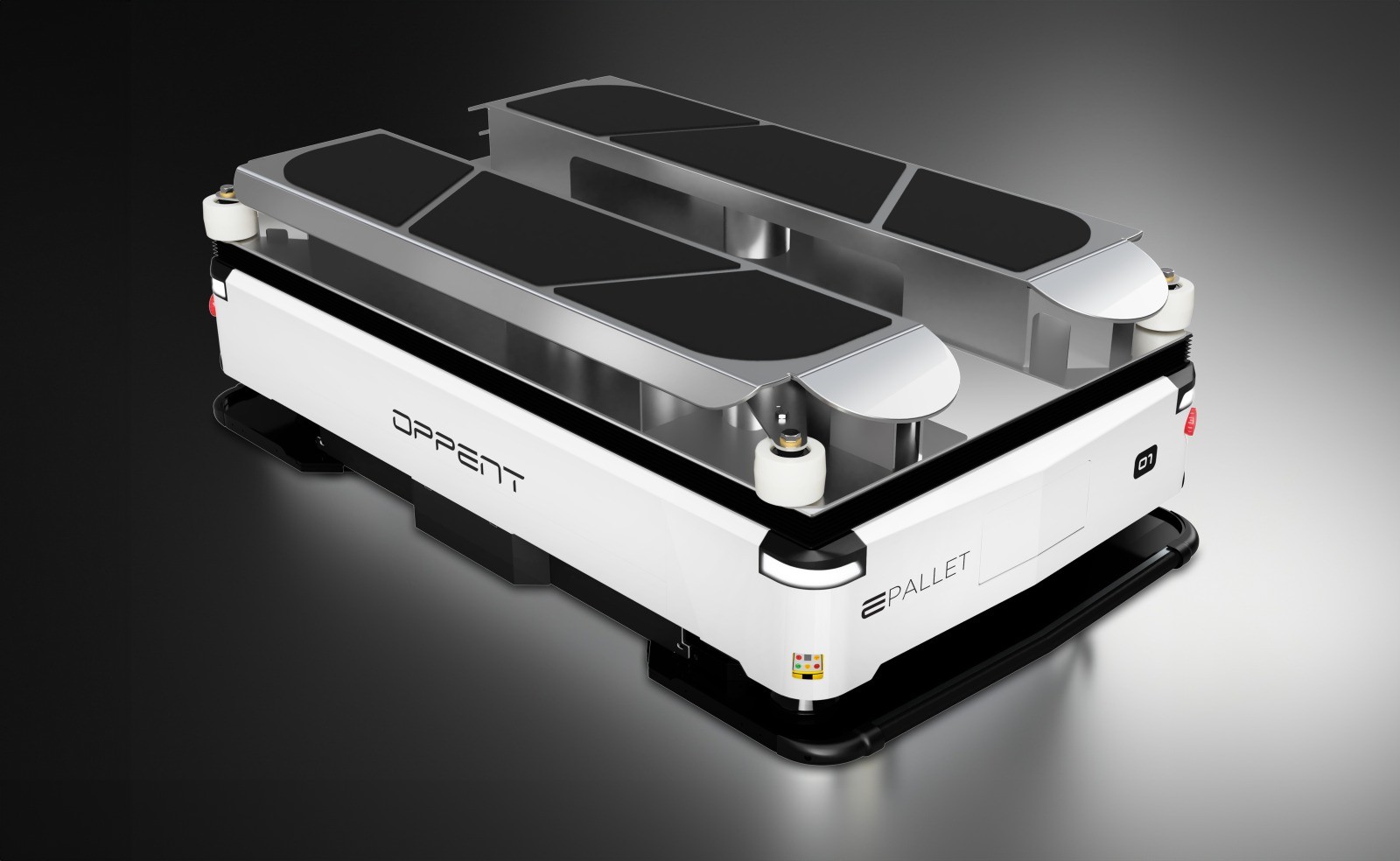

Oppent EPALLET 7 autonomous mobile robot

DESCRIPTION

EPALLET 7 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 400 kg, 360 min runtime, 1200 kg payload.

EPALLET 7 is a model in Oppent's EPALLET family of autonomous mobile robots, built in Italy. The heavy EPALLET, it moves 1,200 x 1,200 mm pallets of up to 1,200 kg (1,500 kg maximum) at up to 1.8 m/s.\nPer its datasheet it measures 1,400 x 820 x 490 mm, weighs 400 kg without batteries and carries 1,200 kg nominal (1,500 kg maximum) on lift platform with pallet forks, 100 mm stroke. It uses differential, bidirectional drive (2 x 1,500 W brushless), travels at up to 1.8 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 6 hours on a LiFePO4 24 V 100 Ah battery with 2.5 h recharge. Safety comes from 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller (Performance Level d), and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 1,200 kg
maximum 1,500 kg
Equipment: lift platform with pallet forks, 100 mm stroke
Size 1,400 x 820 x 490 mm
400 kg without batteries
Drive: differential, bidirectional drive (2 x 1,500 W brushless)
max speed 1.8 m/s
slopes up to 3%
Battery: LiFePO4 24 V 100 Ah
about 6 h autonomy, 2.5 h recharge
Safety: 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller (Performance Level d)
Works with a custom pallet station
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	400 kg
Dimensions	L 1.4 m × W 820 mm × H 490 mm
Payload	1200 kg
Mobility
Movement Type	Wheeled
Speed	6.48 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	400 kg
Dimensions	L 1.4 m × W 820 mm × H 490 mm
Payload	1200 kg
Mobility
Movement Type	Wheeled
Speed	6.48 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the EPALLET 7?

Who makes the EPALLET 7?

The EPALLET 7 is made by Oppent, a robotics company based in Italy.

How much does the EPALLET 7 cost?

Oppent has not publicly announced pricing for the EPALLET 7. You can enquire through RobotAIGeek for current pricing.

What is the EPALLET 7 used for?

The EPALLET 7 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in warehouse & logistics and manufacturing settings.
