DESCRIPTION

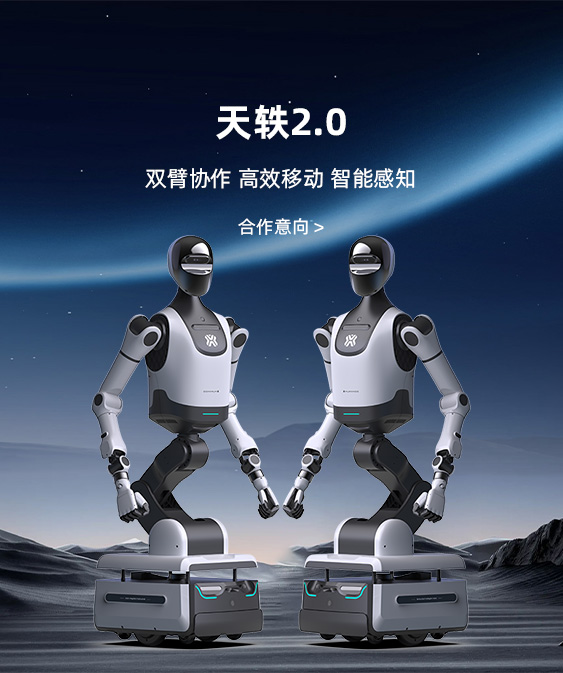

Wheeled and humanoid in form, the Tian Yi 2.0 handles office, factory, and industrial tasks with a 6 kg payload, 900 mm reach, and 0.03 mm repeatability.
FEATURES

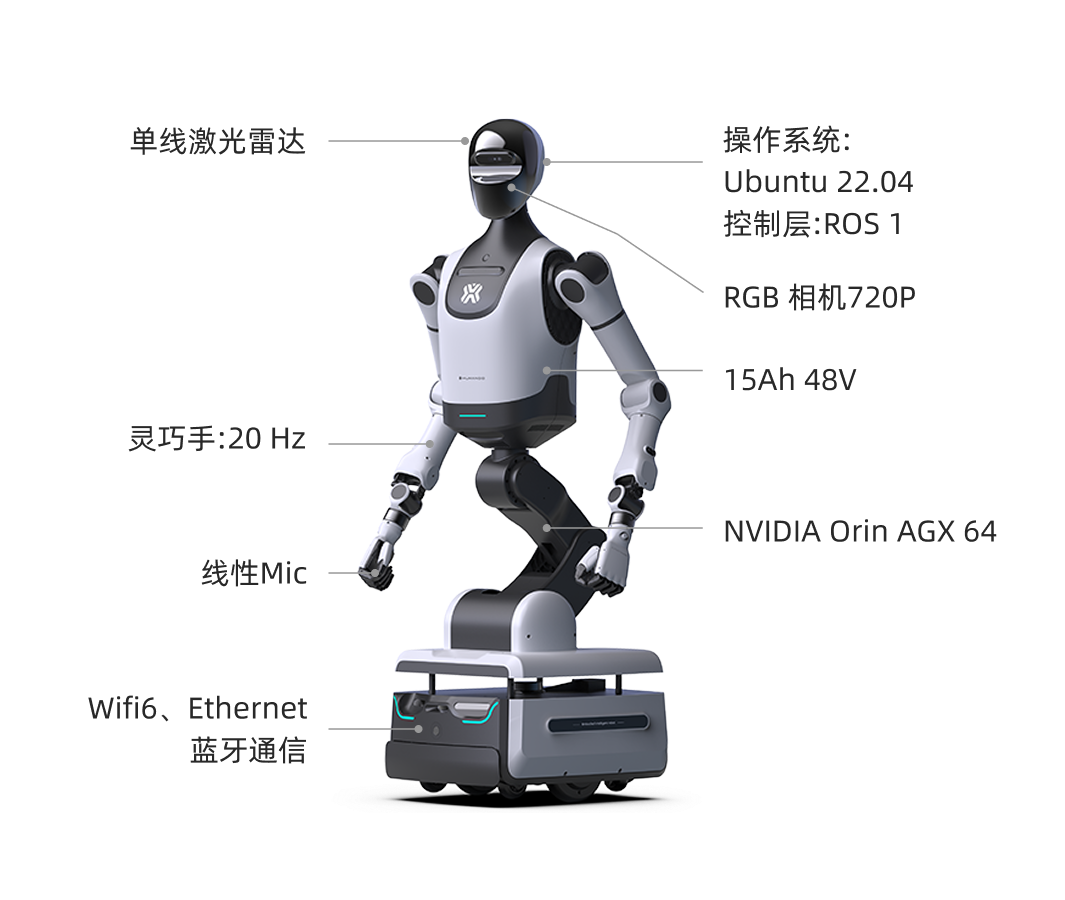

- Height: 130-165 cm, Weight: 88.5 kg, Endurance: > 2 hours, Battery: 15Ah, 48V, Compute: NVIDIA Orin AGX (275 TOPS), Cameras: Head RGBD ×1
- Base RGBD ×2
- RGB ×1, LiDAR: Single-line LiDAR ×1, Voice module: Wired microphones ×4, Total DOF: 35, External communications: Wi-Fi 6, Ethernet, Bluetooth, Internal communications: CAN / EtherCAT (500–1 kHz), Dexterous hand: 20 Hz, Robotic arm: ≥ 200 Hz, RGBD camera: 30 Hz, Operating system: Ubuntu 22.04, Control layer: ROS 1
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 88.5 kg |
|---|---|
| Dimensions | H 1.65 m |
| Payload | 6 kg |
| Reach | 900 mm |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 35 |
| Speed | 6.98 km/h |
| Manipulation | Mid |
| Power | |
| Battery Life | 120 min |
| Sensing & Compute | |
| Software / AI | Open joint control, sensor, whole-body force sensing, motion control and embodied manipulation interfaces; Wise Kaiwu platform |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 88.5 kg |
|---|---|
| Dimensions | H 1.65 m |
| Payload | 6 kg |
| Reach | 900 mm |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 35 |
| Speed | 6.98 km/h |
| Manipulation | Mid |
| Power | |
| Battery Life | 120 min |
| Sensing & Compute | |
| Software / AI | Open joint control, sensor, whole-body force sensing, motion control and embodied manipulation interfaces; Wise Kaiwu platform |
Images
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Embodied Tian Yi 2.0?
Wheeled and humanoid in form, the Tian Yi 2.0 handles office, factory, and industrial tasks with a 6 kg payload, 900 mm reach, and 0.03 mm repeatability.
Who makes the Embodied Tian Yi 2.0?
The Embodied Tian Yi 2.0 is made by Beijing Humanoid Robot Innovation Center, a robotics company based in China.
How much does the Embodied Tian Yi 2.0 cost?
Beijing Humanoid Robot Innovation Center has not publicly announced pricing for the Embodied Tian Yi 2.0. You can enquire through RobotAIGeek for current pricing.
What is the Embodied Tian Yi 2.0 used for?
The Embodied Tian Yi 2.0 is designed for research, delivery, inspection, and education. It is used in others, healthcare, homes, and warehouse & logistics settings.
What is the payload capacity of the Embodied Tian Yi 2.0?
The Embodied Tian Yi 2.0 has a payload capacity of 6 kg and a reach of 900 mm.
How much does the Embodied Tian Yi 2.0 weigh?
The Embodied Tian Yi 2.0 weighs 88.5 kg.
How fast is the Embodied Tian Yi 2.0?
The Embodied Tian Yi 2.0 can move at speeds of up to 6.98 km/h.
What is the battery life of the Embodied Tian Yi 2.0?
The Embodied Tian Yi 2.0 runs for about 120 minutes on a charge.
