ECART 9

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Healthcare Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent ECART 9 autonomous mobile robot

DESCRIPTION

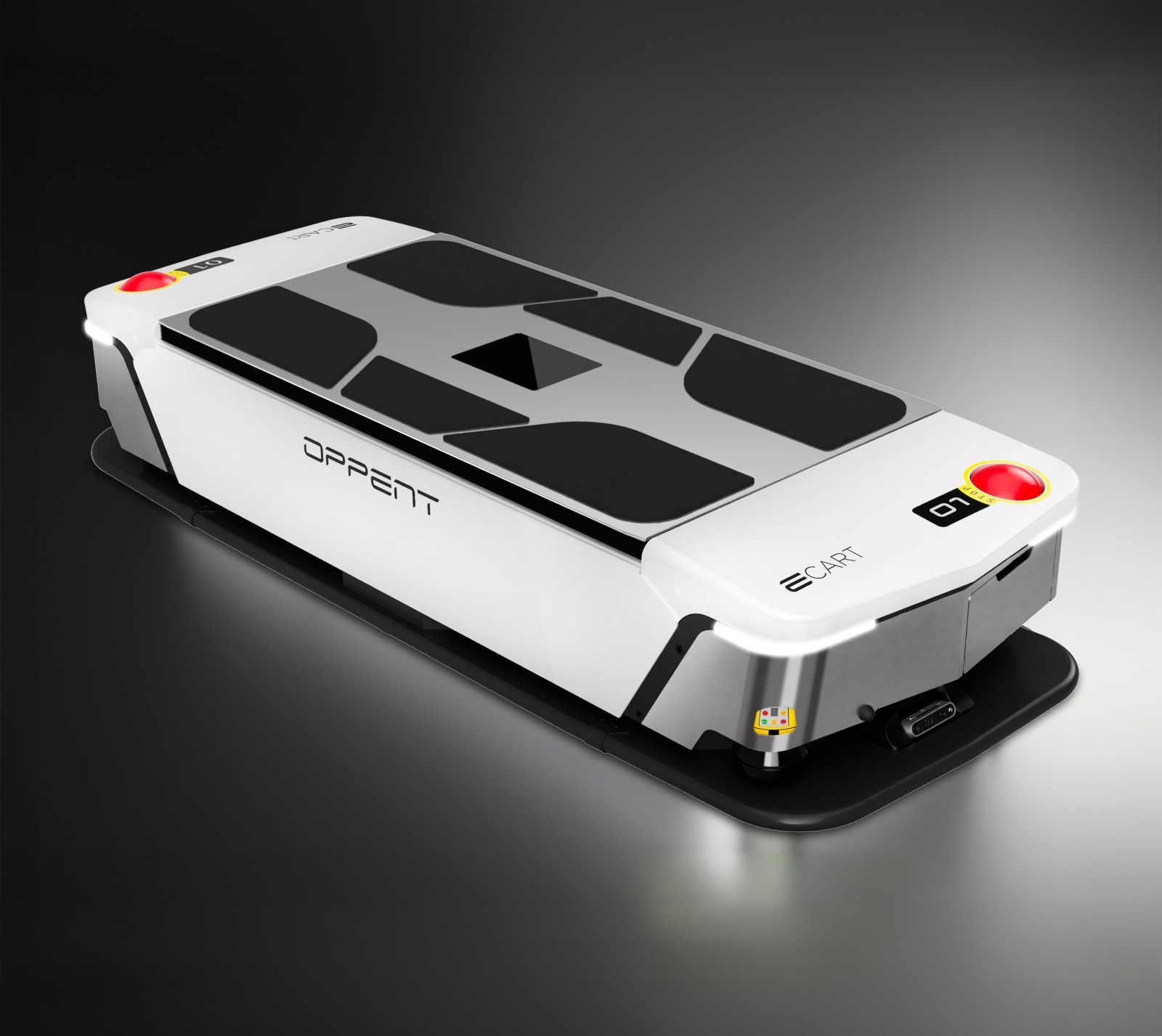

ECART 9 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 265 kg, 600 min runtime, 500 kg payload.

ECART 9 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. A 1,200 W AC drive motor lets it climb 8% slopes while carrying 500 kg (700 kg maximum).\nPer its datasheet it measures 1,630 x 600 x 350 mm, weighs 265 kg without batteries and carries 500 kg nominal (700 kg maximum) on lift platform 1,020 x 510 mm, 100 mm stroke. It uses diamond-layout, bidirectional drive (1 x 1,200 W AC), travels at up to 1.4 m/s and climbs 8% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 10 hours on a LiFePO4 24 V 120 Ah battery with 2.5 h recharge. Safety comes from 2 Sick S300 (PLd) laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 500 kg
maximum 700 kg
Equipment: lift platform 1,020 x 510 mm, 100 mm stroke
Size 1,630 x 600 x 350 mm
265 kg without batteries
Drive: diamond-layout, bidirectional drive (1 x 1,200 W AC)
max speed 1.4 m/s
slopes up to 8%
Battery: LiFePO4 24 V 120 Ah
about 10 h autonomy, 2.5 h recharge
Safety: 2 Sick S300 (PLd) laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller
Painted composite and stainless steel shell
Climbs slopes up to 8%
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	265 kg
Dimensions	L 1.63 m × W 600 mm × H 350 mm
Payload	500 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	600 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	265 kg
Dimensions	L 1.63 m × W 600 mm × H 350 mm
Payload	500 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	600 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the ECART 9?

Who makes the ECART 9?

The ECART 9 is made by Oppent, a robotics company based in Italy.

How much does the ECART 9 cost?

Oppent has not publicly announced pricing for the ECART 9. You can enquire through RobotAIGeek for current pricing.

What is the ECART 9 used for?

The ECART 9 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in healthcare, warehouse & logistics, and manufacturing settings.
