ECART 1

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Healthcare Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent ECART 1 autonomous mobile robot

DESCRIPTION

ECART 1 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 220 kg, 600 min runtime, 500 kg payload.

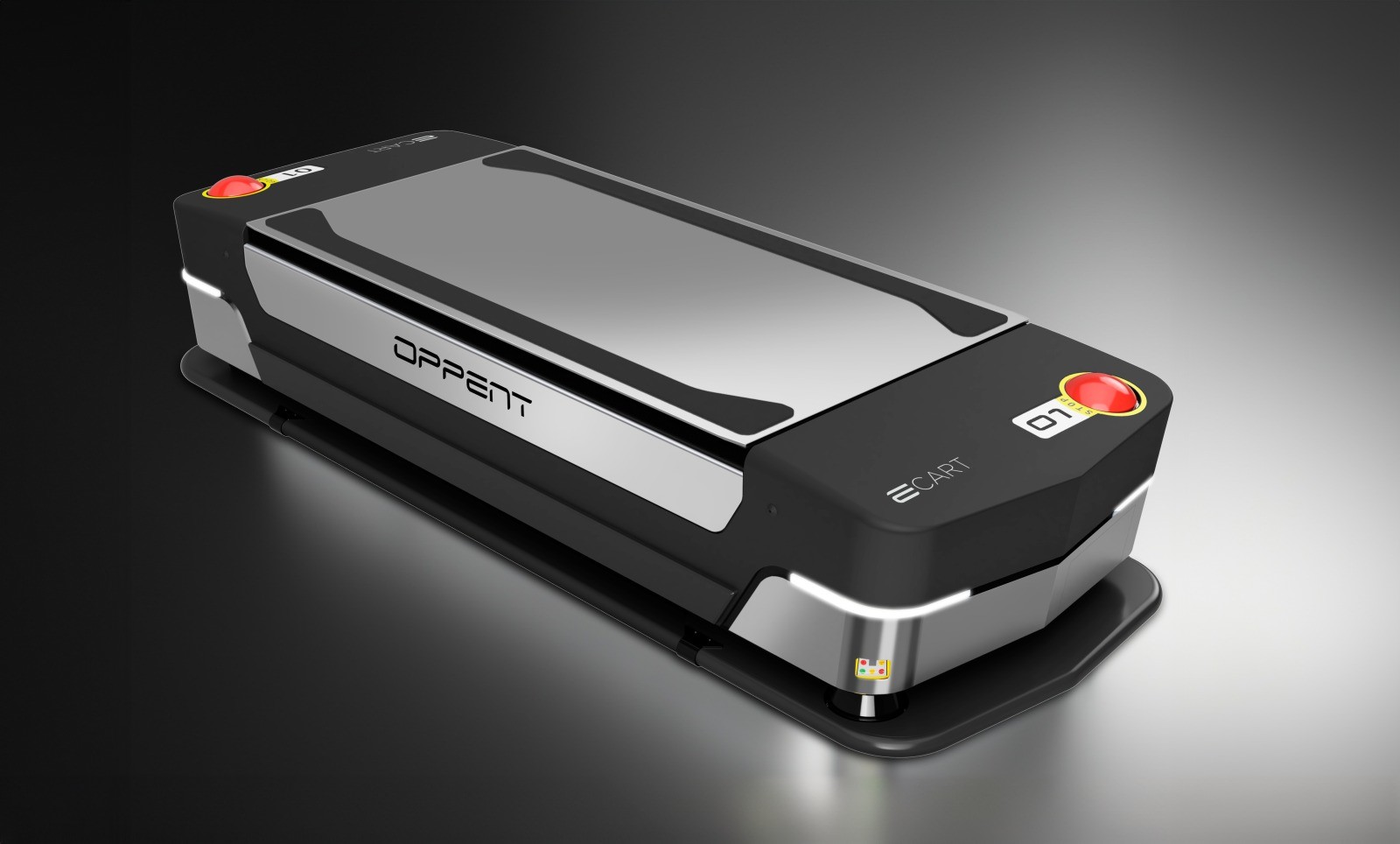

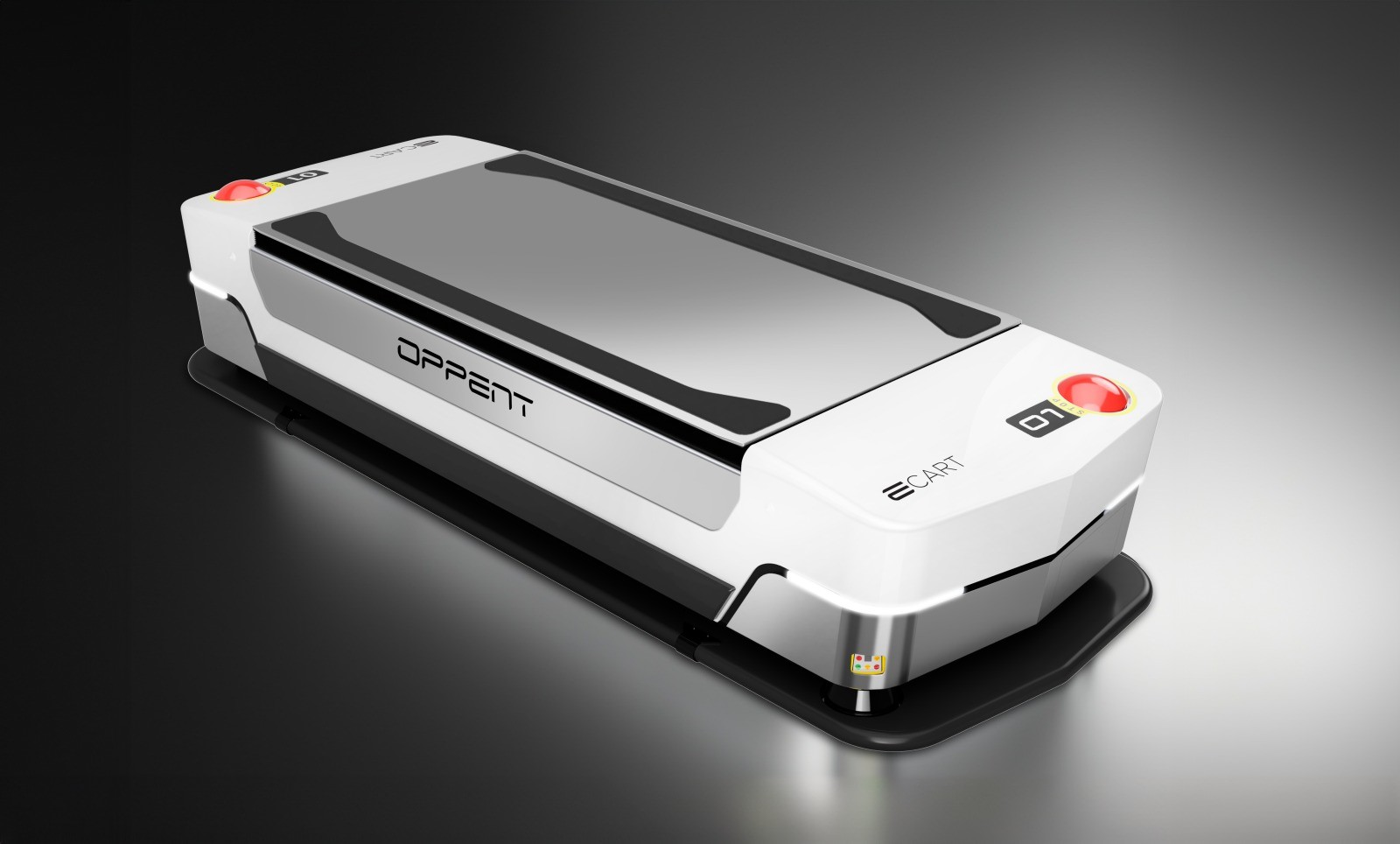

ECART 1 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. A slim 600 mm-wide body with a carbon-and-Kevlar shell lets it slip under hospital carts and trolleys, lift them on its platform and carry up to 500 kg (700 kg for occasional loads).\nPer its datasheet it measures 1,660 x 600 x 350 mm, weighs 220 kg without batteries and carries 500 kg nominal (700 kg maximum) on lift platform 1,020 x 510 mm, 100 mm stroke. It uses diamond-layout, bidirectional drive (1 x 700 W), travels at up to 1.4 m/s and climbs 5% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 10 hours on a LiFePO4 24 V 120 Ah (LeadGel 24 V 140 Ah or PureLead 24 V 120 Ah options) battery with 3 h recharge. Safety comes from 2 Sick S300 laser scanners, front/rear sensitive edges, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 500 kg
maximum 700 kg
Equipment: lift platform 1,020 x 510 mm, 100 mm stroke
Size 1,660 x 600 x 350 mm
220 kg without batteries
Drive: diamond-layout, bidirectional drive (1 x 700 W)
max speed 1.4 m/s
slopes up to 5%
Battery: LiFePO4 24 V 120 Ah (LeadGel 24 V 140 Ah or PureLead 24 V 120 Ah options)
about 10 h autonomy, 3 h recharge
Safety: 2 Sick S300 laser scanners, front/rear sensitive edges, 2 e-stops, Sick Flexi safety controller
Carbon and Kevlar shell
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Physical
Weight	220 kg
Dimensions	L 1.66 m × W 600 mm × H 350 mm
Payload	500 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	600 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Physical
Weight	220 kg
Dimensions	L 1.66 m × W 600 mm × H 350 mm
Payload	500 kg
Mobility
Movement Type	Wheeled
Speed	5.04 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	600 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the ECART 1?

Who makes the ECART 1?

The ECART 1 is made by Oppent, a robotics company based in Italy.

How much does the ECART 1 cost?

Oppent has not publicly announced pricing for the ECART 1. You can enquire through RobotAIGeek for current pricing.

What is the ECART 1 used for?

The ECART 1 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in healthcare, warehouse & logistics, and manufacturing settings.
