DESCRIPTION
DTD10000 is an Industrial-Robot from Invio Automation. It is built for Intralogistics, Material-Handling, Transport. Key figures: 544 kg, 4536 kg payload.

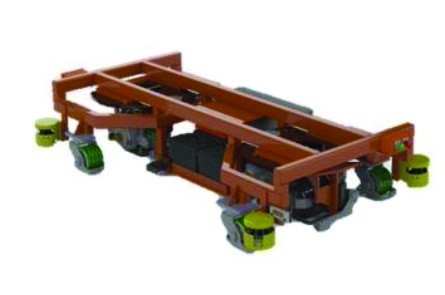

DTD10000 is an Invio Automation heavy-duty AGV for large and bulky loads, favoured in rugged industrial plants where moving heavy products by fork truck or tugger is dangerous and inefficient. It carries or tows 10,000 lb (4,536 kg) and Invio lists it in production at Bobcat, John Deere, Peterbilt and First Solar. The 2,032 x 1,270 x 483 mm vehicle weighs 544 kg, moves forward, in reverse or rotates at up to 0.76 m/s, and runs a 24 V DC, 450 W drive from a 124 Ah battery with 40 A on-board plug-in and automatic charging; floor-style IntelliChargers support charging within the process. All Invio standard platforms use BlueBotics natural-feature LIDAR navigation (or magnetic tape / in-floor bar guidance), safety-rated Keyence scanners with zone programming, Allen-Bradley PLC or microprocessor control with a Proface HMI and +/-13 mm positional accuracy, and take attachments such as top-deck robots, load frames, trunnions, roller conveyors and scissor lifts.
FEATURES
- On-deck load 10,000 lb (4,536 kg)
- towing load 10,000 lb (4,536 kg)
- 2,032 x 1,270 x 483 mm
- 544 kg
- Forward / reverse / rotate
- 48 in minimum turn radius
- Max. speed 0.76 m/s (150 ft/min)
- 24 V DC drive, 450 W
- 124 Ah battery
- IntelliCharger in-process charging
- 40 A automatic
- BlueBotics natural-feature navigation
- magnetic tape or in-floor bar guidance as options
- Positional accuracy +/-0.5 in (13 mm)
- Safety-rated Keyence laser scanners with zone programming
- Allen-Bradley CompactLogix PLC or microprocessor control
- Proface HMI, control pendant
- Radio (900 MHz / 2.4 GHz), Wi-Fi (5 GHz) or UWB
- cart-to-cart RF or Master Control Panel
- Integrates with Ignition, FactoryTalk and ThingWorx
- Attachments: top-deck robots, load frames, 360-degree trunnions, powered roller conveyors, scissor lifts
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 544 kg |
|---|---|
| Dimensions | L 2.03 m × W 1.27 m × H 483 mm |
| Payload | 4536 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.74 km/h |
| Environment | Manufacturing assembly lines and plant floors (indoor, 7-35 C, 25-95 % RH non-condensing) |
| Power | |
| Battery Life | 124 Ah |
| Charging Type | Automatic charging 40 A (higher available) incl. IntelliCharger; on-board plug-in 40 A |
| Sensing & Compute | |
| Sensors | Keyence safety laser scanner, BlueBotics natural-feature navigation LIDAR |
| Connectivity | Radio 900 MHz / 2.4 GHz, Wi-Fi 5 GHz, UWB |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 544 kg |
|---|---|
| Dimensions | L 2.03 m × W 1.27 m × H 483 mm |
| Payload | 4536 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.74 km/h |
| Environment | Manufacturing assembly lines and plant floors (indoor, 7-35 C, 25-95 % RH non-condensing) |
| Power | |
| Battery Life | 124 Ah |
| Charging Type | Automatic charging 40 A (higher available) incl. IntelliCharger; on-board plug-in 40 A |
| Sensing & Compute | |
| Sensors | Keyence safety laser scanner, BlueBotics natural-feature navigation LIDAR |
| Connectivity | Radio 900 MHz / 2.4 GHz, Wi-Fi 5 GHz, UWB |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DTD10000?
DTD10000 is an Invio Automation heavy-duty AGV for large and bulky loads, favoured in rugged industrial plants where moving heavy products by fork truck or tugger is dangerous and inefficient. It carries or tows 10,000 lb (4,536 kg) and Invio lists it in production at Bobcat, John Deere, Peterbilt and First Solar.
Who makes the DTD10000?
The DTD10000 is made by Invio Automation, a robotics company based in United States.
How much does the DTD10000 cost?
Invio Automation has not publicly announced pricing for the DTD10000. You can enquire through RobotAIGeek for current pricing.
What is the DTD10000 used for?
The DTD10000 is designed for intralogistics, material-handling, transport, and automated assembly-line conveyance and lineside delivery. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the DTD10000?
The DTD10000 has a payload capacity of 4,536 kg.
How much does the DTD10000 weigh?
The DTD10000 weighs 544 kg.
How fast is the DTD10000?
The DTD10000 can move at speeds of up to 2.74 km/h.
