CX35

MAXAGV

Industrial-Robot Sweden

SwedenReleased

★Not rated yet

Compare

Sources:

maxagv.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

MAXAGV CX35 Narrow Passage AGV

DESCRIPTION

CX35 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 3000 kg payload.

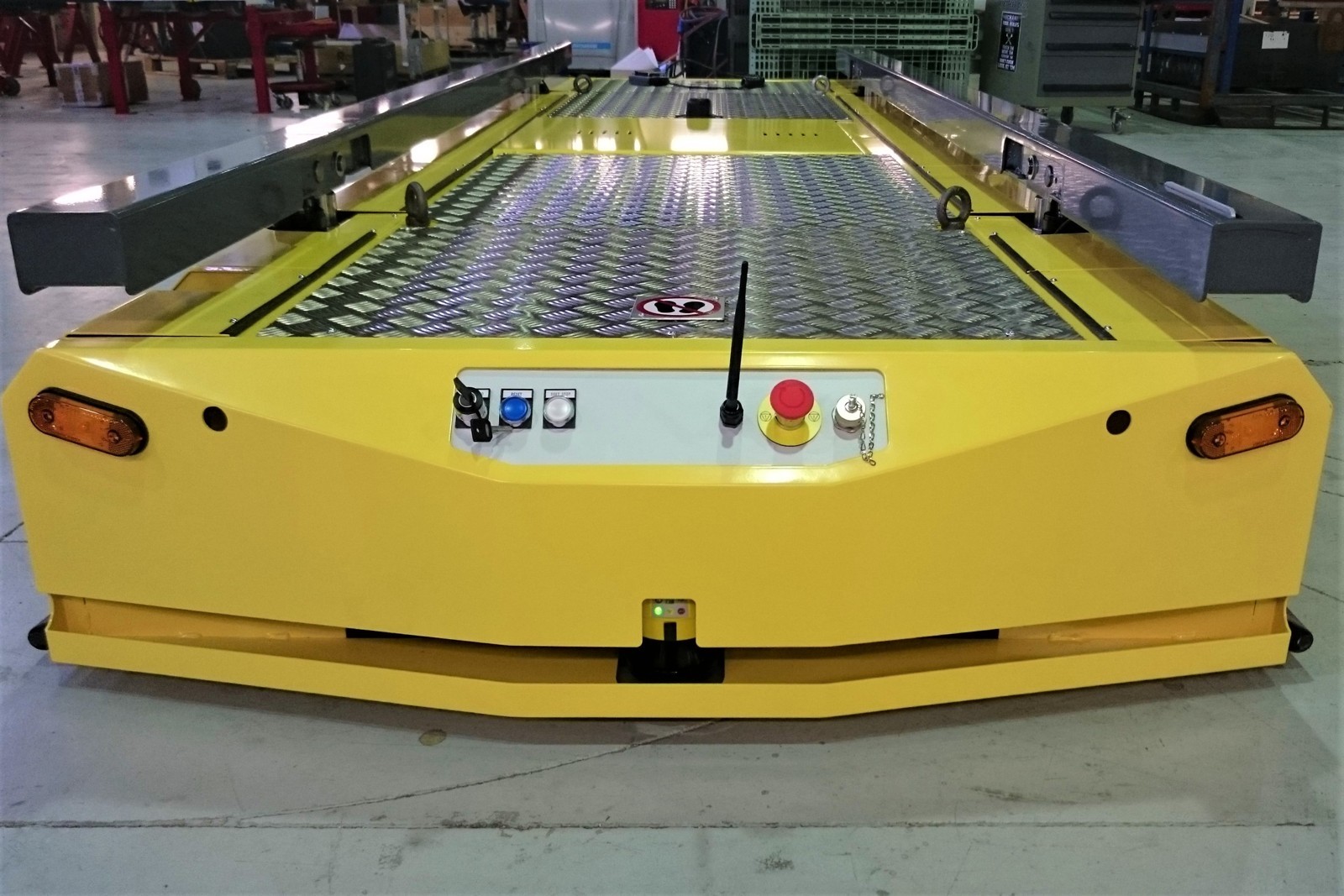

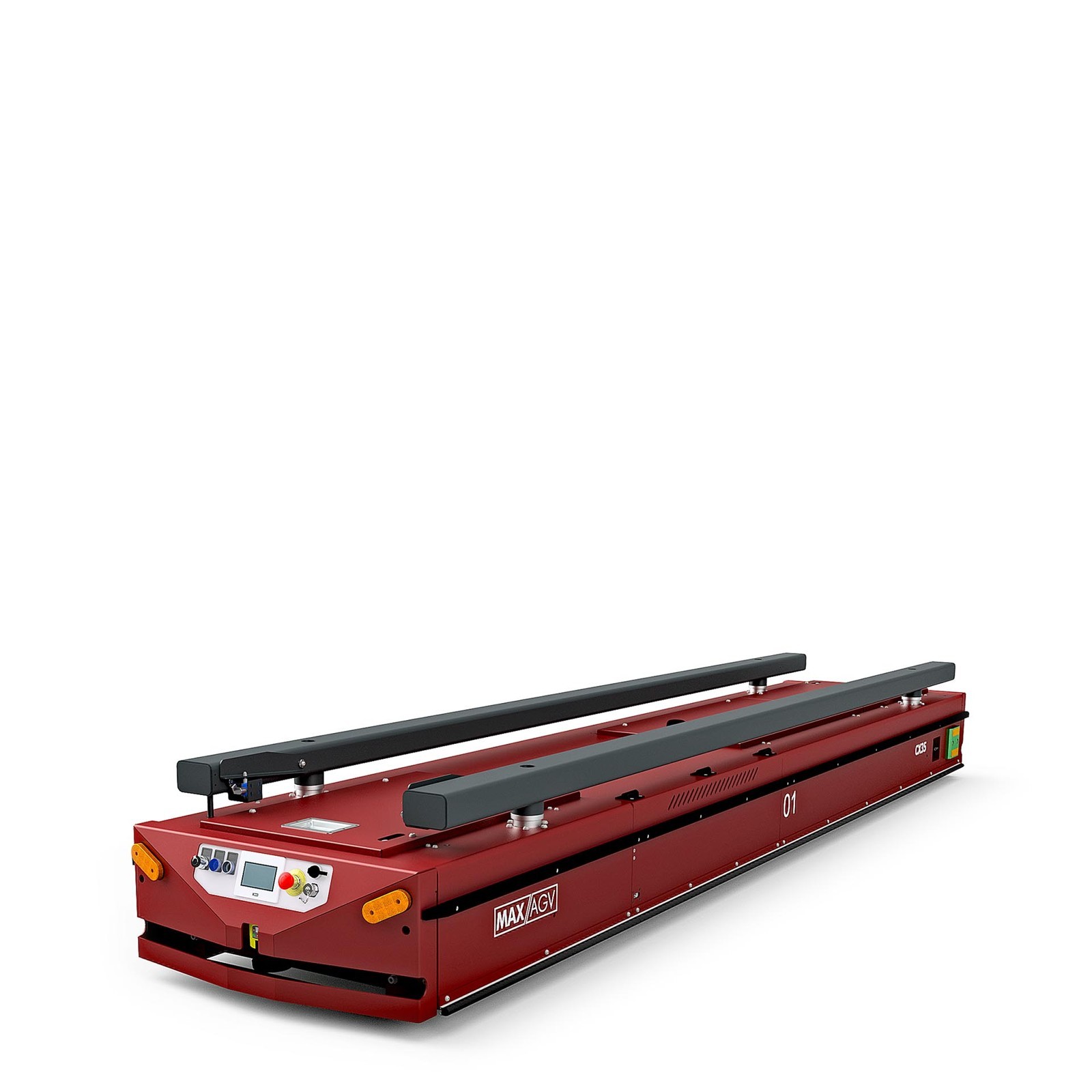

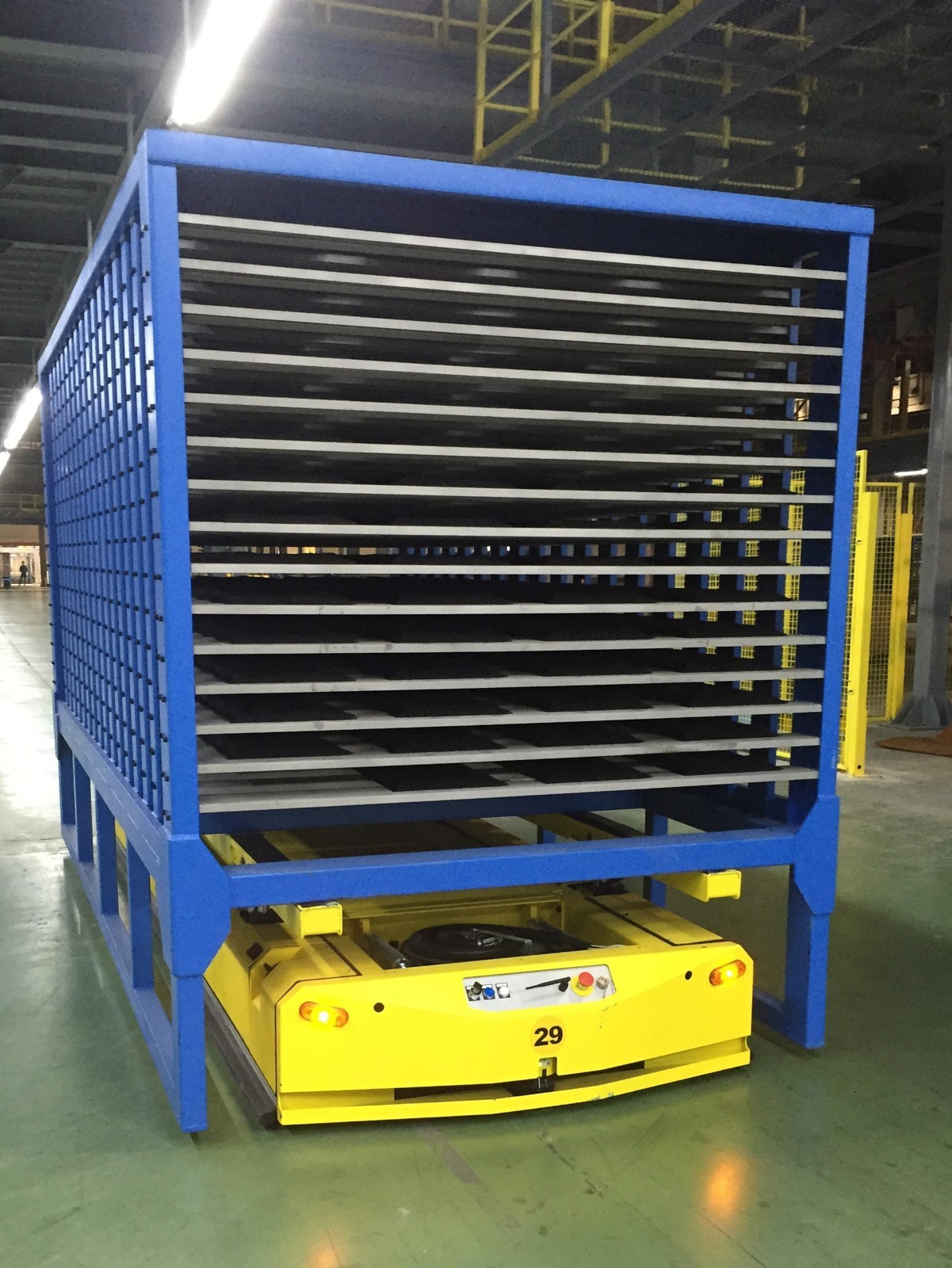

The CX35 Narrow Passage is a shuttle carrier that drives underneath its load, lifts it and moves it between industrial processes or the warehouse. A dual drive, dual steer (DDDS) layout lets it carry heavy loads of up to 3,000 kg through tight corners.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.

FEATURES

Under-ride lifting shuttle for containers, stillages and skids
Dual Drive-Dual Steer (DDDS) for tight corners
Unit load: Container - Stillage - Skid
Maximum weight: 3000 kg
Transfer/lift height: 400 - 900 mm
Battery: Wet lead-acid, gel or lithium-ion
Charging: Opportunity charging, fast charge or battery exchange
Options: barcode scanner - RFID - DeZone - Blue Point
Laser navigation as standard
magnetic, optical or wire guidance where required
Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
ISO 3691-4:2020
Sonix on-board controller
managed by the Max software platform

TECHNICAL SPECIFICATIONS

Verified

Physical
Payload	3000 kg
Mobility
Movement Type	Wheeled
Environment	Indoor production, warehouses and distribution centres
Sensing & Compute
Sensors	safety laser scanners, navigation laser, bumpers and safety edges
Connectivity	Max software platform (fleet control)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Payload	3000 kg
Mobility
Movement Type	Wheeled
Environment	Indoor production, warehouses and distribution centres
Sensing & Compute
Sensors	safety laser scanners, navigation laser, bumpers and safety edges
Connectivity	Max software platform (fleet control)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the CX35?

The CX35 Narrow Passage is a shuttle carrier that drives underneath its load, lifts it and moves it between industrial processes or the warehouse.

Who makes the CX35?

The CX35 is made by MAXAGV, a robotics company based in Sweden.

How much does the CX35 cost?

MAXAGV has not publicly announced pricing for the CX35. You can enquire through RobotAIGeek for current pricing.

What is the CX35 used for?

The CX35 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
