DESCRIPTION
CX10 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 500 kg payload.

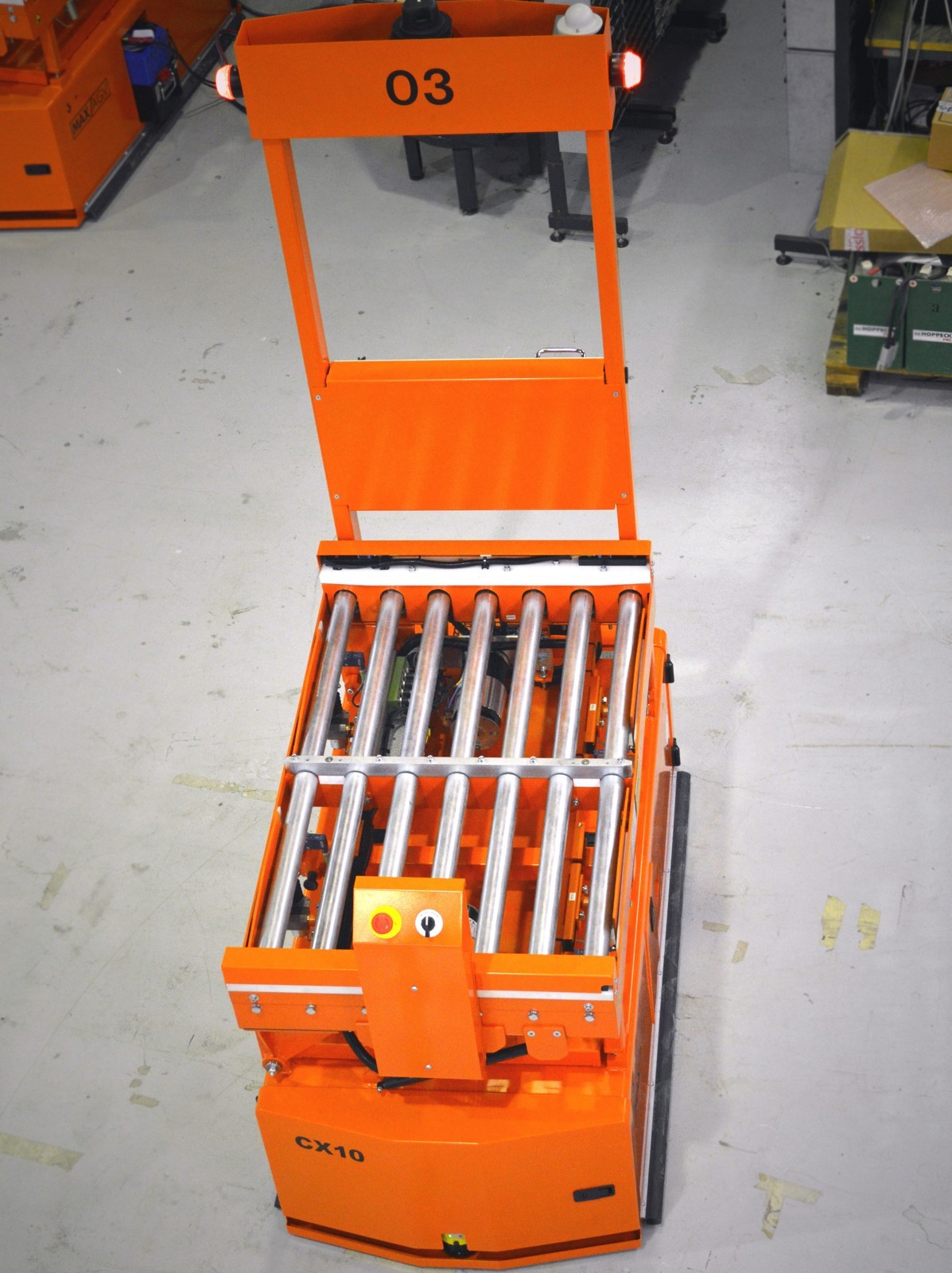

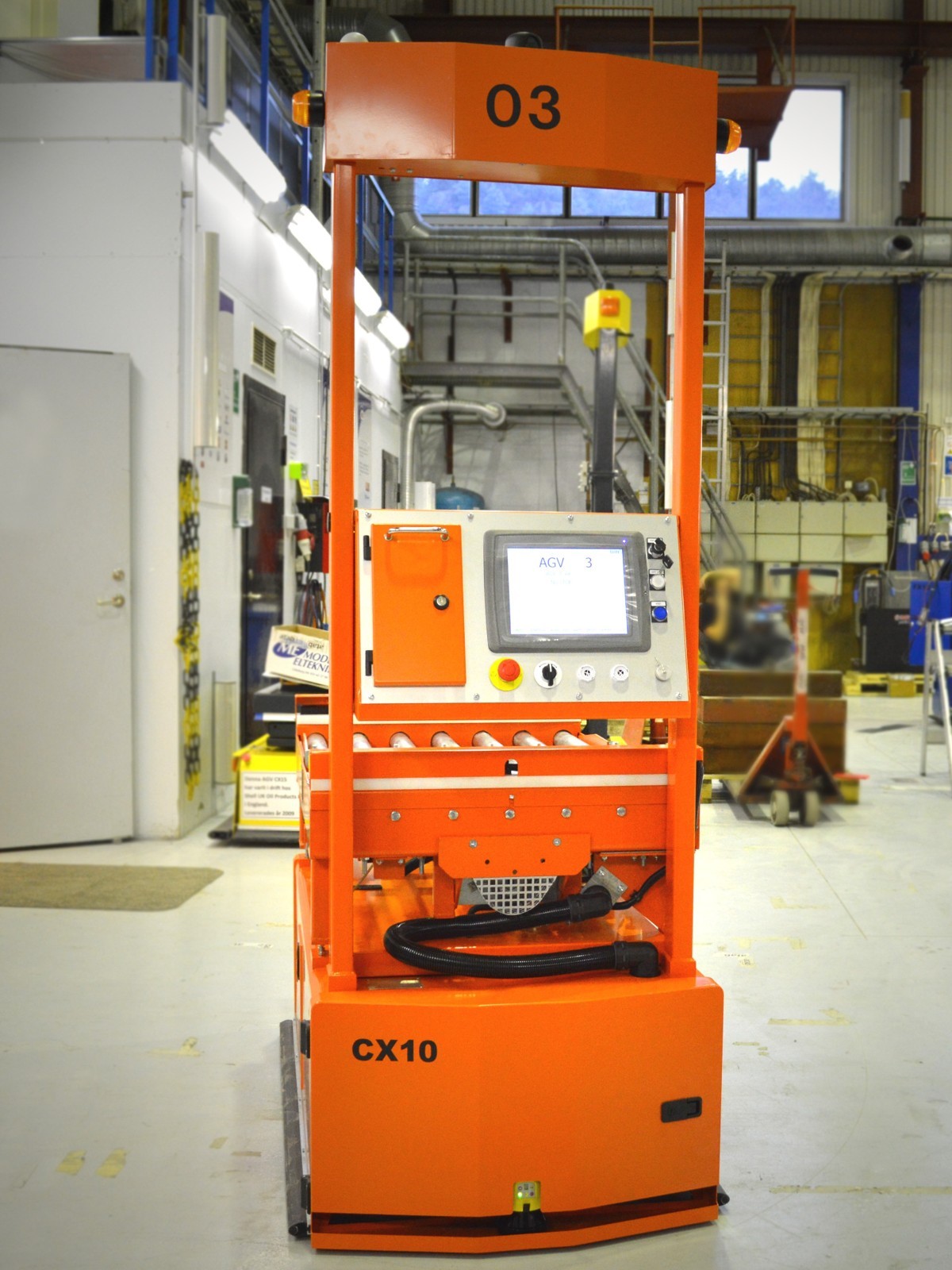

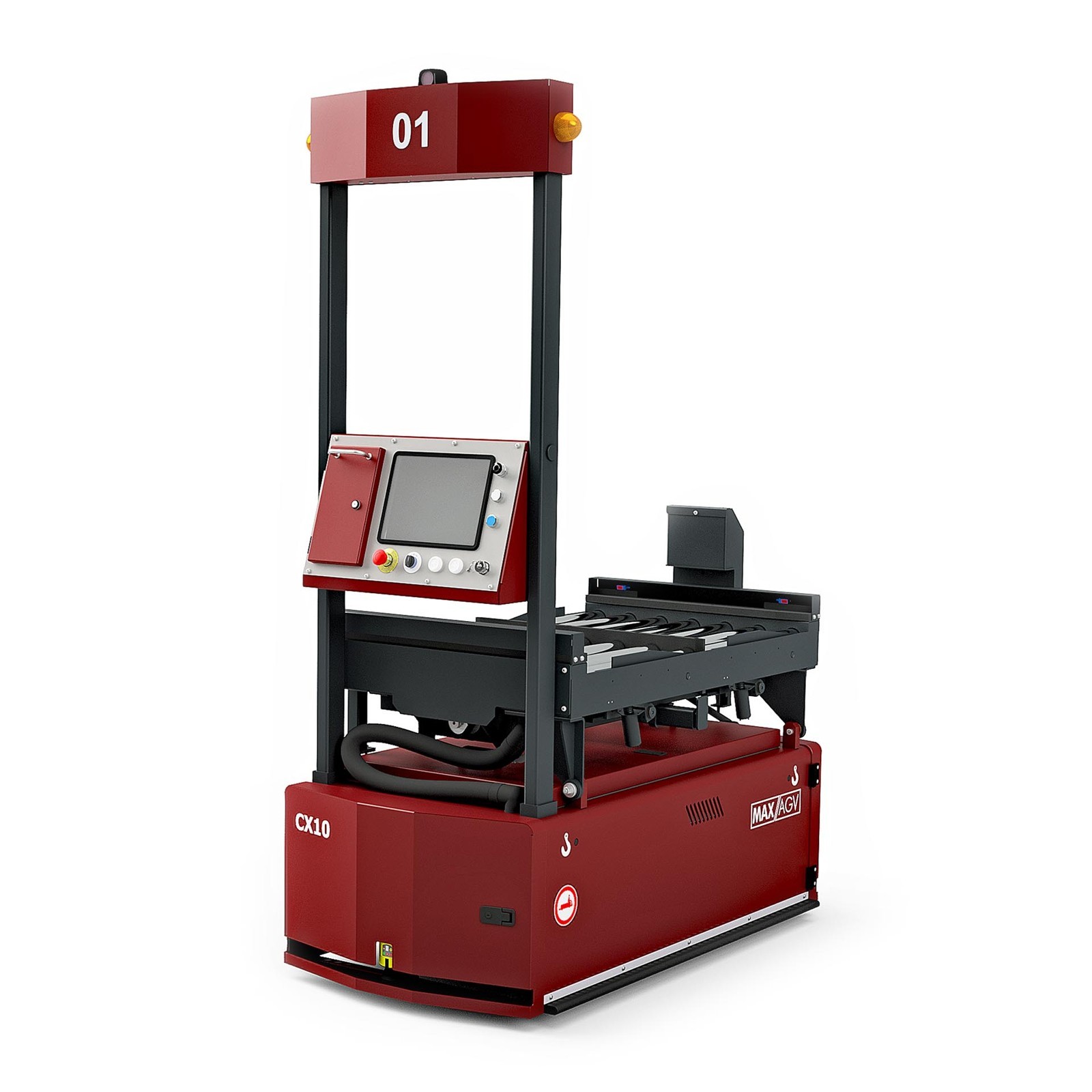

The CX10 Twin Tote Carrier is a small-load AGV built to carry boxes and totes on a twin roller bed. Each of its two conveyors takes up to 250 kg, so it moves two loads at once and transfers them smoothly to and from fixed conveyors at a transfer height of 700 mm.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Twin roller-conveyor bed for boxes and totes
- Two loads of up to 250 kg each
- Transfers to and from fixed conveyors
- Unit load: Tote - Carton - Box
- Maximum weight: 2 x 250 kg
- Transfer/lift height: 700 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CX10?
The CX10 Twin Tote Carrier is a small-load AGV built to carry boxes and totes on a twin roller bed. Each of its two conveyors takes up to 250 kg, so it moves two loads at once and transfers them smoothly to and from fixed conveyors at a transfer height of 700 mm.\nLike all MAXAGV vehicles it navigates mainly by laser,…
Who makes the CX10?
The CX10 is made by MAXAGV, a robotics company based in Sweden.
How much does the CX10 cost?
MAXAGV has not publicly announced pricing for the CX10. You can enquire through RobotAIGeek for current pricing.
What is the CX10 used for?
The CX10 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the CX10?
The CX10 has a payload capacity of 500 kg.
