DESCRIPTION
C060F CE is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 150 kg, 480 min runtime, 600 kg payload.

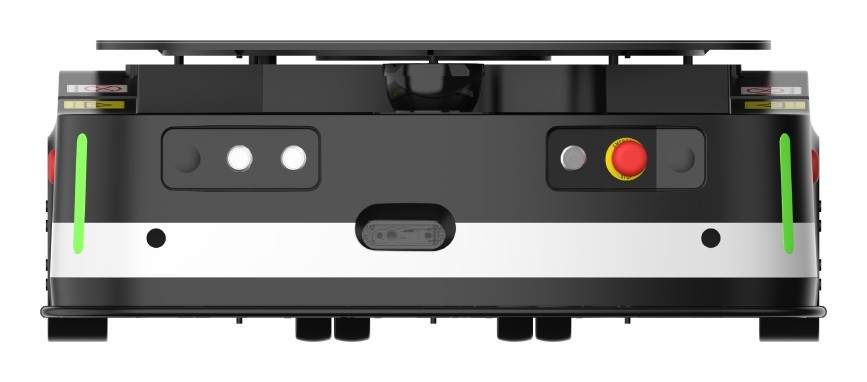

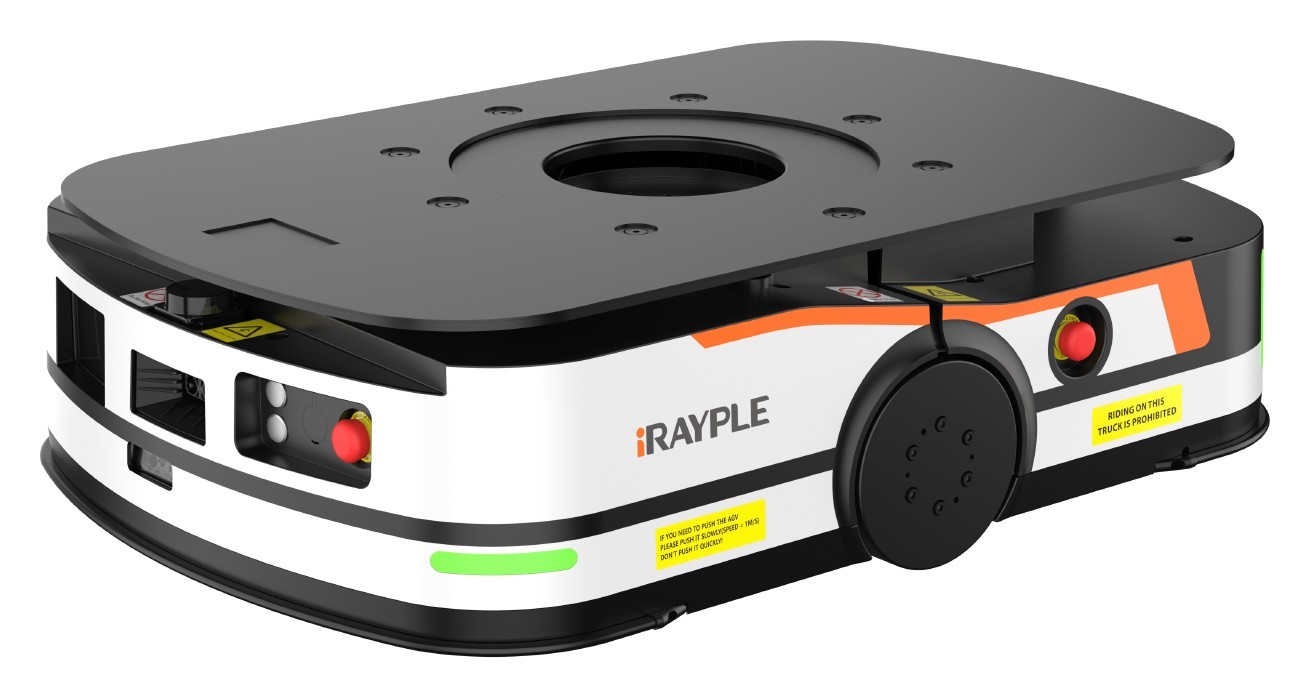

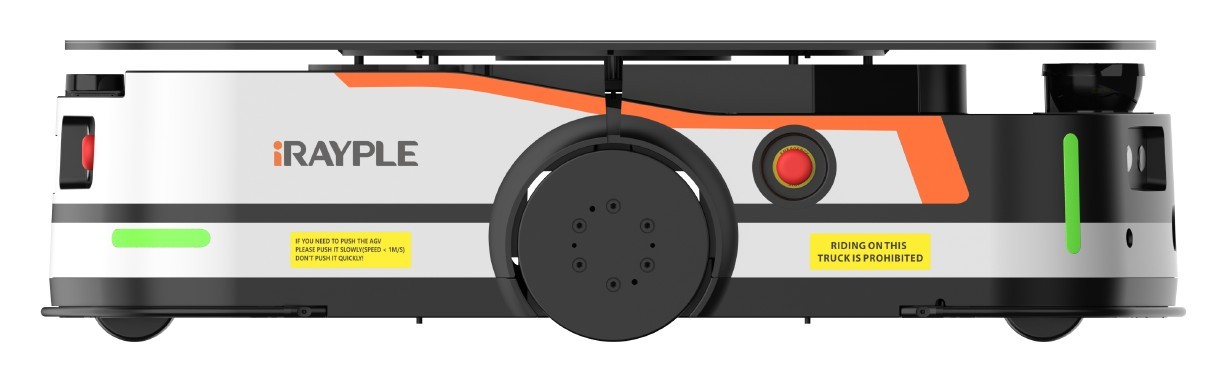

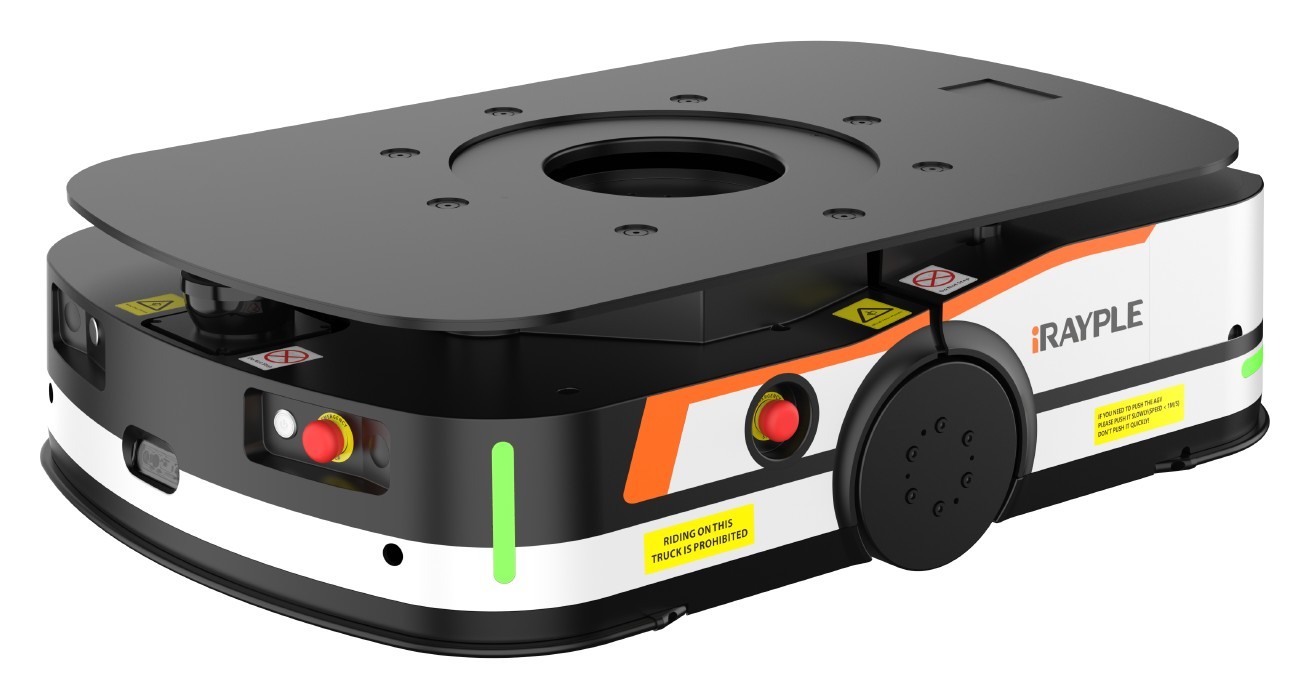

C060F CE is the CE-marked build of iRAYPLE's low-profile 600 kg under-ride lifting AMR. Front and rear TOF cameras (72 x 50 degree field of view) give 3D obstacle avoidance, and a battery swap takes about 90 seconds. It navigates by DM code, texture marker, laser(optional), reaches 1.6 m/s empty and 1.0 m/s loaded, stops within ±10 mm and runs 8.0 h per charge (charging: manual/auto). It talks to iRAYPLE's robot control and scheduling system over WiFi.
FEATURES
- Rated load 600 kg
- machine weight 150 kg
- 960 mm × 650 mm × 250 mm
- Max. speed 1.6 m/s empty, 1.0 m/s loaded
- Navigation: DM code, texture marker, laser(optional)
- drive: Dual-Wheel Differential drive
- Lifting Process Distance: 60 mm
- Lifting Pallet Dimensions: 900 mm×560 mm
- Rotation Diameter: 1000 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3°(5%)
- Obstacle Crossing Height: 10 mm
- Trench Crossing Ability: 30 mm
- Obstacle Avoidance Method: Laser, TOF
- Charging Mode: Manual/Auto
- Communication Mode: WiFi
- Certifications: CE
- Operating time 8.0 h
- charging 1.5 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 960 mm × W 650 mm × H 250 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | WiFi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 960 mm × W 650 mm × H 250 mm |
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | WiFi |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the C060F CE?
C060F CE is the CE-marked build of iRAYPLE's low-profile 600 kg under-ride lifting AMR. Front and rear TOF cameras (72 x 50 degree field of view) give 3D obstacle avoidance, and a battery swap takes about 90 seconds.
Who makes the C060F CE?
The C060F CE is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the C060F CE cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the C060F CE. You can enquire through RobotAIGeek for current pricing.
What is the C060F CE used for?
The C060F CE is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the C060F CE?
The C060F CE has a payload capacity of 600 kg.
How much does the C060F CE weigh?
The C060F CE weighs 150 kg.
How fast is the C060F CE?
The C060F CE can move at speeds of up to 5.76 km/h.
What is the battery life of the C060F CE?
The C060F CE runs for about 480 minutes on a charge.
