aunav.NEXT

EM&E Group

Military

SpainReleased

★Not rated yet

Compare

Sources:

eme-es.com

Industries:

Defence Government Security & Patrol

Uses:

Security Inspection Remote

Price:

Not announced

Model:

aunav.NEXT heavy dual-arm EOD/IED/CBRN and VBIED robot (aunav.NEXT HD variant)

DESCRIPTION

aunav.NEXT is a Military from EM&E Group. It is built for Security, Inspection, Remote. Key figures: 300 min runtime, 250 kg payload, 2070 mm reach, 8 degrees of freedom.

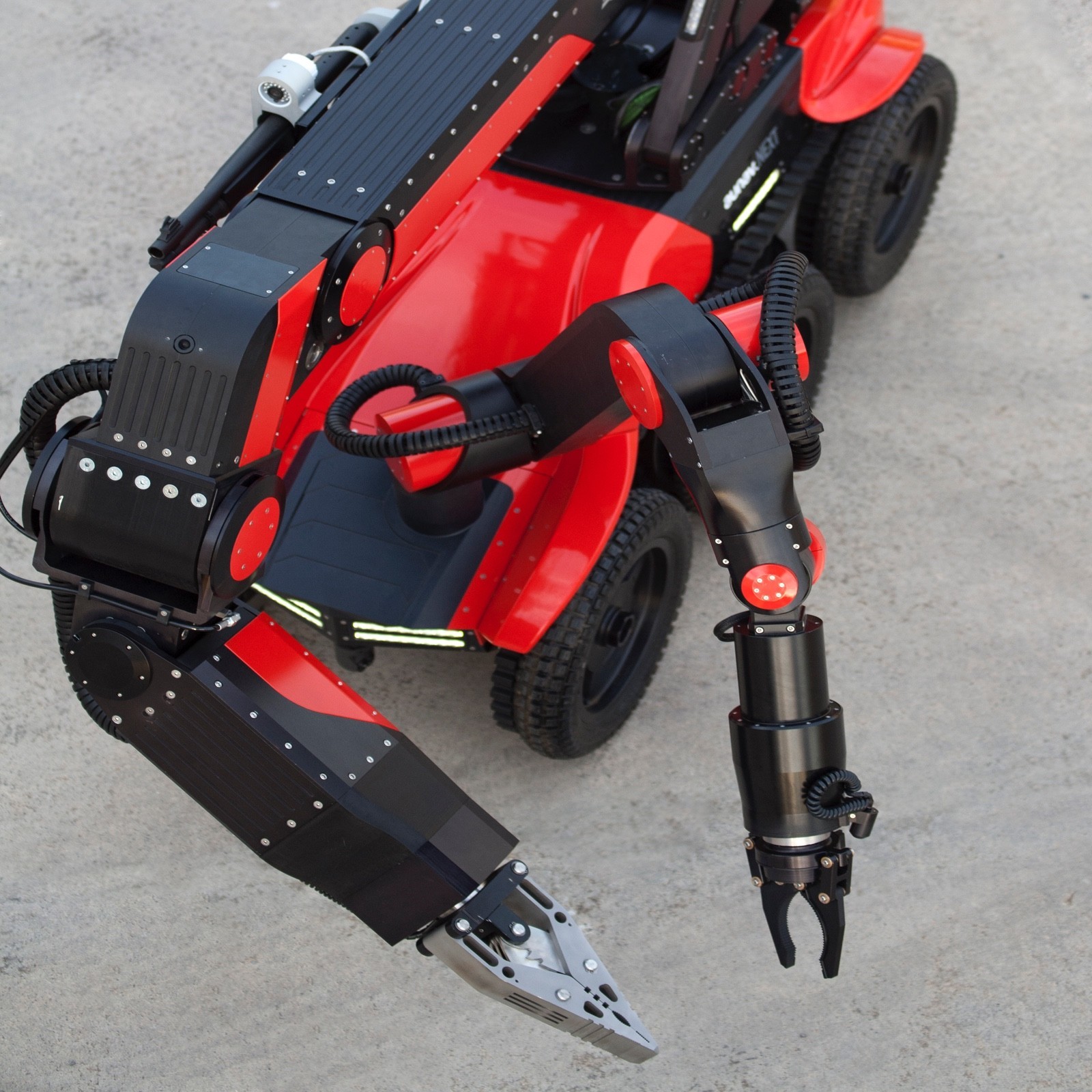

The aunav.NEXT is a heavy, remotely operated EOD robot for IED, CBRN and vehicle-borne IED (VBIED) missions, designed with bomb-disposal units and, the maker says, the only robot of its kind with Common Criteria EAL2+ security certification. Two synchronised arms that each rotate 360 degrees work together: a hydraulic main arm with 8 degrees of freedom lifts up to 250 kg and reaches 3,100 mm high and 2,070 mm forward, while an electric secondary arm (the same arm as on the aunav.NEO, removable in seconds) has 7 degrees of freedom and lifts 75 kg. The manipulator can get into a vehicle by deforming the bodywork or going through the windows, without tools or shots. A dual drive of six high-grip wheels and tracks moves it at up to 4 km/h and up slopes of more than 90 percent, and semi-autonomous functions let it follow an object, avoid obstacles and retrace its path if communications are lost. The IP65 robot measures 1,553 x 730 x 1,150 mm folded and runs about 5 hours. Operators use a tablet or a two-screen rugged-case control unit with up to 8 video streams and a 3D avatar of the arms, at 700 m to 3 km. Thailand ordered seven aunav.NEXT robots in 2020.

FEATURES

Two synchronised arms rotating 360 degrees with anti-collision between arms and with ground/platform
Main hydraulic arm: 8 DoF, 250 kg lift, 3,100 mm vertical / 2,070 mm horizontal reach, -1,000 mm below ground
Secondary electric arm: 7 DoF, 75 kg lift, 2,586 mm vertical / 1,684 mm horizontal reach
shared with aunav.NEO, detachable
Opens vehicles by deforming bodywork or through windows without tools (VBIED missions)
Dual traction: 6 high-grip wheels plus tracks
slopes over 90%
max 4 km/h
Semi-autonomous: follow-me, obstacle avoidance, return on link loss, 15 m autonomous reverse
GNSS
IP65
Common Criteria EAL2+ (maker claim)
Folded 1,553 x 730 x 1,150 mm (L x W x H)
about 5 h operation
Automatic mast with 2 PTZ IR cameras
up to 9 LED lights
rear tow hooks
OCU: tablet (1 screen) or rugged case (2 screens), PS4-style controller, 8 video streams, COFDM / Bluetooth / fibre optic, 700 m to 3 km
Automatic tools: disruptor, drill, grinder (up to three at once)
X-ray and CBRN options

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 1.55 m × W 730 mm × H 1.15 m
Payload	250 kg
Reach	2.07 m
Mobility
Movement Type	Hybrid
Degrees of Freedom	8
Speed	4 km/h
Environment	Military and police bomb-disposal operations, including vehicle-borne IEDs, on roads, slopes and rough terrain, IP65
Power
Battery Life	300 min
Sensing & Compute
Sensors	2 PTZ IR mast cameras, driving cameras front and rear, gripper cameras, GNSS, optional X-ray system, optional CBRN sensors
Connectivity	COFDM radio, Bluetooth, fibre optic
