DESCRIPTION
AspinaAMR85L is an Industrial-Robot from ASPINA (Shinano Kenshi). It is built for Intralogistics, Material-Handling, Transport. Key figures: 80 kg, 480 min runtime, 85 kg payload.

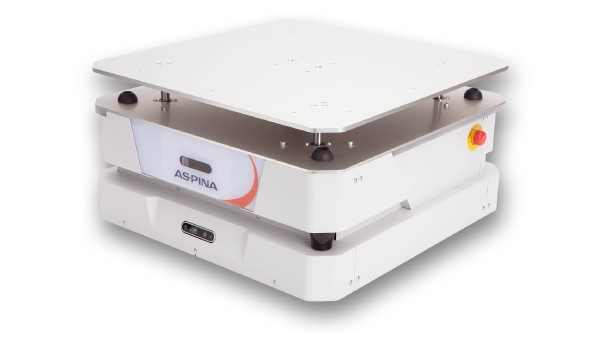

The AspinaAMR85L is the lift version of ASPINA's compact AspinaAMR. It drives under carts or shelves, raises them on its lift and carries them away, automating pick-up as well as transport. It is rated for 85 kg. It shares the 600 mm-wide body, SLAM navigation, map-based programming, QR-code dispatch and PLC/API, elevator and automatic-door integration of the AspinaAMR range. It measures 600 x 600 x 280 mm, or 330 mm high with the lift raised, and weighs up to 80 kg. It runs at up to 3.6 km/h in 800 mm aisles and climbs 3 degrees. Two 2D LiDARs and a 3D camera detect obstacles, and its LiFePO4 battery gives about 8 hours of running with a 1.5-hour charge.
FEATURES
- Lift-type AMR that picks up carts and shelves automatically
- up to 85 kg
- 600 x 600 x 280 mm (330 mm lifted)
- up to 80 kg (85 kg with auto-charging)
- Obstacle detection: 2D LiDAR front-left and rear-right, front 3D camera
- optional bumpers
- About 8 h runtime
- charges in 1.5 h
- LiFePO4 battery
- Max 3.6 km/h
- 3 deg max slope
- 800 mm minimum aisle (body only)
- stop accuracy +/-50 mm (+/-10 mm with guide option)
- LiFePO4 battery
- 0-40 C indoor only
- 2.4/5 GHz Wi-Fi
- Windows 11 operating app
- PLC/API control
- QR-code dispatch
- elevator and automatic-door integration
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 80 kg |
|---|---|
| Dimensions | L 600 mm × W 600 mm × H 280 mm |
| Payload | 85 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and production sites (0-40 C, 5-85% RH non-condensing, narrow aisles from 800 mm) |
| Actuators | In-wheel BLDC motors; lift unit |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR x2, 3D camera, bumper sensors (option) |
| Connectivity | Wi-Fi 2.4/5 GHz; USB-A; 6-ch I/O; PLC/API |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 80 kg |
|---|---|
| Dimensions | L 600 mm × W 600 mm × H 280 mm |
| Payload | 85 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and production sites (0-40 C, 5-85% RH non-condensing, narrow aisles from 800 mm) |
| Actuators | In-wheel BLDC motors; lift unit |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR x2, 3D camera, bumper sensors (option) |
| Connectivity | Wi-Fi 2.4/5 GHz; USB-A; 6-ch I/O; PLC/API |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AspinaAMR85L?
The AspinaAMR85L is the lift version of ASPINA's compact AspinaAMR. It drives under carts or shelves, raises them on its lift and carries them away, automating pick-up as well as transport. It is rated for 85 kg.
Who makes the AspinaAMR85L?
The AspinaAMR85L is made by ASPINA (Shinano Kenshi), a robotics company based in Japan.
How much does the AspinaAMR85L cost?
ASPINA (Shinano Kenshi) has not publicly announced pricing for the AspinaAMR85L. You can enquire through RobotAIGeek for current pricing.
What is the AspinaAMR85L used for?
The AspinaAMR85L is designed for intralogistics, material-handling, transport, and cart and shelf transport in factories with automatic pick-up. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the AspinaAMR85L?
The AspinaAMR85L has a payload capacity of 85 kg.
How much does the AspinaAMR85L weigh?
The AspinaAMR85L weighs 80 kg.
How fast is the AspinaAMR85L?
The AspinaAMR85L can move at speeds of up to 3.6 km/h.
What is the battery life of the AspinaAMR85L?
The AspinaAMR85L runs for about 480 minutes on a charge.
