DESCRIPTION
Zetha TS-20 is an Industrial-Robot from DF Automation. It is built for Material-Handling, Pallet-Transportation. Key figures: 480 min runtime, 2000 kg payload.

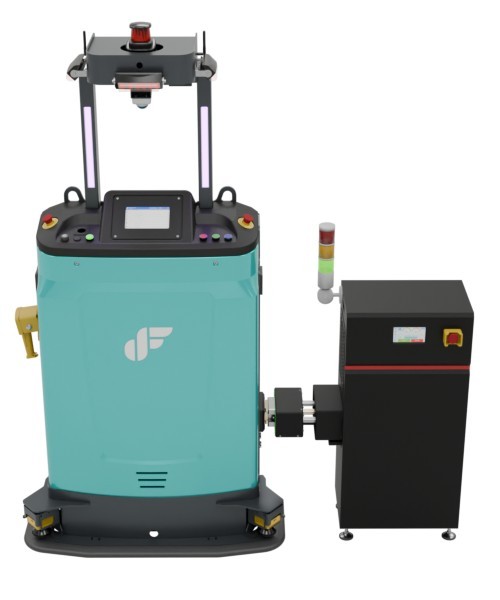

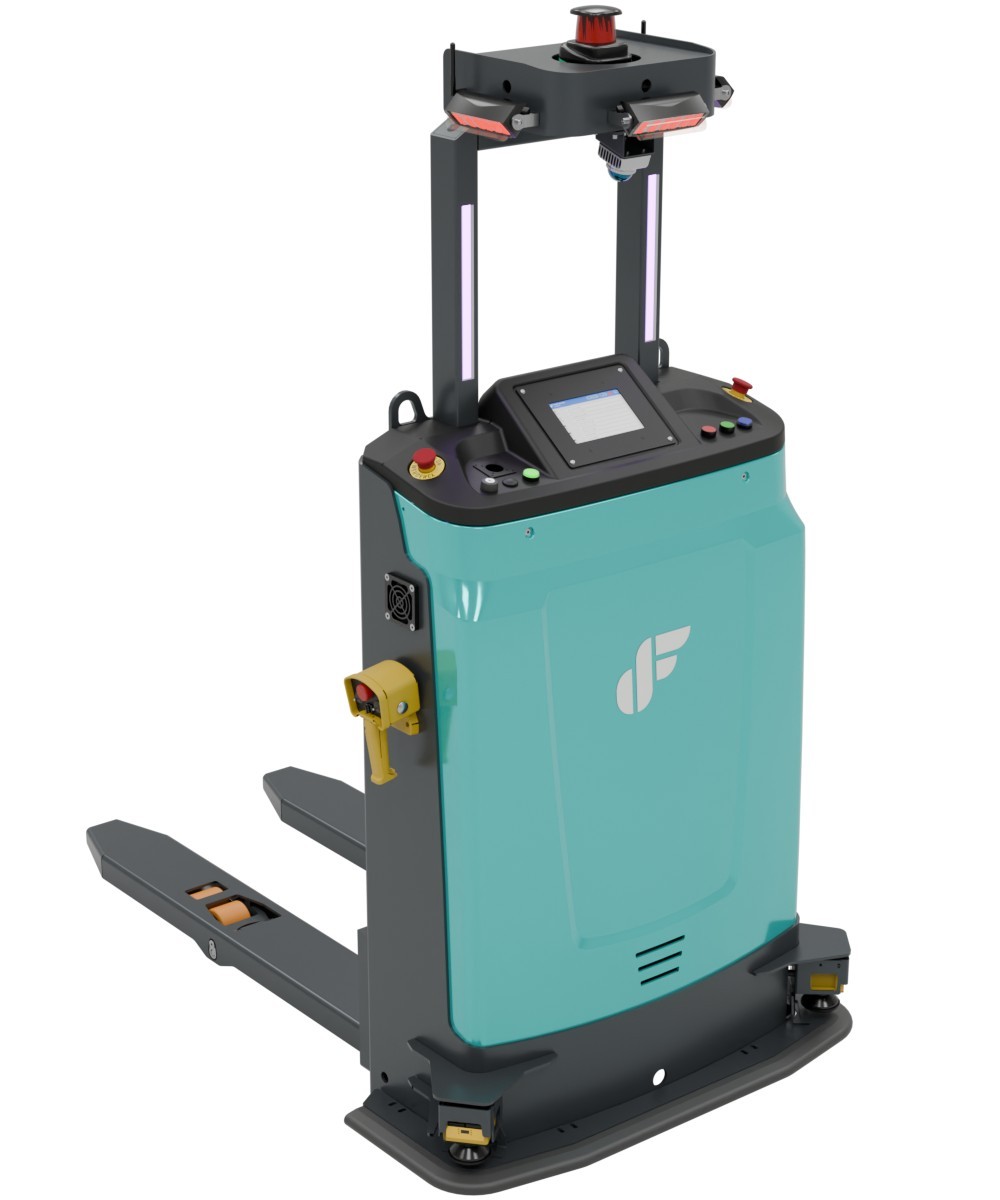

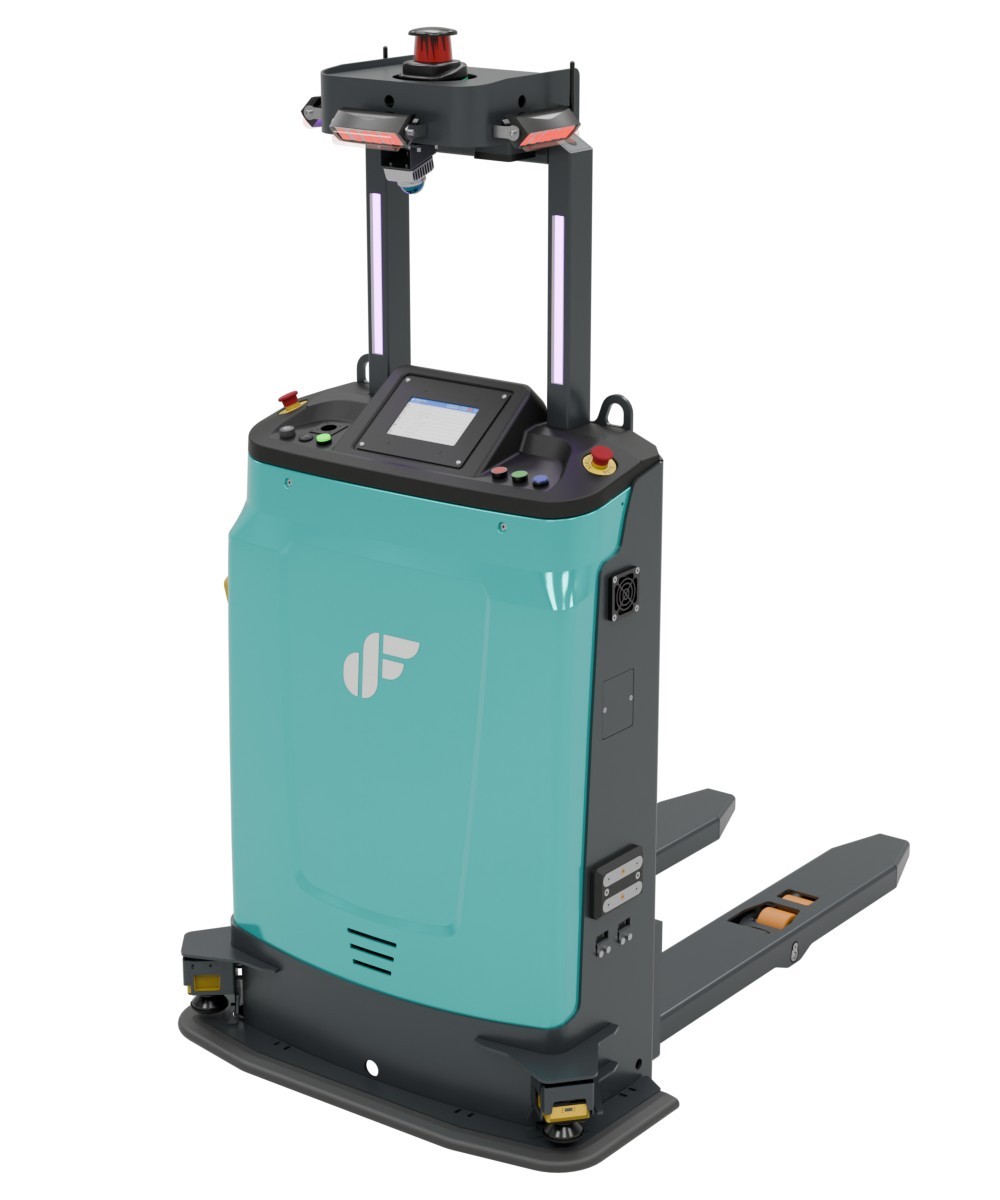

Zetha TS-20 (ZETHA-S-TS-20) is DF Automation & Robotics' 2-tonne trackless pallet AMR, designed to replace manual hand pallet jacks by moving palletised loads floor to floor in manufacturing, warehousing, logistics, textile, automotive and food and beverage sites. It measures 1,683 x 1,022 x 2,000 mm, with 175 mm wide forks 300 mm apart that lift 110 mm, and carries up to 2,000 kg including the pallet. LiDAR natural feature navigation with optional markers guides it without floor tracks, a 3D LiDAR adds hanging-object and hole detection and a 3D camera supports pallet handling. It drives at 1.5 m/s unladen and 1.2 m/s laden on a steering drive, and a 24 V, 150 Ah LiFePO4 battery gives about 8 hours of work with 2-hour charging, automatically or by cable.
FEATURES
- Lifting payload 2,000 kg incl. pallet
- lift height 110 mm
- 1,683 x 1,022 x 2,000 mm
- forks 175 mm wide, 300 mm spacing
- Laser natural-feature navigation
- optional marker
- stopping accuracy +/-10 mm with marker
- 3D LiDAR for hanging-object and hole detection
- 3D camera
- Speed 1.5 m/s unladen, 1.2 m/s laden
- steering drive
- LiFePO4 24 V 150 Ah
- ~8 h running time
- ~2 h charge
- auto or manual charging
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.68 m × W 1.02 m × H 2 m |
|---|---|
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Manufacturing, warehousing, logistics, textile, automotive and F&B sites (indoor) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LiDAR, 3D LiDAR, 3D camera |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.68 m × W 1.02 m × H 2 m |
|---|---|
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Manufacturing, warehousing, logistics, textile, automotive and F&B sites (indoor) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | LiDAR, 3D LiDAR, 3D camera |
| Connectivity | Wi-Fi |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Zetha TS-20?
Zetha TS-20 (ZETHA-S-TS-20) is DF Automation & Robotics' 2-tonne trackless pallet AMR, designed to replace manual hand pallet jacks by moving palletised loads floor to floor in manufacturing, warehousing, logistics, textile, automotive and food and beverage sites.
Who makes the Zetha TS-20?
The Zetha TS-20 is made by DF Automation, a robotics company based in Malaysia.
How much does the Zetha TS-20 cost?
DF Automation has not publicly announced pricing for the Zetha TS-20. You can enquire through RobotAIGeek for current pricing.
What is the Zetha TS-20 used for?
The Zetha TS-20 is designed for material-handling and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Zetha TS-20?
The Zetha TS-20 has a payload capacity of 2,000 kg.
How fast is the Zetha TS-20?
The Zetha TS-20 can move at speeds of up to 5.4 km/h.
What is the battery life of the Zetha TS-20?
The Zetha TS-20 runs for about 480 minutes on a charge.
