DESCRIPTION
Zamma TS Standard L20 is an Industrial-Robot from DF Automation. It is built for Lifting, Material-Handling, Pallet-Transportation. Key figures: 1670 kg, 300 min runtime, 2000 kg payload.

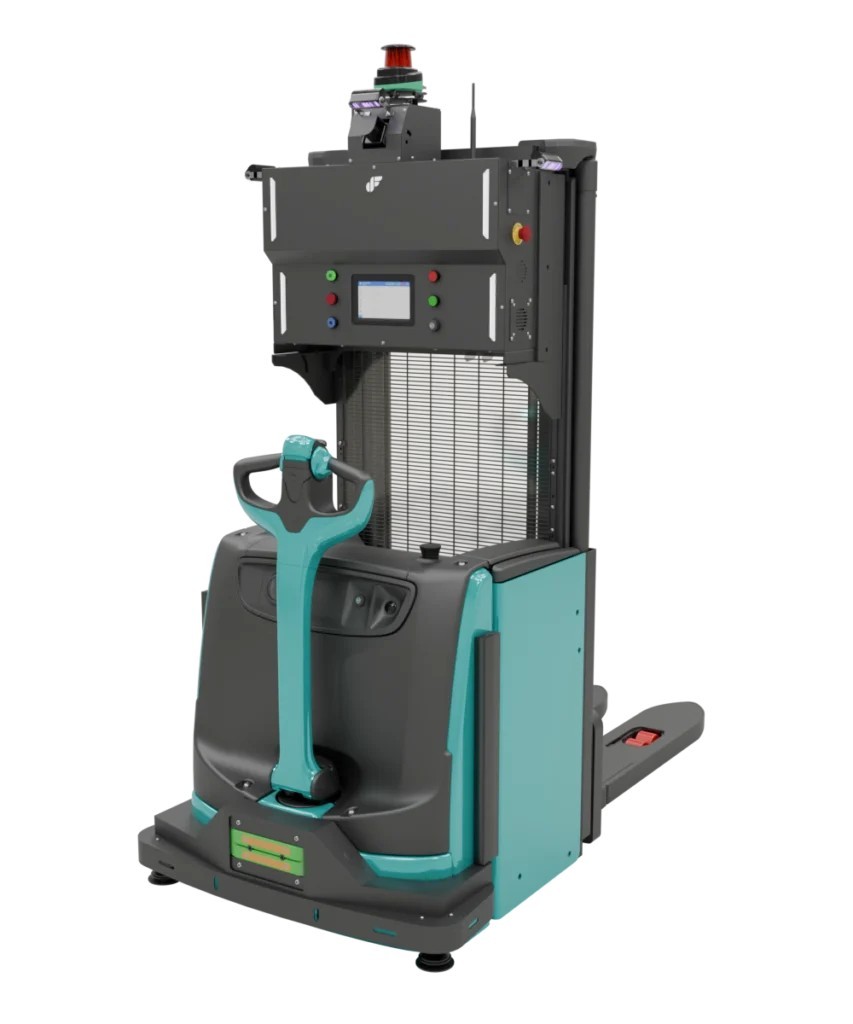

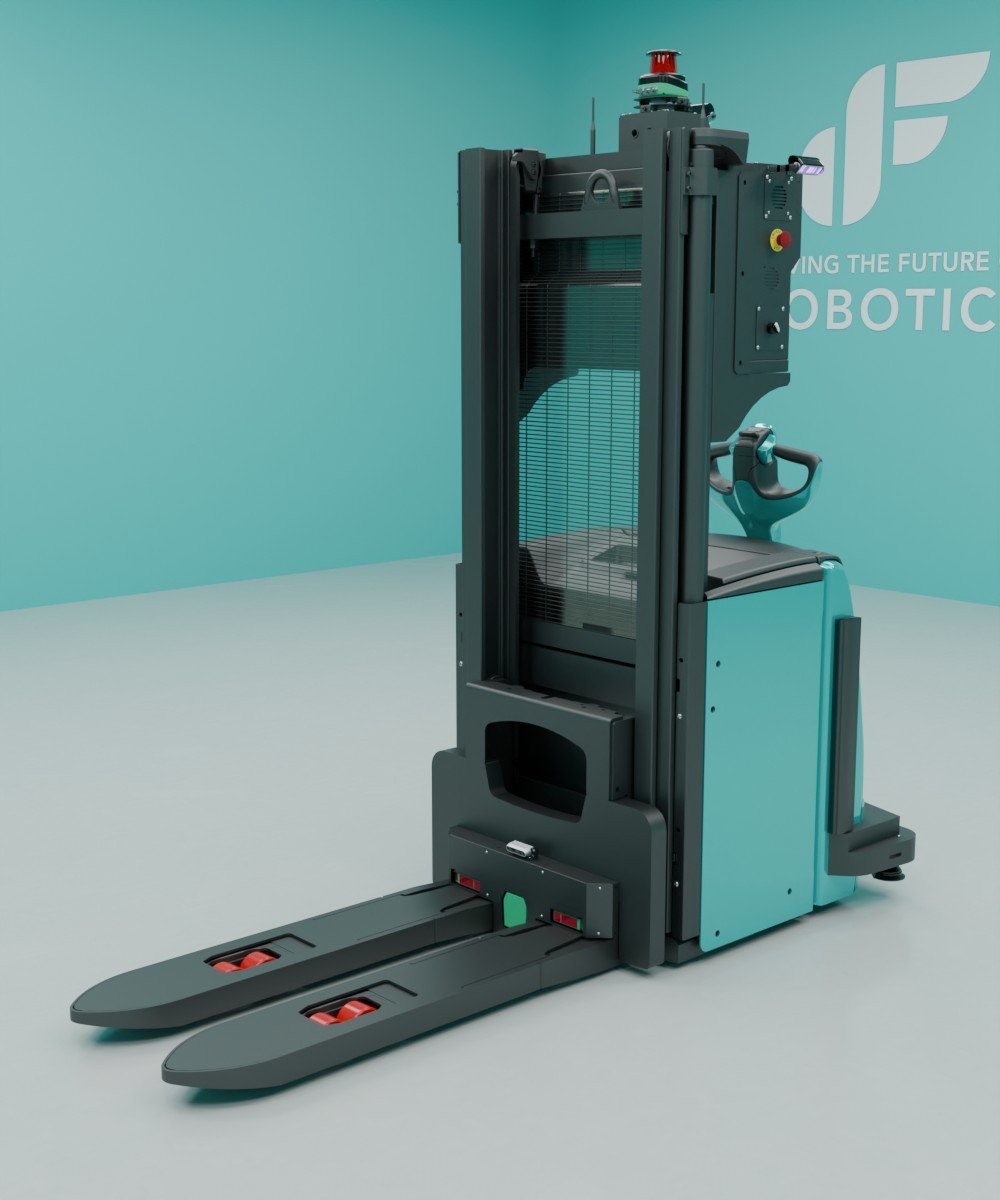

Zamma TS Standard L20 (ZAMMA-SL-TS-L20) is DF Automation & Robotics' heaviest autonomous stacker, built to transfer and stack open pallets of up to 2.0 tonnes, including the pallet, to a lift height of 2,770 mm, or up to 3,670 mm with reduced load. It measures 2,192 x 1,000 x 2,200 mm with the mast lowered, weighs 1,670 kg with its battery, and has a 1,150 mm fork carriage with 580-680 mm fork spread. It navigates by laser natural feature navigation (SLAM) with reflector support, travels at up to 1.6 m/s unladen, climbs 8% laden, works in 3 m aisles, and runs about 5 hours on a 24 V, 208 Ah lithium-ion battery with automatic dock charging. Two safety laser scanners, an obstacle sensor and two emergency stops protect people, and NavWiz and DFleet handle programming and fleet control.
FEATURES
- Lifting payload 2,000 kg incl. pallet
- lift height 2,770 mm (up to 3,670 mm with reduced payload)
- 2,192 x 1,000 x 2,200 mm (mast lowered)
- 1,670 kg incl. battery
- Fork carriage 1,150 mm
- fork spread 580-680 mm
- Laser natural-feature navigation (SLAM) with reflectors/markers
- stopping accuracy +/-20 mm with marker
- Speed up to 1.6 m/s unladen
- gradeability 8% laden / 24% unladen
- aisle 3 m
- turning radius 1,642 mm
- Li-ion 24 V 208 Ah
- ~5 h running time
- auto dock charging
- 2 safety laser scanners, obstacle sensor, 2 emergency stops
- IP20
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1670 kg |
|---|---|
| Dimensions | L 2.19 m × W 1 m × H 2.2 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Warehouses and production logistics (indoor) |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2 safety laser scanners, obstacle sensor |
| Connectivity | Dual-band Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1670 kg |
|---|---|
| Dimensions | L 2.19 m × W 1 m × H 2.2 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Warehouses and production logistics (indoor) |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2 safety laser scanners, obstacle sensor |
| Connectivity | Dual-band Wi-Fi |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Zamma TS Standard L20?
Zamma TS Standard L20 (ZAMMA-SL-TS-L20) is DF Automation & Robotics' heaviest autonomous stacker, built to transfer and stack open pallets of up to 2.0 tonnes, including the pallet, to a lift height of 2,770 mm, or up to 3,670 mm with reduced load.
Who makes the Zamma TS Standard L20?
The Zamma TS Standard L20 is made by DF Automation, a robotics company based in Malaysia.
How much does the Zamma TS Standard L20 cost?
DF Automation has not publicly announced pricing for the Zamma TS Standard L20. You can enquire through RobotAIGeek for current pricing.
What is the Zamma TS Standard L20 used for?
The Zamma TS Standard L20 is designed for lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Zamma TS Standard L20?
The Zamma TS Standard L20 has a payload capacity of 2,000 kg.
How much does the Zamma TS Standard L20 weigh?
The Zamma TS Standard L20 weighs 1,670 kg.
How fast is the Zamma TS Standard L20?
The Zamma TS Standard L20 can move at speeds of up to 5.76 km/h.
What is the battery life of the Zamma TS Standard L20?
The Zamma TS Standard L20 runs for about 300 minutes on a charge.
