DESCRIPTION
Zamma TS Standard L16 is an Industrial-Robot from DF Automation. It is built for Lifting, Material-Handling, Pallet-Transportation. Key figures: 1085 kg, 300 min runtime, 1600 kg payload.

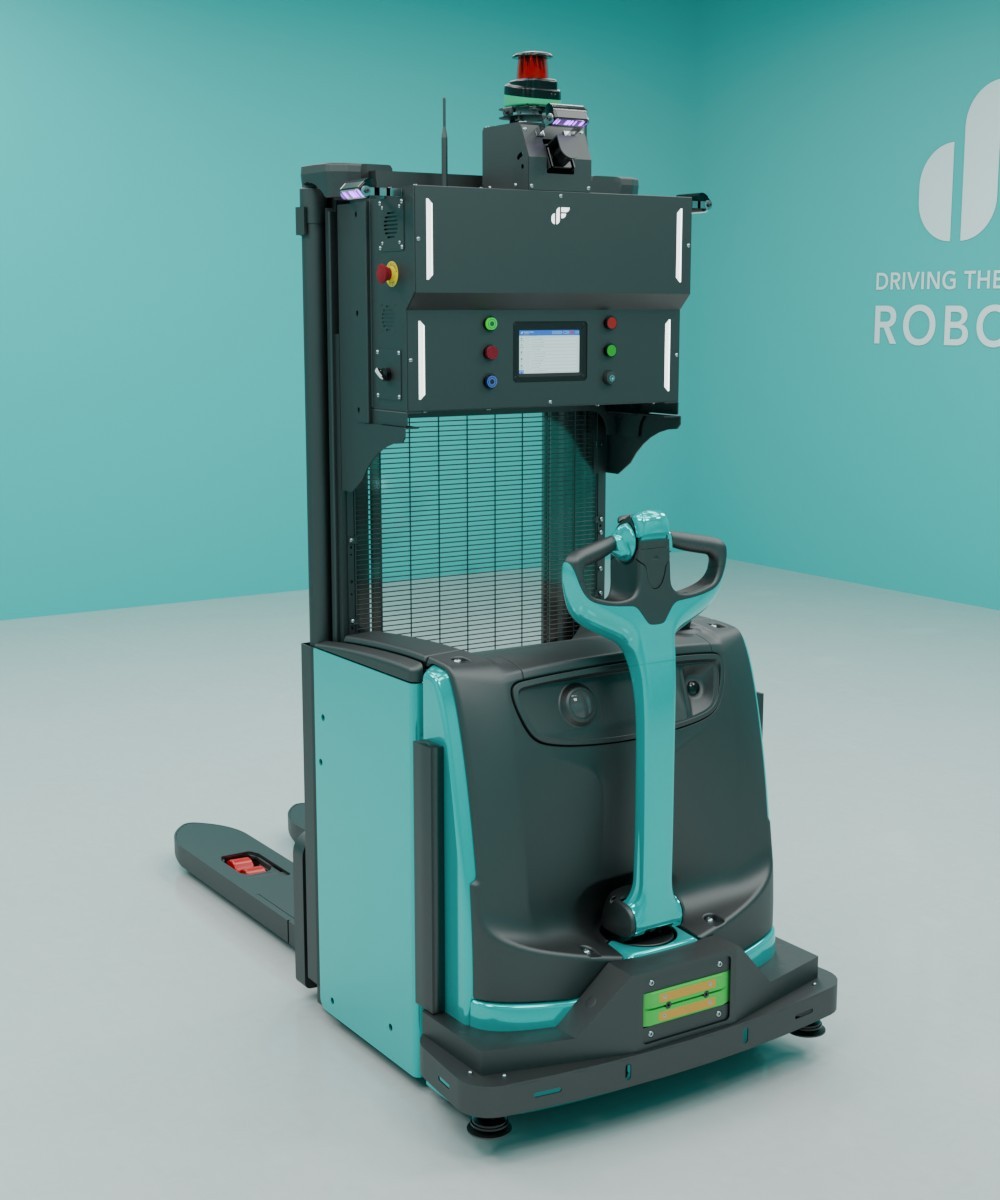

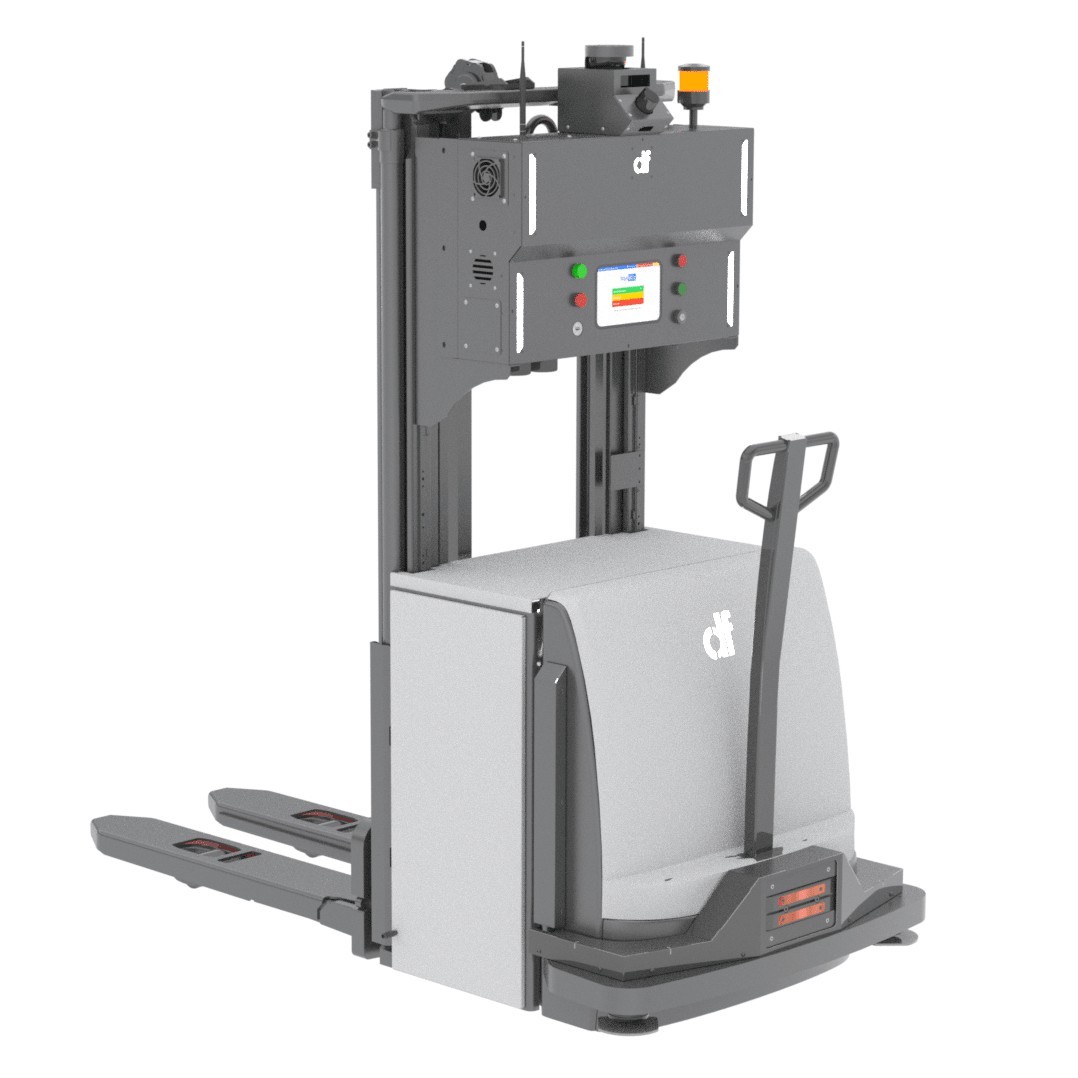

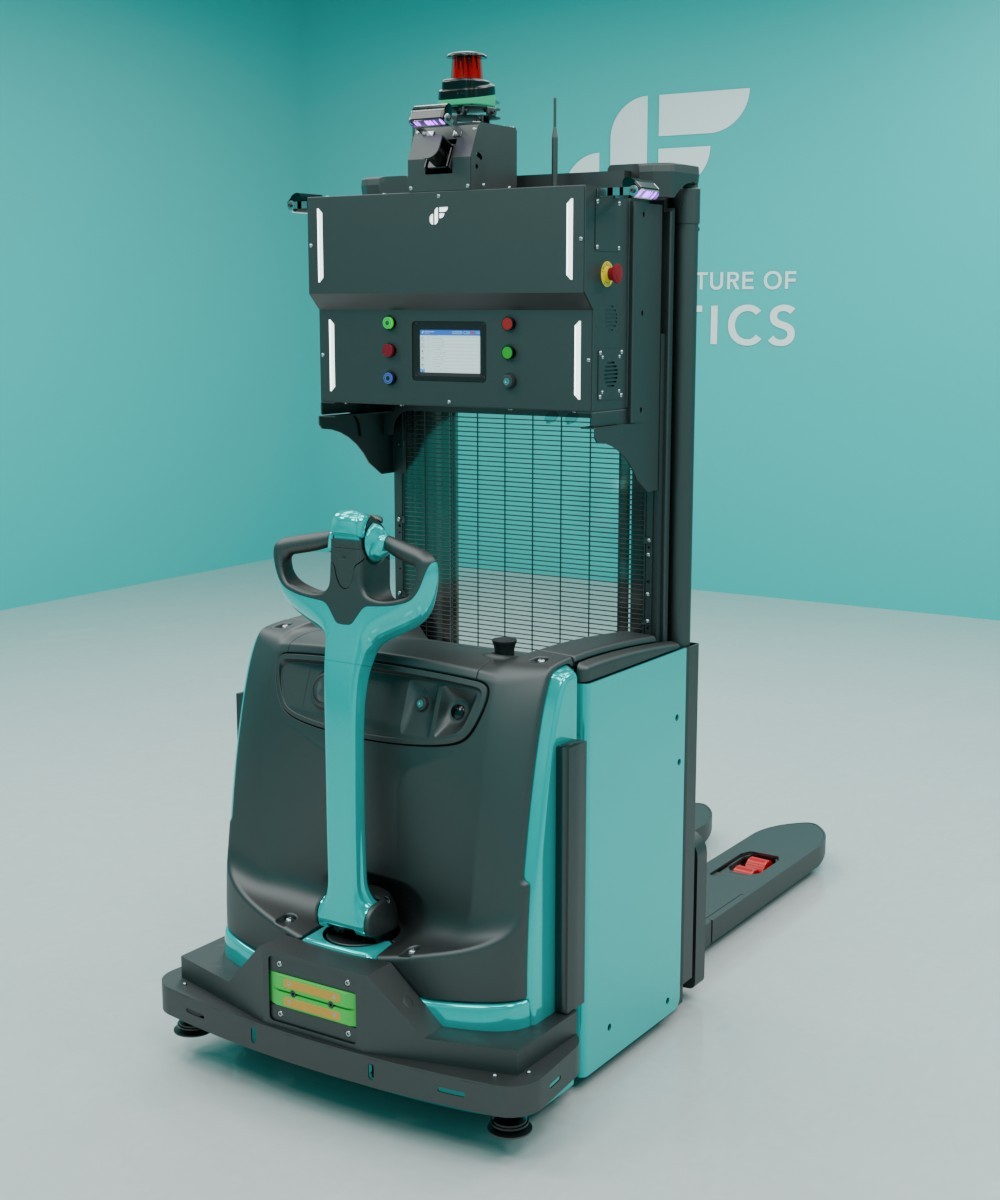

Zamma TS Standard L16 (ZAMMA-S-TS-L16) is DF Automation & Robotics' autonomous stacker for open pallets, which picks up, carries and stacks 1.6-tonne loads to about 2.4 m in warehouses and production logistics. It measures 2,192 x 1,000 x 2,200 mm with the mast lowered and weighs 1,085 kg with its battery. It navigates by laser natural feature navigation (SLAM) with reflectors or markers for precise positioning, travels at up to 1.6 m/s, works in aisles from 3 m, and runs for about 5 hours on a 24 V, 208 Ah lithium-ion battery with automatic dock charging. Safety laser scanners, an obstacle sensor and emergency stops protect people, and it is programmed with NavWiz and managed by the web-based DFleet software.
FEATURES
- Lifting payload 1,600 kg (open pallets)
- lift height about 2.4 m
- 2,192 x 1,000 x 2,200 mm (mast lowered)
- 1,085 kg incl. battery
- Laser natural-feature navigation (SLAM) with reflector/marker support
- Speed up to 1.6 m/s unladen
- minimum aisle 3 m
- Li-ion 24 V 208 Ah
- ~5 h running time
- auto dock charging
- Safety laser scanners, obstacle sensor, emergency stops
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1085 kg |
|---|---|
| Dimensions | L 2.19 m × W 1 m × H 2.2 m |
| Payload | 1600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Warehouses and production logistics (indoor) |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | safety laser scanners, obstacle sensor |
| Connectivity | Dual-band Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1085 kg |
|---|---|
| Dimensions | L 2.19 m × W 1 m × H 2.2 m |
| Payload | 1600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Warehouses and production logistics (indoor) |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | safety laser scanners, obstacle sensor |
| Connectivity | Dual-band Wi-Fi |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Zamma TS Standard L16?
Zamma TS Standard L16 (ZAMMA-S-TS-L16) is DF Automation & Robotics' autonomous stacker for open pallets, which picks up, carries and stacks 1.6-tonne loads to about 2.4 m in warehouses and production logistics. It measures 2,192 x 1,000 x 2,200 mm with the mast lowered and weighs 1,085 kg with its battery.
Who makes the Zamma TS Standard L16?
The Zamma TS Standard L16 is made by DF Automation, a robotics company based in Malaysia.
How much does the Zamma TS Standard L16 cost?
DF Automation has not publicly announced pricing for the Zamma TS Standard L16. You can enquire through RobotAIGeek for current pricing.
What is the Zamma TS Standard L16 used for?
The Zamma TS Standard L16 is designed for lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Zamma TS Standard L16?
The Zamma TS Standard L16 has a payload capacity of 1,600 kg.
How much does the Zamma TS Standard L16 weigh?
The Zamma TS Standard L16 weighs 1,085 kg.
How fast is the Zamma TS Standard L16?
The Zamma TS Standard L16 can move at speeds of up to 5.76 km/h.
What is the battery life of the Zamma TS Standard L16?
The Zamma TS Standard L16 runs for about 300 minutes on a charge.
