DESCRIPTION
VTB50 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 2500 kg, 5000 kg payload.

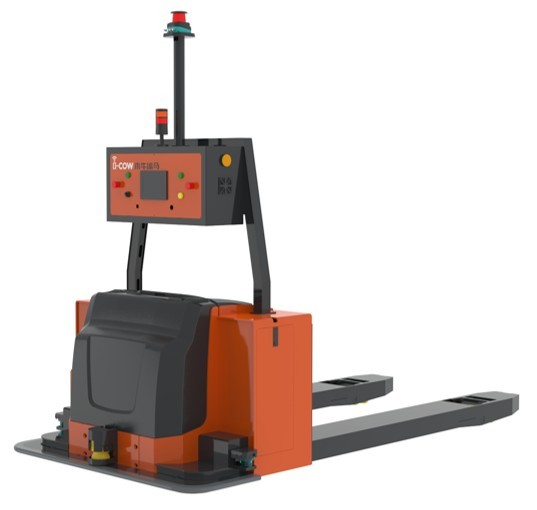

The VTB50 is a heavy-duty wide-leg pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 5,000 kg at a 1000 mm load centre, lifts to 240 mm, weighs 2,500 kg and measures 2,889 x 1,463 x 2,350 mm. Its forks measure 105 x 255 x 2000 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 2626 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 5,000 kg at 1000 mm load centre
- Lift height 240 mm
- Overall dimensions 2889 x 1463 x 2350 mm (L x W x H)
- Service weight 2,500 kg
- Forks 105/255/2000 mm (e/s/l)
- Turning radius 2626 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2500 kg |
|---|---|
| Dimensions | L 2.89 m × W 1.46 m × H 2.35 m |
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2500 kg |
|---|---|
| Dimensions | L 2.89 m × W 1.46 m × H 2.35 m |
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VTB50?
The VTB50 is a heavy-duty wide-leg pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage.
Who makes the VTB50?
The VTB50 is made by i-Cow, a robotics company based in China.
How much does the VTB50 cost?
i-Cow has not publicly announced pricing for the VTB50. You can enquire through RobotAIGeek for current pricing.
What is the VTB50 used for?
The VTB50 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VTB50?
The VTB50 has a payload capacity of 5,000 kg.
How much does the VTB50 weigh?
The VTB50 weighs 2,500 kg.
How fast is the VTB50?
The VTB50 can move at speeds of up to 5.4 km/h.
