DESCRIPTION
VTA50 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 900 kg, 5000 kg payload.

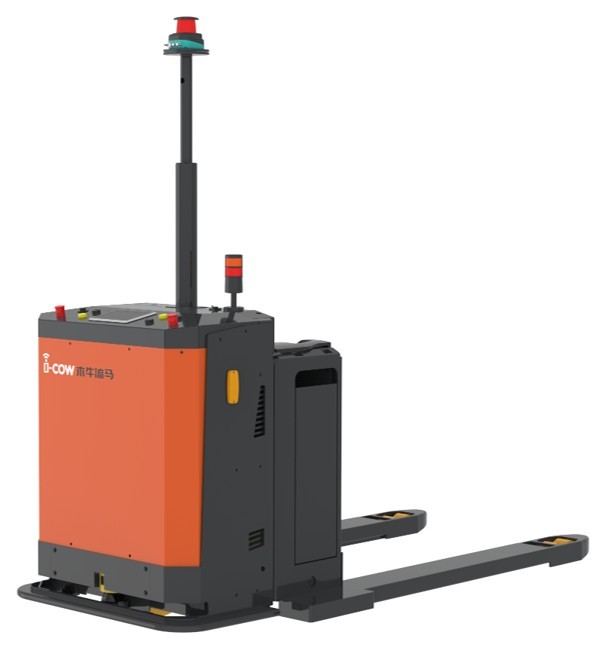

The VTA50 is a heavy-duty pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 5,000 kg at a 600 mm load centre, lifts to 210 mm, weighs 900 kg and measures 2,108 x 952 x 2,350 mm. Its forks measure 60 x 208 x 1150 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1942 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 5,000 kg at 600 mm load centre
- Lift height 210 mm
- Overall dimensions 2108 x 952 x 2350 mm (L x W x H)
- Service weight 900 kg
- Forks 60/208/1150 mm (e/s/l)
- Turning radius 1942 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 900 kg |
|---|---|
| Dimensions | L 2.11 m × W 952 mm × H 2.35 m |
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 900 kg |
|---|---|
| Dimensions | L 2.11 m × W 952 mm × H 2.35 m |
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VTA50?
The VTA50 is a heavy-duty pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage.
Who makes the VTA50?
The VTA50 is made by i-Cow, a robotics company based in China.
How much does the VTA50 cost?
i-Cow has not publicly announced pricing for the VTA50. You can enquire through RobotAIGeek for current pricing.
What is the VTA50 used for?
The VTA50 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VTA50?
The VTA50 has a payload capacity of 5,000 kg.
How much does the VTA50 weigh?
The VTA50 weighs 900 kg.
How fast is the VTA50?
The VTA50 can move at speeds of up to 5.4 km/h.
