DESCRIPTION
VTA30/50 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 900 kg, 3000 kg payload.

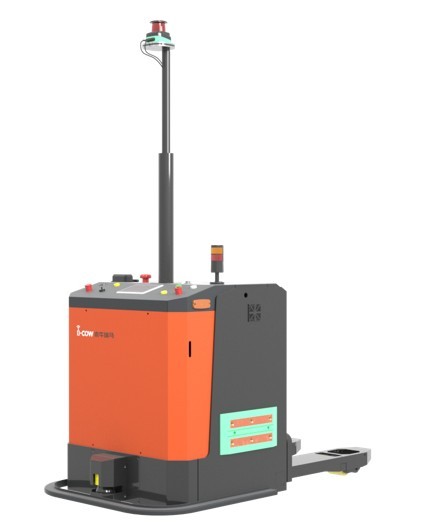

The VTA30/50 is a pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 3,000 kg at a 600 mm load centre, lifts to 210 mm, weighs 900 kg and measures 2,108 x 952 x 2,350 mm. Its forks measure 60 x 208 x 1150 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1942 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the VTA30; the same page lists VTA50 variants with different capacities.
FEATURES
- Rated load 3,000 kg at 600 mm load centre
- Lift height 210 mm

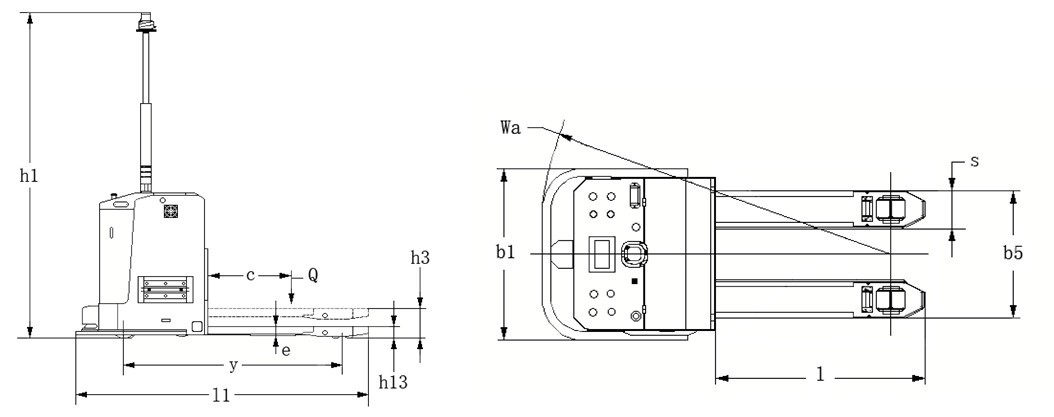

- Overall dimensions 2108 x 952 x 2350 mm (L x W x H)
- Service weight 900 kg
- Forks 60/208/1150 mm (e/s/l)
- Turning radius 1942 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VTA30, VTA50
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 900 kg |
|---|---|
| Dimensions | L 2.11 m × W 952 mm × H 2.35 m |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 900 kg |
|---|---|
| Dimensions | L 2.11 m × W 952 mm × H 2.35 m |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VTA30/50?
The VTA30/50 is a pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 3,000 kg at a 600 mm load centre, lifts to 210 mm, weighs 900 kg and measures 2,108 x 952 x 2,350 mm.
Who makes the VTA30/50?
The VTA30/50 is made by i-Cow, a robotics company based in China.
How much does the VTA30/50 cost?
i-Cow has not publicly announced pricing for the VTA30/50. You can enquire through RobotAIGeek for current pricing.
What is the VTA30/50 used for?
The VTA30/50 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VTA30/50?
The VTA30/50 has a payload capacity of 3,000 kg.
How much does the VTA30/50 weigh?
The VTA30/50 weighs 900 kg.
How fast is the VTA30/50?
The VTA30/50 can move at speeds of up to 5.4 km/h.
