DESCRIPTION
VLD08 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2850 kg, 800 kg payload.

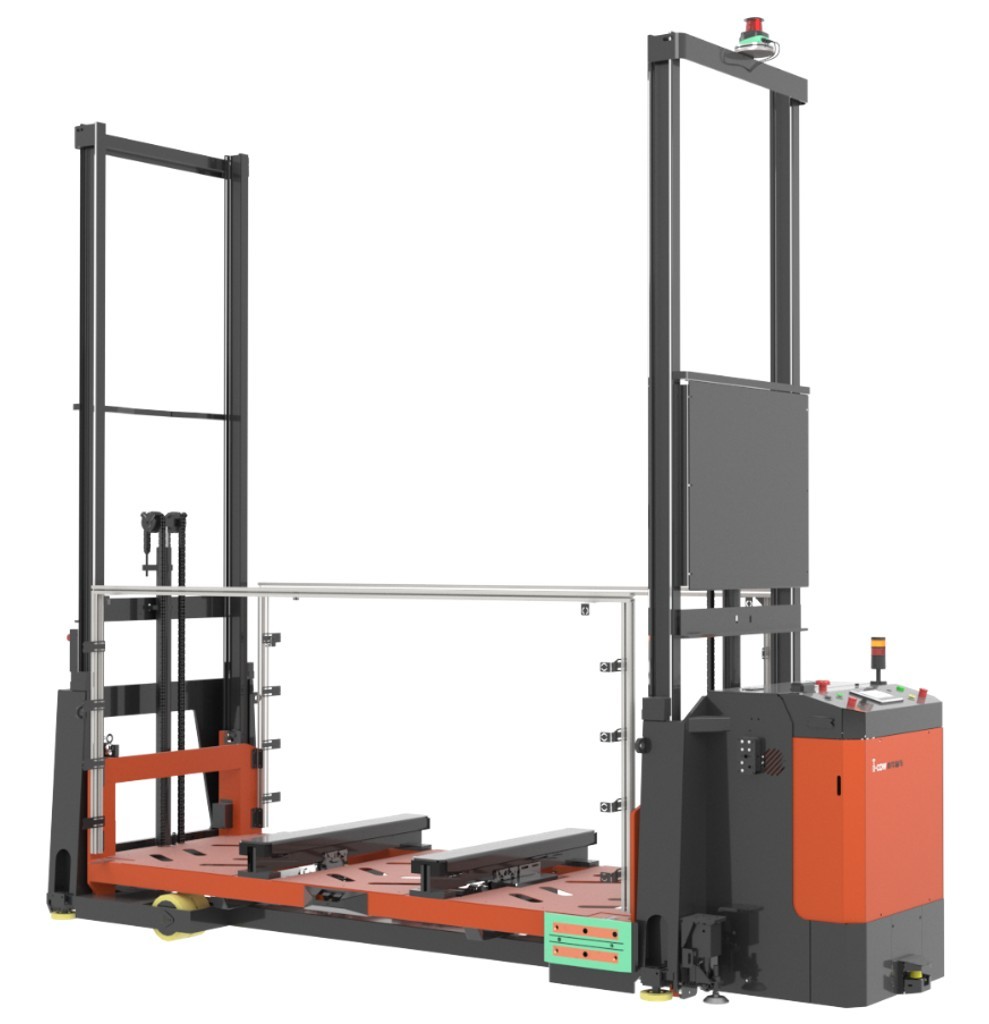

The VLD08 is a double-mast narrow-aisle stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that works in very narrow aisles, storing and retrieving pallets at height without turning in the aisle. It is rated for 800 kg at a 785 mm load centre, lifts to 3380 mm, weighs 2,850 kg and measures 4,209 x 1,392 x 3,900 mm. Its forks measure 60 x 170 x 1200 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 3383 mm, runs on a 24 V, 270 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 800 kg at 785 mm load centre
- Lift height 3380 mm
- Overall dimensions 4209 x 1392 x 3900 mm (L x W x H)
- Service weight 2,850 kg
- Forks 60/170/1200 mm (e/s/l)
- Turning radius 3383 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 270 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2850 kg |
|---|---|
| Dimensions | L 4.21 m × W 1.39 m × H 3.9 m |
| Payload | 800 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2850 kg |
|---|---|
| Dimensions | L 4.21 m × W 1.39 m × H 3.9 m |
| Payload | 800 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLD08?
The VLD08 is a double-mast narrow-aisle stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that works in very narrow aisles, storing and retrieving pallets at height without turning in the aisle.
Who makes the VLD08?
The VLD08 is made by i-Cow, a robotics company based in China.
How much does the VLD08 cost?
i-Cow has not publicly announced pricing for the VLD08. You can enquire through RobotAIGeek for current pricing.
What is the VLD08 used for?
The VLD08 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLD08?
The VLD08 has a payload capacity of 800 kg.
How much does the VLD08 weigh?
The VLD08 weighs 2,850 kg.
How fast is the VLD08?
The VLD08 can move at speeds of up to 5.4 km/h.
