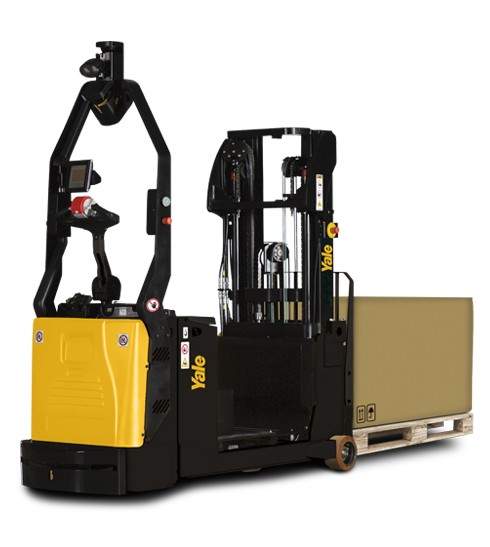

Yale MC10-15 Robotic Counterbalanced Stacker
DESCRIPTION
Yale MC10-15 Robotic Counterbalanced Stacker is an Industrial-Robot from Hyster-Yale. It is built for Intralogistics, Loading, Material-Handling. Key figures: 1247 kg payload.
The Yale MC10-15 robotic counterbalanced stacker is a dual-mode autonomous lift truck that handles both horizontal transport and vertical pallet moves, to reduce labour demands and avoid damage to products, racking and trucks. It comes in three capacities: MC10 (2,200 lb), MC12 (2,645 lb) and MC15 (2,750 lb). It maps structural features to locate itself, so it needs no tape, wires or magnets, and at the touch of a button it switches to manual driving. It can run with no, partial or full WMS integration, handles narrower pallets and charges autonomously where the power source allows. The 24 V electric truck travels at up to 4.5 mph in robotic or manual mode, handles ramps under 3% and runs on lead-acid, lithium-ion or hydrogen fuel-cell power. It predates the Yale Relay MO030CR automated stacker.
FEATURES
- Three capacities: MC10 2,200 lb, MC12 2,645 lb, MC15 2,750 lb
- Dual mode: autonomous or manual driving at the touch of a button
- Infrastructure-free navigation from mapped structural features
- Travel 4.5 mph robotic and manual
- ramps under 3%
- 24 V electric
- lead-acid, lithium-ion or hydrogen fuel cell
- autonomous charging available
- Zero, partial or full WMS integration
- handles smaller-width pallets
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1247 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Indoor warehouses, distribution centres and manufacturing plants (mixed traffic) |
| Power | |
| Charging Type | Auto charge (available for certain power sources) |
| Sensing & Compute | |
| Connectivity | WMS integration (optional) |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1247 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Indoor warehouses, distribution centres and manufacturing plants (mixed traffic) |
| Power | |
| Charging Type | Auto charge (available for certain power sources) |
| Sensing & Compute | |
| Connectivity | WMS integration (optional) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Yale MC10-15 Robotic Counterbalanced Stacker?
The Yale MC10-15 robotic counterbalanced stacker is a dual-mode autonomous lift truck that handles both horizontal transport and vertical pallet moves, to reduce labour demands and avoid damage to products, racking and trucks. It comes in three capacities: MC10 (2,200 lb), MC12 (2,645 lb) and MC15 (2,750 lb).
Who makes the Yale MC10-15 Robotic Counterbalanced Stacker?
The Yale MC10-15 Robotic Counterbalanced Stacker is made by Hyster-Yale, a robotics company based in United States.
How much does the Yale MC10-15 Robotic Counterbalanced Stacker cost?
Hyster-Yale has not publicly announced pricing for the Yale MC10-15 Robotic Counterbalanced Stacker. You can enquire through RobotAIGeek for current pricing.
What is the Yale MC10-15 Robotic Counterbalanced Stacker used for?
The Yale MC10-15 Robotic Counterbalanced Stacker is designed for intralogistics, loading, material-handling, and pallet-transportation. It is used in warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the Yale MC10-15 Robotic Counterbalanced Stacker?
The Yale MC10-15 Robotic Counterbalanced Stacker has a payload capacity of 1,247 kg.
How fast is the Yale MC10-15 Robotic Counterbalanced Stacker?
The Yale MC10-15 Robotic Counterbalanced Stacker can move at speeds of up to 7.2 km/h.
