DESCRIPTION
VisionBot 6D is a Mobile-Robots from Dr Robot. It is built for Others, Helping, Human-robot interaction research and education. Key figures: 20 kg, 180 min runtime.

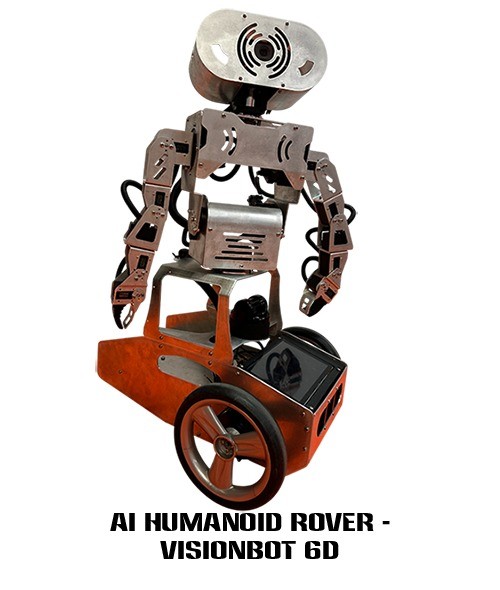

The VisionBot 6D is Dr Robot's AI humanoid rover, a mobile upper-body robot for research, education and service robotics that combines autonomous navigation with two-handed manipulation. Standing 75 cm tall and weighing 20 kg, it rides on two powered 14 cm wheels with zero-radius turning and a top speed of 1.08 m/s, and its dual 6-DOF arms each reach 38 cm and carry 0.5 kg. Its cameras and optional 360-degree LiDAR feed an NVIDIA Jetson running ROS 2 Humble for real-time object detection and tracking, facial and emotion recognition, 3D scene reconstruction and pose estimation, multi-language speech recognition and context-aware dialogue, and navigation through crowds with semantic mapping. A hot-swappable 22.2 V 20 Ah battery runs 2-3 hours and charges to 80% in 2 hours, and it can be controlled by mobile app, desktop station, voice or gesture; listed uses include human-robot interaction studies, STEM teaching, remote inspection and acting as an interactive guide or assistant.
FEATURES
- Dual 6-DOF arms: 38 cm reach, 0.5 kg each
- Two-wheel drive
- zero-radius turning
- 1.08 m/s
- Face, emotion and object recognition
- 3D reconstruction
- Multi-language speech recognition and dialogue
- NVIDIA Jetson, ROS 2 Humble
- 22.2 V 20 Ah hot-swap battery
- 2-3 h runtime
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 20 kg |
|---|---|
| Dimensions | L 450 mm × W 400 mm × H 750 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.89 km/h |
| Environment | Indoor and smooth outdoor surfaces, 0 to 40 C |
| Power | |
| Battery Life | 180 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 20 kg |
|---|---|
| Dimensions | L 450 mm × W 400 mm × H 750 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.89 km/h |
| Environment | Indoor and smooth outdoor surfaces, 0 to 40 C |
| Power | |
| Battery Life | 180 min |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VisionBot 6D?
The VisionBot 6D is Dr Robot's AI humanoid rover, a mobile upper-body robot for research, education and service robotics that combines autonomous navigation with two-handed manipulation.
Who makes the VisionBot 6D?
The VisionBot 6D is made by Dr Robot, a robotics company based in Canada.
How much does the VisionBot 6D cost?
Dr Robot has not publicly announced pricing for the VisionBot 6D. You can enquire through RobotAIGeek for current pricing.
What is the VisionBot 6D used for?
The VisionBot 6D is designed for others, helping, and human-robot interaction research and education. It is used in research and education settings.
How much does the VisionBot 6D weigh?
The VisionBot 6D weighs 20 kg.
How fast is the VisionBot 6D?
The VisionBot 6D can move at speeds of up to 3.89 km/h.
What is the battery life of the VisionBot 6D?
The VisionBot 6D runs for about 180 minutes on a charge.
