DESCRIPTION
TMN-T20 is an Industrial-Robot from MyBull. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 1000 kg, 480 min runtime.

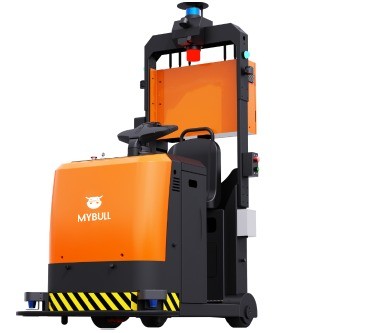

The TMN-T20 is a MyBull autonomous tow tractor rated to pull 2 tonnes, for heavy driverless trailer and cart trains in complex indoor and outdoor environments around the clock. It localises with multi-source fusion positioning (3D SLAM + IMU), plans and schedules alongside other vehicles in a fleet, and guards a 360-degree zone with blind-spot detection, obstacle and collision detection and emergency stops. The 1,630 x 1,050 x 2,200 mm tractor weighs 1,000 kg, reaches 8 km/h empty and 7 km/h fully loaded, positions to +/-30 mm, climbs 15 % grades empty (4 % loaded), clears 30 mm obstacles and runs at least 8 h on a charge between -20 and 50 C; it can also be driven manually (minimum turning radius 1,172 mm manual, 1,800 mm autonomous). MyBull targets airports, ports, automotive plants, factories and logistics parks.
FEATURES
- Rated towing capacity 2,000 kg
- 1,630 x 1,050 x 2,200 mm
- 1,000 kg
- Navigation: multi-source fusion (3D SLAM + IMU)
- Max. speed 8 km/h unloaded, 7 km/h fully loaded
- Turning radius 1,172 mm manual / 1,800 mm autonomous
- Gradeability 15 % unloaded, 4 % fully loaded
- obstacle clearance 30 mm
- Positioning accuracy +/-30 mm
- battery life at least 8 h
- Operating temperature -20 to 50 C
- IP54 main body
- Multi-source fusion positioning and navigation
- multi-vehicle scheduling
- 360-degree safety: blind-spot detection, emergency stop, collision and obstacle detection
- Customisable digital twin
- flexible deployment
- Applications: airport, port, automotive manufacturing, factory and logistics-park transport
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1000 kg |
|---|---|
| Dimensions | L 1.63 m × W 1.05 m × H 2.2 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 8 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1000 kg |
|---|---|
| Dimensions | L 1.63 m × W 1.05 m × H 2.2 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 8 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TMN-T20?
The TMN-T20 is a MyBull autonomous tow tractor rated to pull 2 tonnes, for heavy driverless trailer and cart trains in complex indoor and outdoor environments around the clock.
Who makes the TMN-T20?
The TMN-T20 is made by MyBull, a robotics company based in China.
How much does the TMN-T20 cost?
MyBull has not publicly announced pricing for the TMN-T20. You can enquire through RobotAIGeek for current pricing.
What is the TMN-T20 used for?
The TMN-T20 is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
How much does the TMN-T20 weigh?
The TMN-T20 weighs 1,000 kg.
How fast is the TMN-T20?
The TMN-T20 can move at speeds of up to 8 km/h.
What is the battery life of the TMN-T20?
The TMN-T20 runs for about 480 minutes on a charge.
