DESCRIPTION
FC Heavy is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 300 kg, 1440 min runtime.

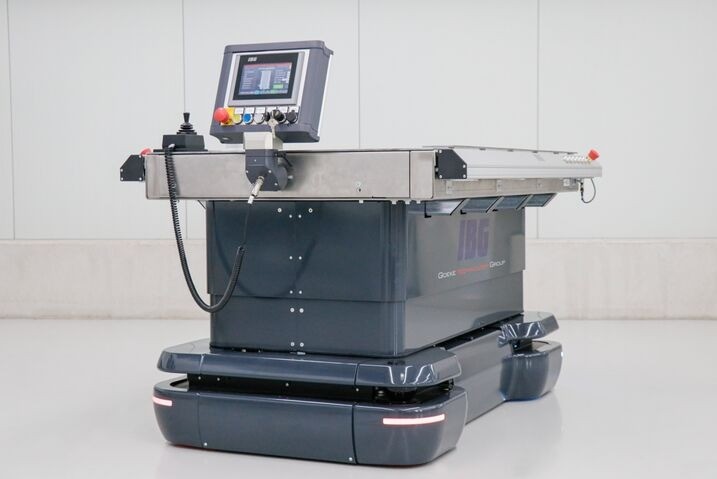

FC Heavy is the IBG Factory Cruiser for large and heavy goods. It shares the FC Compact's 1,600 x 950 x 800 mm, 300 kg body but is rated to tow 2,000 kg, moving load carriers between workstations by free, contour-based navigation without floor tracks. A lifting system raises loads by +/-100 mm at 8 mm/s.\nSafety scanners protect people and equipment along the route; the vehicle travels at up to 1.0 m/s and runs 24 hours on a LiFePO4 battery with 1.5-hour charging.
FEATURES
- Rated towing capacity 2,000 kg
- Free (contour-based) navigation
- safety scanners
- Lifting system +/-100 mm at 8 mm/s
- 1,600 x 950 x 800 mm
- 300 kg own weight
- 24 h operating time
- 1.5 h charging
- LiFePO4
- Up to 1.0 m/s
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 1.6 m × W 950 mm × H 800 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, contour navigation sensors |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 1.6 m × W 950 mm × H 800 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, contour navigation sensors |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC Heavy?
FC Heavy is the IBG Factory Cruiser for large and heavy goods. It shares the FC Compact's 1,600 x 950 x 800 mm, 300 kg body but is rated to tow 2,000 kg, moving load carriers between workstations by free, contour-based navigation without floor tracks.
Who makes the FC Heavy?
The FC Heavy is made by IBG Automation, a robotics company based in Germany.
How much does the FC Heavy cost?
IBG Automation has not publicly announced pricing for the FC Heavy. You can enquire through RobotAIGeek for current pricing.
What is the FC Heavy used for?
The FC Heavy is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
How much does the FC Heavy weigh?
The FC Heavy weighs 300 kg.
How fast is the FC Heavy?
The FC Heavy can move at speeds of up to 3.6 km/h.
What is the battery life of the FC Heavy?
The FC Heavy runs for about 1,440 minutes on a charge.
