DESCRIPTION
TLS 3600 is an Industrial-Robot from TRAPO. It is built for Heavy-Load-Transportation, Intralogistics, Loading. Key figures: 3600 kg payload.

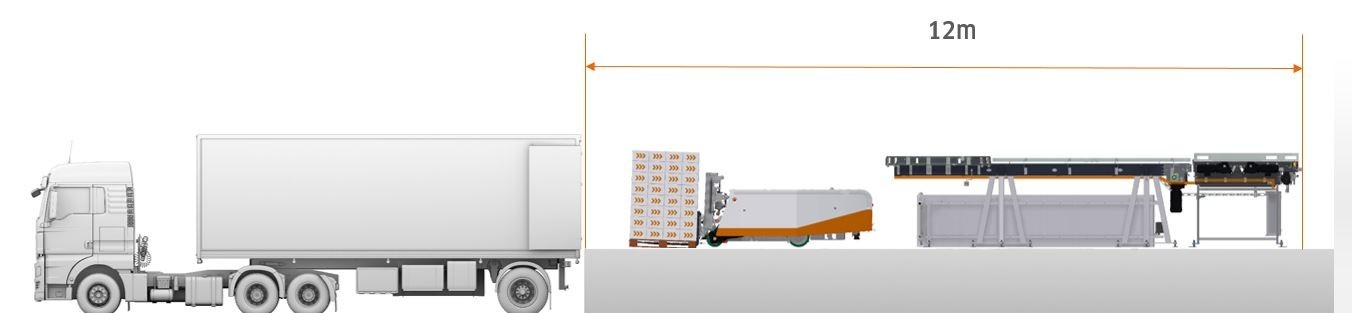

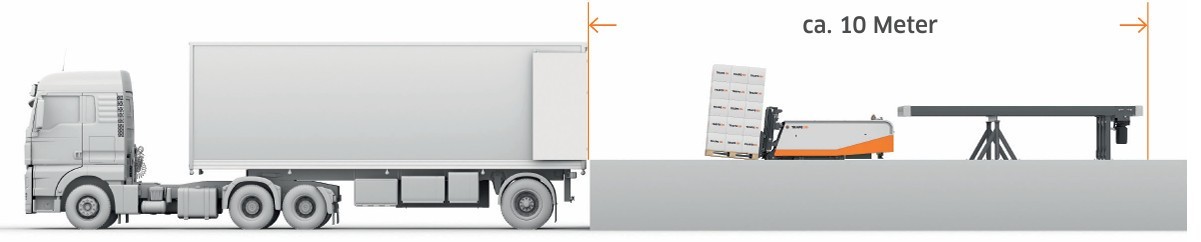

The TLS 3600 (TRAPO Loading System) is TRAPO's autonomous truck and container loading system, built to take forklifts out of the loading bay. It is named after its key feature: it picks up a row of three pallets of up to 1,200 kg each - 3,600 kg in total - and drives them into the trailer in a single operation, regulating its own position before and while it enters the truck. Unloading works the same way in reverse. Each system pairs the autonomous vehicle with a dock. In the dock, up to three pallets are placed side by side on conveyors and aligned; the vehicle picks up the row and loads it, while the next row is already being formed, so loading runs continuously without waiting times. TRAPO says this cuts loading of a 14-metre trailer with 33 Euro pallets to under 25 minutes, depending on the load, and needs far less space than one-shot systems that stage a whole truckload in a 12-metre zone. The dock is fixed in front of one loading door or moves on wheels or rails to serve up to three doors, and the vehicle is either cable-powered or battery-powered, giving six variants (TLS 3600 F-W, F-B, W-W, W-B, R-W and R-B). The patented system won a Handling Award, and customers can test it with their own pallets at TRAPO in Gescher.
FEATURES
- Loads 3 pallets of up to 1,200 kg each (3,600 kg) in one operation

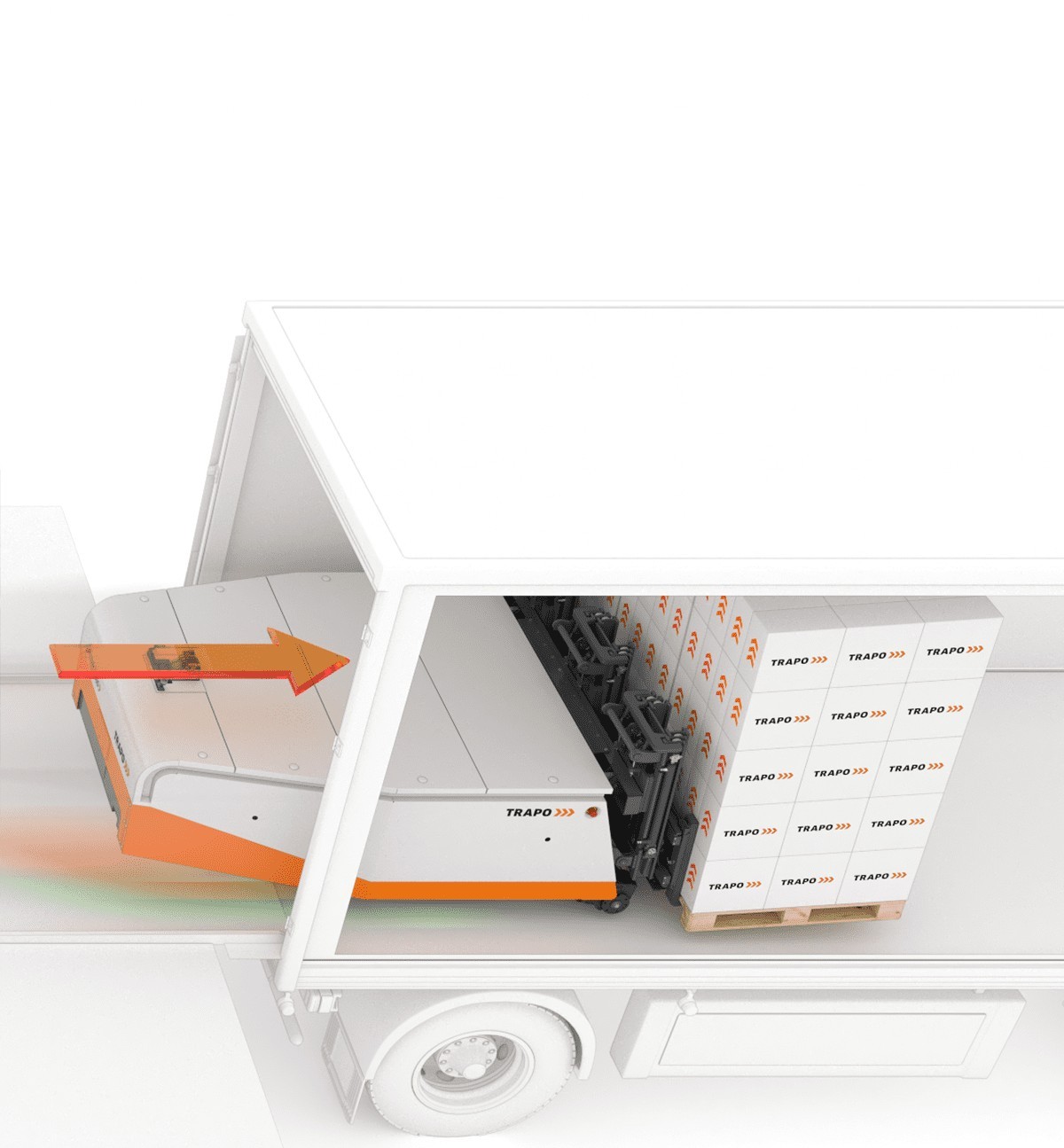

- Autonomous position control before and during truck entry
- Loading and unloading of trucks and containers
- no forklifts at the loading bay
- Under 25 min for a 14 m trailer with 33 Euro pallets (load dependent)
- Continuous process: next pallet row formed on the dock while the vehicle loads
- Dock variants: fixed, wheel-mounted or rail-mounted (serves up to 3 loading doors)
- Vehicle power: wired or battery
- Variants TLS 3600 F-W / F-B / W-W / W-B / R-W / R-B
- Patented
- Handling Award winner
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3600 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Warehouse loading bays; trucks and containers |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3600 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Warehouse loading bays; trucks and containers |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TLS 3600?
The TLS 3600 (TRAPO Loading System) is TRAPO's autonomous truck and container loading system, built to take forklifts out of the loading bay.
Who makes the TLS 3600?
The TLS 3600 is made by TRAPO, a robotics company based in Germany.
How much does the TLS 3600 cost?
TRAPO has not publicly announced pricing for the TLS 3600. You can enquire through RobotAIGeek for current pricing.
What is the TLS 3600 used for?
The TLS 3600 is designed for heavy-load-transportation, intralogistics, loading, and unloading. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the TLS 3600?
The TLS 3600 has a payload capacity of 3,600 kg.
