DESCRIPTION
SNEAK is an Industrial-Robot from HITO Robotic System. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 70 kg, 100 kg payload.

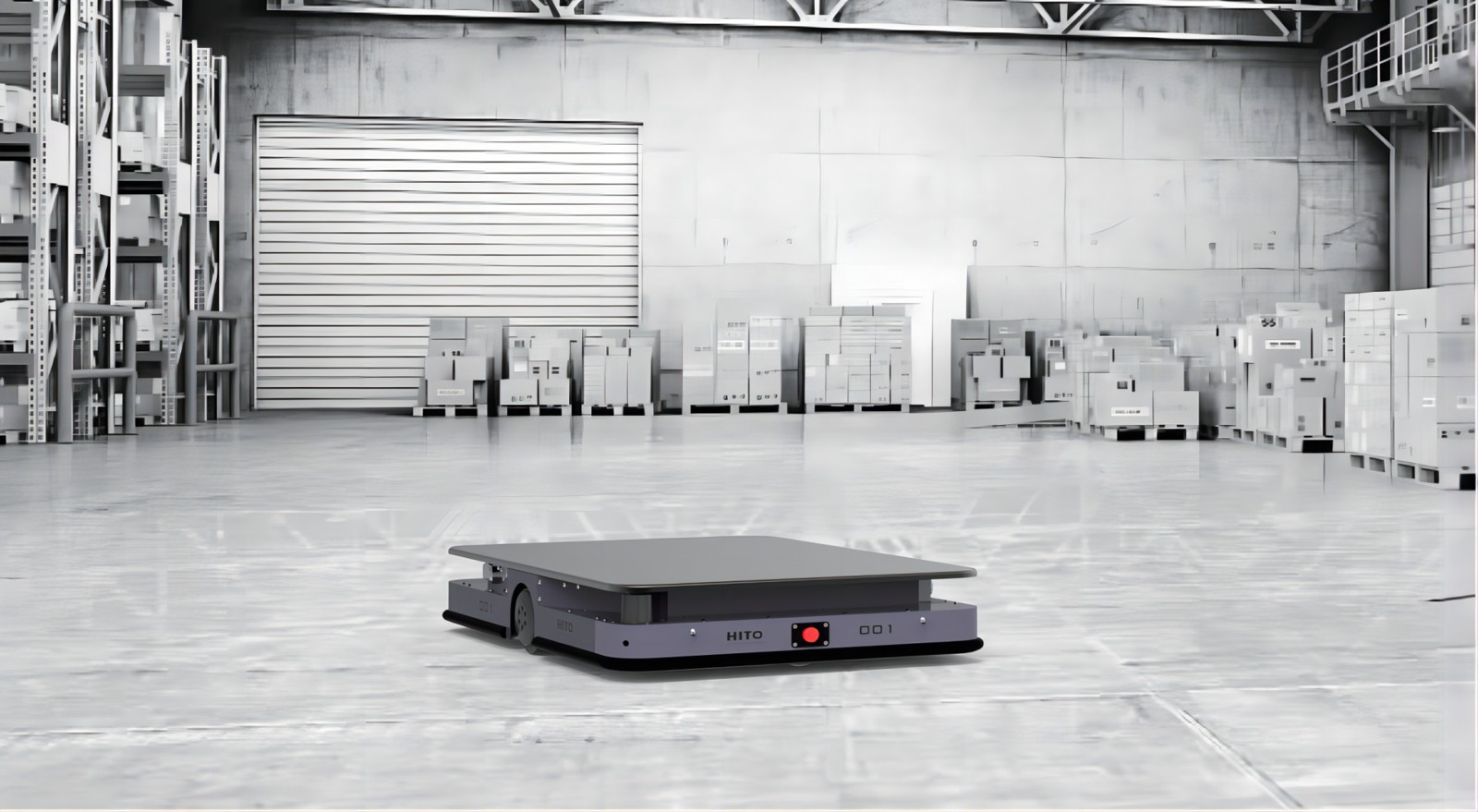

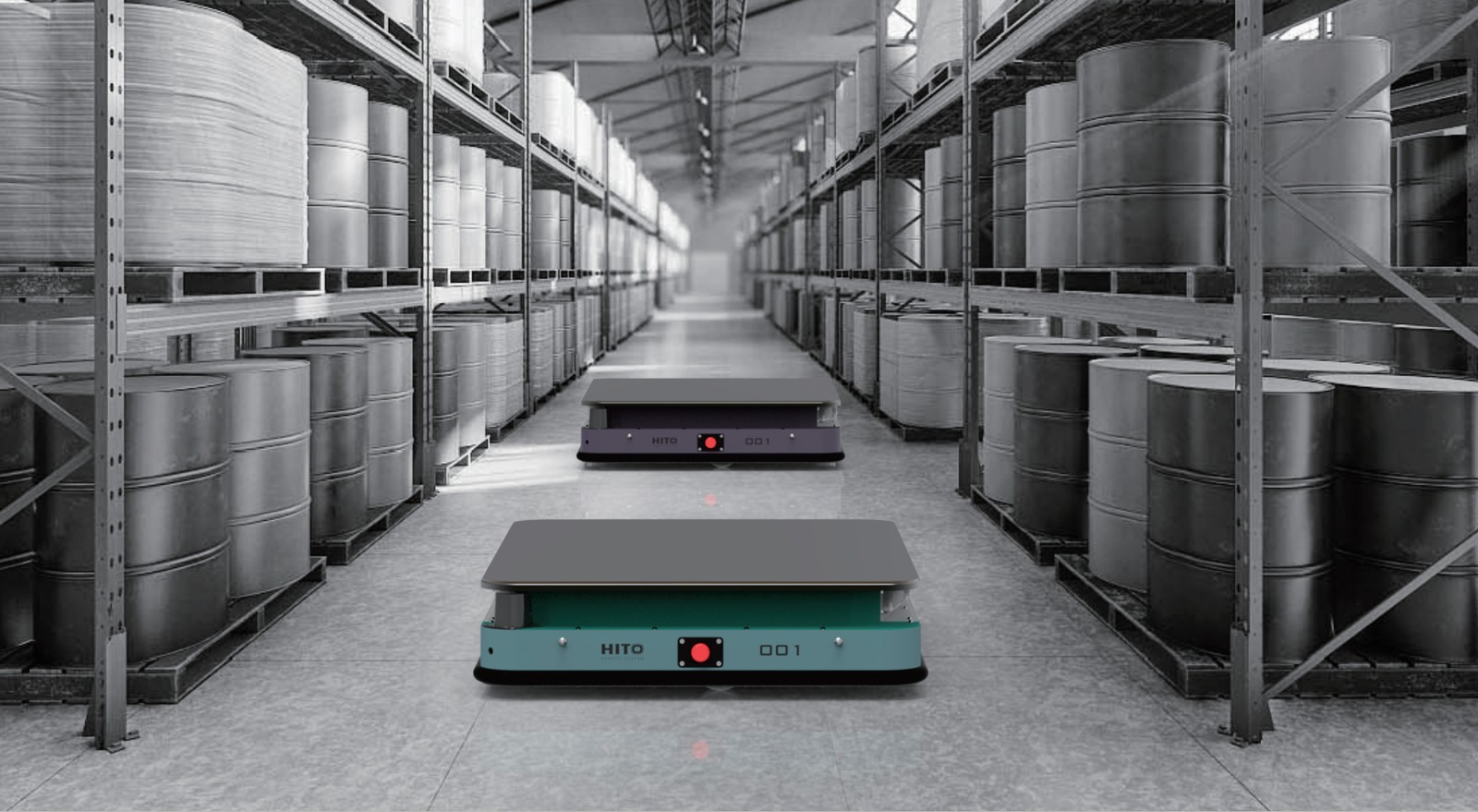

SNEAK (model HT-VDSM-S30) is HITO's ultra-low-profile lifting AMR, only 150 mm high, built to slip under low racks, carts and fixtures. It measures 880 x 600 x 150 mm, weighs 70 kg, carries up to 100 kg and lifts by 20 mm, travelling at up to 0.75 m/s. Like the rest of HITO's AMR range it supports magnetic, optical, laser, visual, inertial or hybrid navigation, with +/-10 mm guidance and stopping accuracy and +/-5 mm docking accuracy, while its safety protection covers a full 360 degrees. It is dispatched by HITO's fleet scheduling system.
FEATURES
- Ultra-low lifting AMR, model HT-VDSM-S30
- 150 mm high
- Load up to 100 kg
- lifting height 20 mm
- Speed up to 0.75 m/s
- 880 x 600 x 150 mm
- 70 kg
- Magnetic / optical / laser / visual / inertial / hybrid navigation
- Guidance +/-10 mm, docking +/-5 mm, stop +/-10 mm
- 360 deg safety protection
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 70 kg |
|---|---|
| Dimensions | L 880 mm × W 600 mm × H 150 mm |
| Payload | 100 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.7 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Sensors | safety protection sensors (360 deg coverage) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 70 kg |
|---|---|
| Dimensions | L 880 mm × W 600 mm × H 150 mm |
| Payload | 100 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.7 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Sensors | safety protection sensors (360 deg coverage) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SNEAK?
SNEAK (model HT-VDSM-S30) is HITO's ultra-low-profile lifting AMR, only 150 mm high, built to slip under low racks, carts and fixtures. It measures 880 x 600 x 150 mm, weighs 70 kg, carries up to 100 kg and lifts by 20 mm, travelling at up to 0.75 m/s.
Who makes the SNEAK?
The SNEAK is made by HITO Robotic System, a robotics company based in China.
How much does the SNEAK cost?
HITO Robotic System has not publicly announced pricing for the SNEAK. You can enquire through RobotAIGeek for current pricing.
What is the SNEAK used for?
The SNEAK is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SNEAK?
The SNEAK has a payload capacity of 100 kg.
How much does the SNEAK weigh?
The SNEAK weighs 70 kg.
How fast is the SNEAK?
The SNEAK can move at speeds of up to 2.7 km/h.
