DESCRIPTION
RUNPICK is an Industrial-Robot from KNAPP. It is built for Material-Handling, palletizing, Picking.

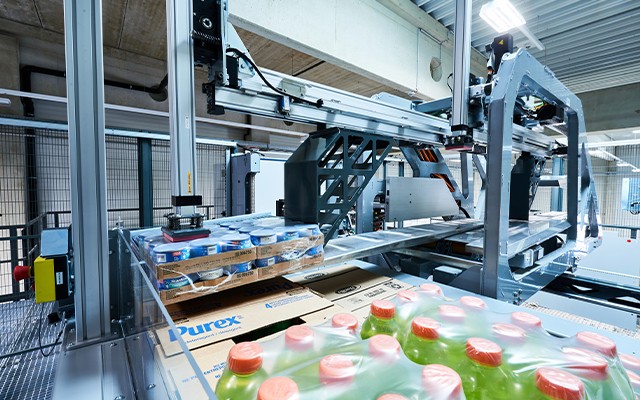

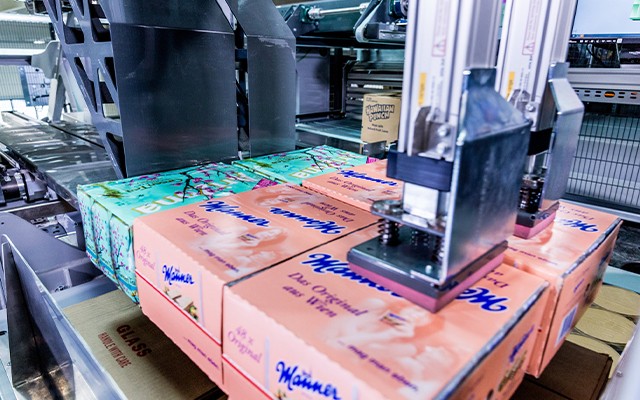

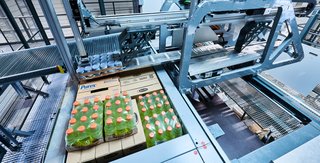

RUNPICK (Robotic Universal Picker) is KNAPP's robotic system for fully automated full-case picking and mixed-case palletizing, built for preparing store deliveries in food wholesale and large general retail as well as healthcare and fashion. It places different cases and handling units onto pallets or into roll containers quickly and in little space, then secures the load for transport, so carriers leave the system ready to ship. Pack units are stored in KNAPP's Evo Shuttle and retrieved in the optimal sequence, while KiSoft Pack Master calculates the packing pattern in advance from customer order data for stability, density, shipping and store-friendliness, minimising the number of pallets and truck space. RUNPICK unloads up to four pack units from a tray at once and rotates, tilts and groups them before the robot places them, and its multi-case picking puts up to six pack units on the load carrier per cycle for higher throughput. It handles all common pack formats in dry goods, fresh and frozen areas. An image-processing system checks for clearance and a measuring station records item dimensions, finished loads are wrapped in film, and slip-sheet handling runs fully automatically from a magazine. Its modular design allows upgrades such as roll-container handling.
FEATURES
- Fully automatic full-case picking and mixed-case palletizing onto pallets or roll containers
- Multi-case picking: up to 6 pack units placed per cycle
- unloads up to 4 pack units from a tray at once
- Units rotated, tilted and grouped before placement to match the optimal packing pattern
- KiSoft Pack Master calculates stable, dense, store-friendly packing patterns from order data
- Integrated transport securing (film wrapping)
- automatic slip-sheet handling from a magazine
- Image processing checks clearance
- measuring station records item dimensions
- Handles all common pack formats
- dry goods, fresh and frozen foods
- Modular
- combined with Evo Shuttle storage
- upgrades for roll containers
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Environment | Indoor distribution centres (dry, fresh and frozen food areas) |
| Actuators | Robot placing grouped pack units (up to 6 per cycle); tray unloading with rotating/tilting of units |
| Sensing & Compute | |
| Sensors | image-processing system, measuring station |
| Software / AI | KiSoft Pack Master |
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Environment | Indoor distribution centres (dry, fresh and frozen food areas) |
| Actuators | Robot placing grouped pack units (up to 6 per cycle); tray unloading with rotating/tilting of units |
| Sensing & Compute | |
| Sensors | image-processing system, measuring station |
| Software / AI | KiSoft Pack Master |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the RUNPICK?
RUNPICK (Robotic Universal Picker) is KNAPP's robotic system for fully automated full-case picking and mixed-case palletizing, built for preparing store deliveries in food wholesale and large general retail as well as healthcare and fashion.
Who makes the RUNPICK?
The RUNPICK is made by KNAPP, a robotics company based in Austria.
How much does the RUNPICK cost?
KNAPP has not publicly announced pricing for the RUNPICK. You can enquire through RobotAIGeek for current pricing.
What is the RUNPICK used for?
The RUNPICK is designed for material-handling, palletizing, picking, and automated mixed-case palletizing of store orders in food wholesale and retail distribution. It is used in warehouse & logistics and retail settings.
