Auto Robot Box Palletizer
DESCRIPTION
Auto Robot Box Palletizer is an Industrial-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 100 kg payload.

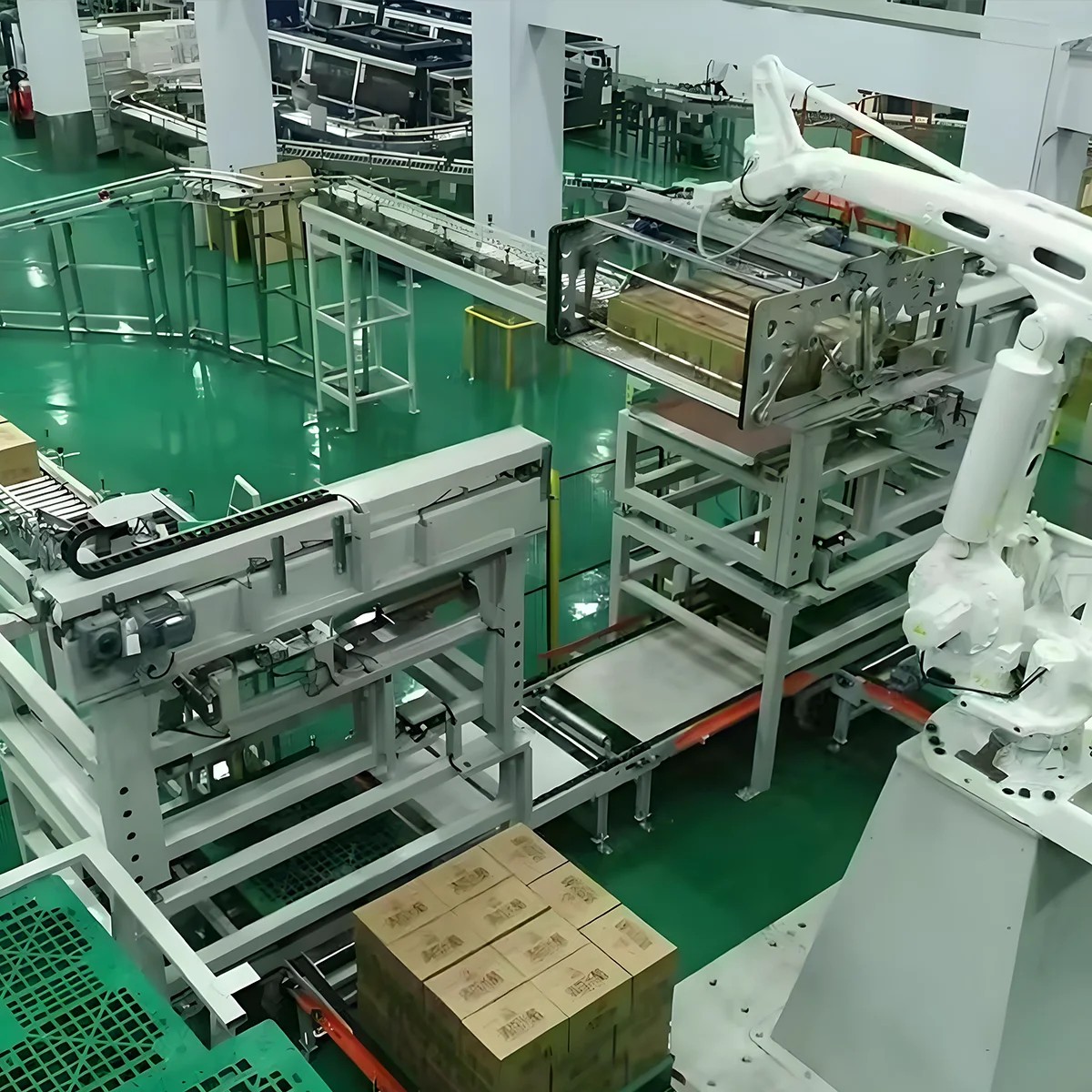

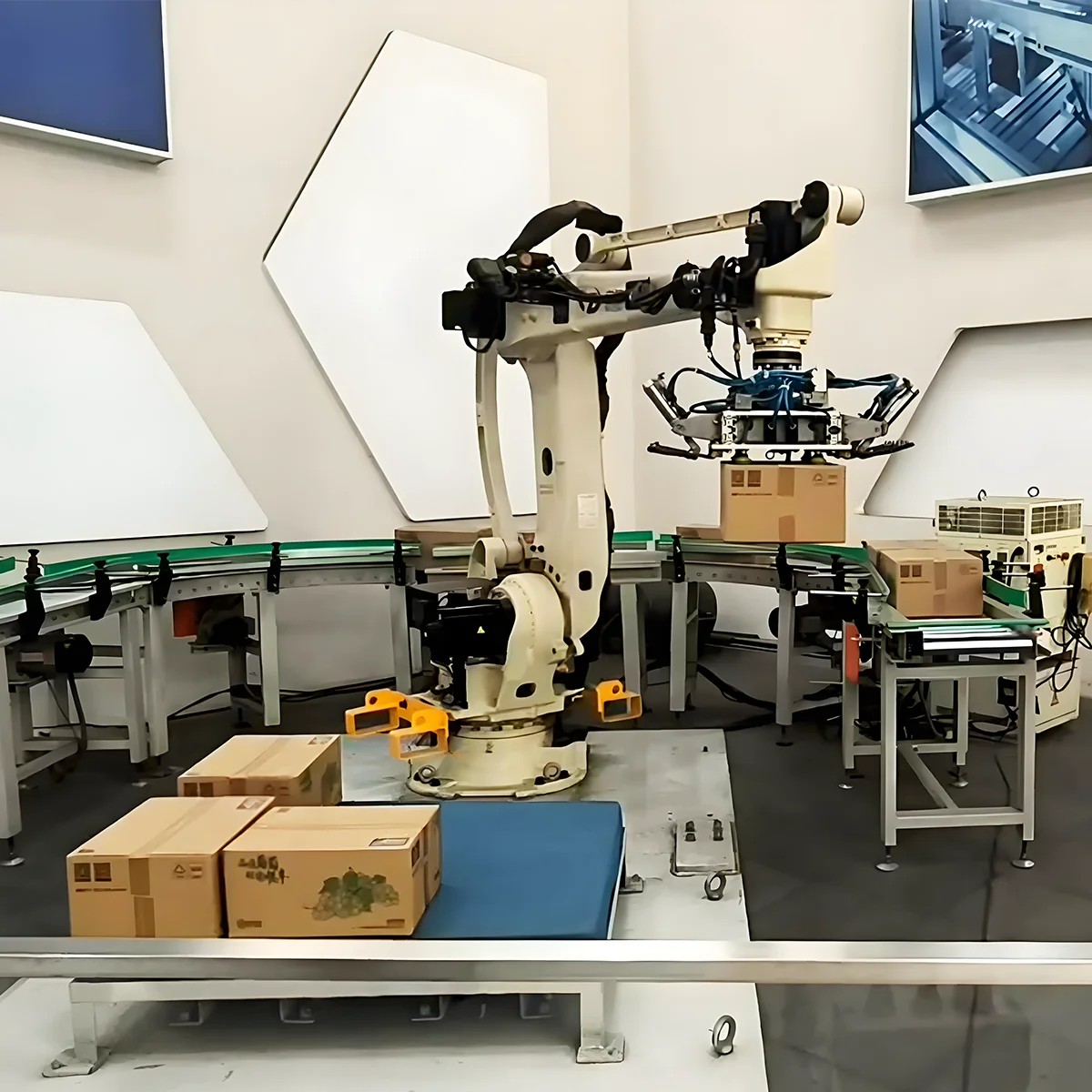

The GOJON Auto Robot Box Palletizer is a robotic palletizing cell from Shandong Gojon Precision Technology that stacks cartons and boxes onto pallets at the end of corrugated, printing and packaging lines. An industrial robot arm with a carton gripper and 3D vision recognition picks boxes of different sizes and builds customizable stacking patterns at up to 22 cycles per minute with ±2 mm positioning accuracy, handling up to 100 kg per grab and stacking up to 2,200 mm high.
FEATURES
- Robotic carton and box palletizing cell built around an industrial robot arm
- 3D vision recognition to identify and pick boxes of various sizes
- Customizable stacking patterns for pallet stability and space use
- Designed for 24/7 unmanned operation
- Up to 22 palletizing cycles per minute, up to 38 bundles per minute
- Palletizing position accuracy ±2 mm
- Maximum grab load 100 kg
- Carton sizes 350 x 300 x 50 mm to 1500 x 1200 x 250 mm
- Maximum stacking area 1650 x 1650 mm, maximum stacking height 2200 mm
- Pallet sizes 1000 x 1000 mm to 1500 x 1500 mm
- Pallet change time 5 seconds
- Integrates with GOJON's Whole Factory Conveyor System
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line packaging area |
| Actuators | Industrial robot arm with carton gripper (end-of-arm tooling) |
| Sensing & Compute | |
| Sensors | 3D vision recognition system |
| Software / AI | Customizable stacking-pattern software |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line packaging area |
| Actuators | Industrial robot arm with carton gripper (end-of-arm tooling) |
| Sensing & Compute | |
| Sensors | 3D vision recognition system |
| Software / AI | Customizable stacking-pattern software |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Auto Robot Box Palletizer?
The GOJON Auto Robot Box Palletizer is a robotic palletizing cell from Shandong Gojon Precision Technology that stacks cartons and boxes onto pallets at the end of corrugated, printing and packaging lines.
Who makes the Auto Robot Box Palletizer?
The Auto Robot Box Palletizer is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the Auto Robot Box Palletizer cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the Auto Robot Box Palletizer. You can enquire through RobotAIGeek for current pricing.
What is the Auto Robot Box Palletizer used for?
The Auto Robot Box Palletizer is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Auto Robot Box Palletizer?
The Auto Robot Box Palletizer has a payload capacity of 100 kg.
