Auto Robot Cardboard Palletizer
DESCRIPTION
Auto Robot Cardboard Palletizer is an Industrial-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 100 kg payload.

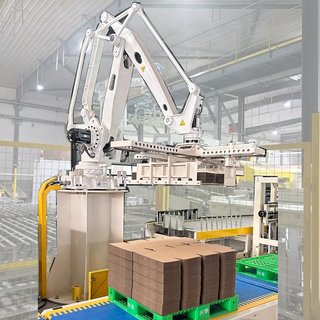

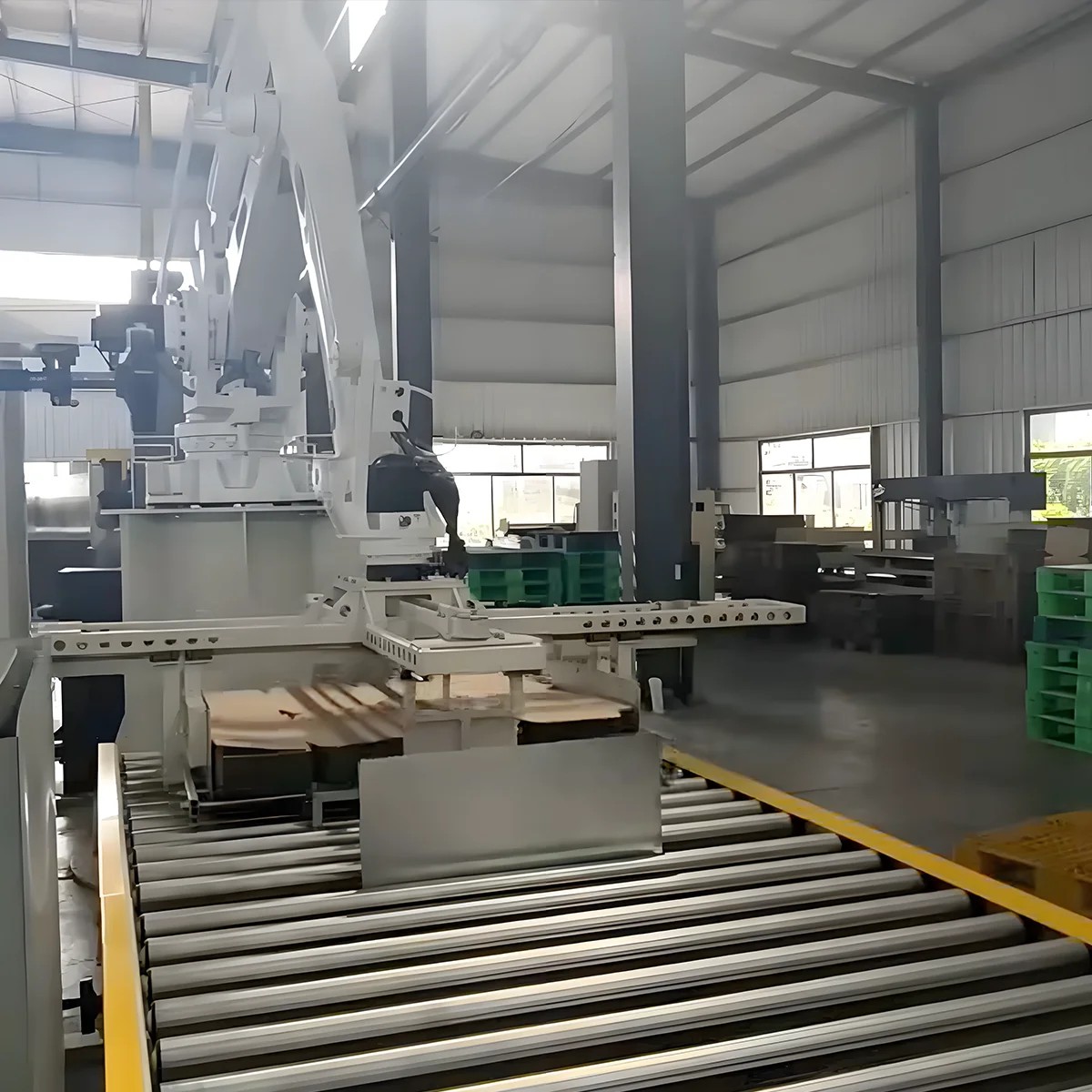

The GOJON Auto Robot Cardboard Palletizer is a robotic palletizing cell from Shandong Gojon Precision Technology built for corrugator lines. An industrial robot arm with grippers made for large-format corrugated sheets picks and stacks cardboard bundles without crushing the flutes, using 3D vision to align each stack. It runs at up to 22 cycles per minute (up to 38 bundles per minute) with ±2 mm positioning accuracy, uses a Siemens PLC, and links to GOJON's Production Management System for automatic job changes.
FEATURES
- Robotic cardboard palletizing cell built around an industrial robot arm
- Grippers for large-format corrugated sheets and stacks that avoid crushing the flutes
- 3D vision alignment of cardboard stacks
- Siemens PLC and high-precision drives
- Links to GOJON's Production Management System (PMS) for automatic job changes and output tracking
- Up to 22 palletizing cycles per minute, up to 38 bundles per minute
- Bundles of 5-25 sheets, up to 50 kg
- Palletizing position accuracy ±2 mm
- Maximum grab load 100 kg
- Maximum stacking area 1650 x 1650 mm, maximum stacking height 2200 mm
- Pallet sizes 1000 x 1000 mm to 1500 x 1500 mm
- Pallet change time 5 seconds
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor corrugated board plant, end of the corrugator line |
| Actuators | Industrial robot arm with corrugated-sheet gripper (end-of-arm tooling) |
| Sensing & Compute | |
| Sensors | 3D vision for stack orientation and alignment |
| Software / AI | Siemens PLC control; GOJON Production Management System (PMS) integration |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor corrugated board plant, end of the corrugator line |
| Actuators | Industrial robot arm with corrugated-sheet gripper (end-of-arm tooling) |
| Sensing & Compute | |
| Sensors | 3D vision for stack orientation and alignment |
| Software / AI | Siemens PLC control; GOJON Production Management System (PMS) integration |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Auto Robot Cardboard Palletizer?
The GOJON Auto Robot Cardboard Palletizer is a robotic palletizing cell from Shandong Gojon Precision Technology built for corrugator lines. An industrial robot arm with grippers made for large-format corrugated sheets picks and stacks cardboard bundles without crushing the flutes, using 3D vision to align each stack.
Who makes the Auto Robot Cardboard Palletizer?
The Auto Robot Cardboard Palletizer is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the Auto Robot Cardboard Palletizer cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the Auto Robot Cardboard Palletizer. You can enquire through RobotAIGeek for current pricing.
What is the Auto Robot Cardboard Palletizer used for?
The Auto Robot Cardboard Palletizer is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Auto Robot Cardboard Palletizer?
The Auto Robot Cardboard Palletizer has a payload capacity of 100 kg.
