General Robot Palletizer
DESCRIPTION
General Robot Palletizer is an Industrial-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 100 kg payload.

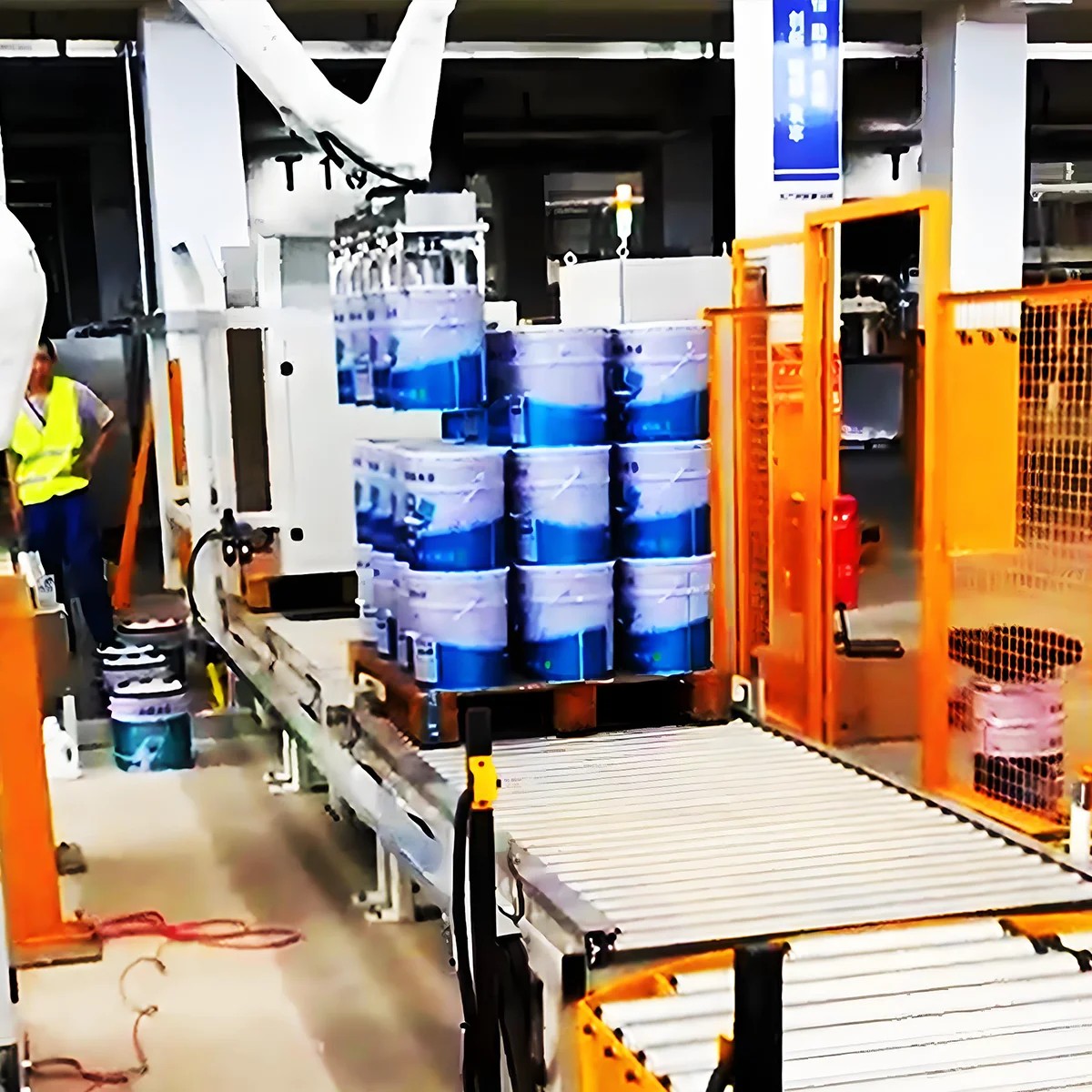

The GOJON General Robot Palletizer is Shandong Gojon Precision Technology's general-purpose robotic palletizing cell. The same industrial robot platform takes interchangeable end-of-arm tooling for boxes, bags, bottles, barrels or corrugated stacks, with optional 3D vision and AI path planning. It palletizes at up to 22 cycles per minute with ±2 mm positioning accuracy and up to 100 kg per grab, inside a cell with emergency stops, light curtains and safety fencing, controlled through GOJON's Production Management System.
FEATURES
- General-purpose robotic palletizing platform built around an industrial robot arm
- Interchangeable end-of-arm tooling for boxes, bags, bottles, barrels and cardboard stacks
- Optional 3D vision recognition and AI path planning
- Emergency stops, light curtains and safety fencing
- Controlled through GOJON's Production Management System (PMS)
- Up to 22 palletizing cycles per minute, up to 38 bundles per minute
- Palletizing position accuracy ±2 mm
- Maximum grab load 100 kg
- Maximum stacking area 1650 x 1650 mm, maximum stacking height 2200 mm
- Pallet sizes 1000 x 1000 mm to 1500 x 1500 mm
- Pallet change time 5 seconds
- Integrates with GOJON's Whole Factory Conveyor System
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line packaging area |
| Actuators | Industrial robot arm with interchangeable end-of-arm tooling |
| Sensing & Compute | |
| Sensors | Optional 3D vision recognition system, light curtains |
| Software / AI | AI-optimized path planning; GOJON Production Management System (PMS) control |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line packaging area |
| Actuators | Industrial robot arm with interchangeable end-of-arm tooling |
| Sensing & Compute | |
| Sensors | Optional 3D vision recognition system, light curtains |
| Software / AI | AI-optimized path planning; GOJON Production Management System (PMS) control |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the General Robot Palletizer?
The GOJON General Robot Palletizer is Shandong Gojon Precision Technology's general-purpose robotic palletizing cell. The same industrial robot platform takes interchangeable end-of-arm tooling for boxes, bags, bottles, barrels or corrugated stacks, with optional 3D vision and AI path planning.
Who makes the General Robot Palletizer?
The General Robot Palletizer is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the General Robot Palletizer cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the General Robot Palletizer. You can enquire through RobotAIGeek for current pricing.
What is the General Robot Palletizer used for?
The General Robot Palletizer is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the General Robot Palletizer?
The General Robot Palletizer has a payload capacity of 100 kg.
