DESCRIPTION
RTB08 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 150 kg, 800 kg payload.

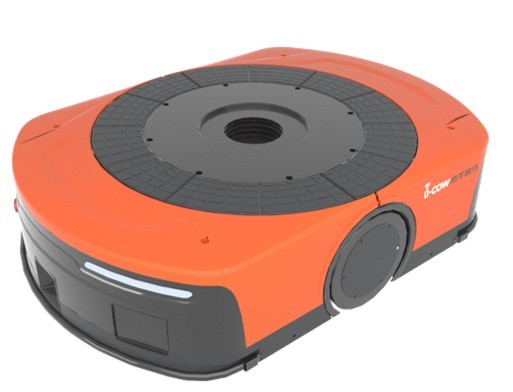

The RTB08 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station. It is rated for 800 kg and lifts by 60 mm, weighs 150 kg and measures 980 x 680 x 245 mm. It travels at up to 1.2 m/s with ±10 mm positioning accuracy and a minimum turning diameter of 980 mm, runs on a 48 V, 27 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 800 kg
- Lift height 60 mm

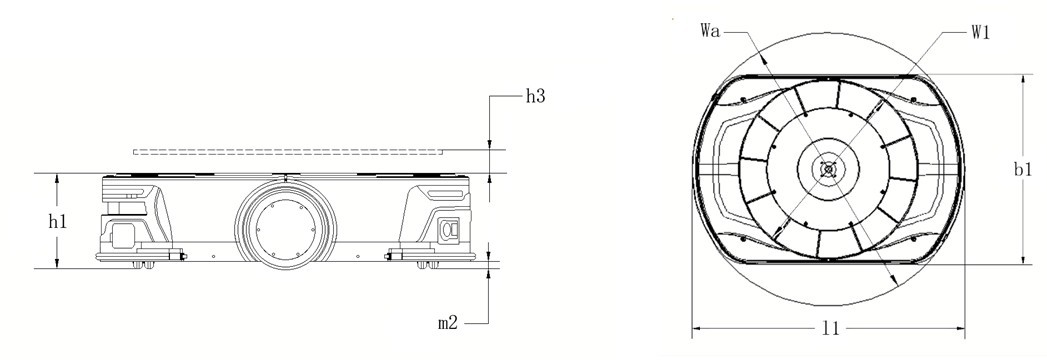

- Overall dimensions 980 x 680 x 245 mm (L x W x H)
- Service weight 150 kg
- Turning diameter 980 mm
- Travel speed 0-1.2 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 27 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 980 mm × W 680 mm × H 245 mm |
| Payload | 800 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 980 mm × W 680 mm × H 245 mm |
| Payload | 800 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the RTB08?
The RTB08 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station. It is rated for 800 kg and lifts by 60 mm, weighs 150 kg and measures 980 x 680 x 245 mm.
Who makes the RTB08?
The RTB08 is made by i-Cow, a robotics company based in China.
How much does the RTB08 cost?
i-Cow has not publicly announced pricing for the RTB08. You can enquire through RobotAIGeek for current pricing.
What is the RTB08 used for?
The RTB08 is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the RTB08?
The RTB08 has a payload capacity of 800 kg.
How much does the RTB08 weigh?
The RTB08 weighs 150 kg.
How fast is the RTB08?
The RTB08 can move at speeds of up to 4.32 km/h.
