DESCRIPTION

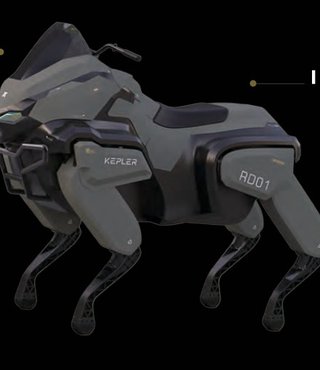

The Qilin Rider (RD01) is the manned variant of Kepler's heavy-duty quadruped: the same 12-actuator planetary roller screw platform with over 550 kg static payload and 150 kg rated dynamic payload, extended with a riding module, multimedia dashboard, and mechanical release latch so it can carry a human passenger as well as cargo. At 310 kg with 4.5-8 hour endurance, 45° climbing and IPX5/IP67 protection, it targets mountain patrol, outdoor geospatial survey and emergency personnel escort.
FEATURES
- Manned ride mode with multimedia dashboard (temperature/humidity/altitude readout, app interaction)
- static payload over 550 kg
- 12x planetary roller screw actuators at 27,000 N
- 8-hour endurance
- IPX5/IP67
- front auxiliary lighting
- real-time video transmission.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 310 kg |
|---|---|
| Dimensions | H 1.45 m |
| Payload | 150 kg |
| Mobility | |
| Movement Type | Quadruped |
| Speed | 5.4 km/h |
| Environment | IPX5 whole machine / IP67 core components |
| Actuators | 12x planetary roller screw actuators |
| Power | |
| Battery Life | 4.5-8 h |
| Sensing & Compute | |
| Sensors | ultra-wide-angle 3D LiDAR |
| Connectivity | Dual-band Wi-Fi 6, Bluetooth 5.4/4.2/2.1, 4G/5G module, optional Beidou+GPS+cellular tri-mode positioning |
| Software / AI | Manned riding & locomotion control, autonomous path planning, smart mobile app, graphical programming, OTA |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 310 kg |
|---|---|
| Dimensions | H 1.45 m |
| Payload | 150 kg |
| Mobility | |
| Movement Type | Quadruped |
| Speed | 5.4 km/h |
| Environment | IPX5 whole machine / IP67 core components |
| Actuators | 12x planetary roller screw actuators |
| Power | |
| Battery Life | 4.5-8 h |
| Sensing & Compute | |
| Sensors | ultra-wide-angle 3D LiDAR |
| Connectivity | Dual-band Wi-Fi 6, Bluetooth 5.4/4.2/2.1, 4G/5G module, optional Beidou+GPS+cellular tri-mode positioning |
| Software / AI | Manned riding & locomotion control, autonomous path planning, smart mobile app, graphical programming, OTA |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Qilin Rider?
The Qilin Rider (RD01) is the manned variant of Kepler's heavy-duty quadruped: the same 12-actuator planetary roller screw platform with over 550 kg static payload and 150 kg rated dynamic payload, extended with a riding module, multimedia dashboard, and mechanical release latch so it can carry a human passenger as wel…
Who makes the Qilin Rider?
The Qilin Rider is made by Kepler Robotics, a robotics company based in China.
How much does the Qilin Rider cost?
Kepler Robotics has not publicly announced pricing for the Qilin Rider. You can enquire through RobotAIGeek for current pricing.
What is the Qilin Rider used for?
The Qilin Rider is designed for delivery and patrol. It is used in defence, warehouse & logistics, and security & patrol settings.
What is the payload capacity of the Qilin Rider?
The Qilin Rider has a payload capacity of 150 kg.
How much does the Qilin Rider weigh?
The Qilin Rider weighs 310 kg.
How fast is the Qilin Rider?
The Qilin Rider can move at speeds of up to 5.4 km/h.
What is the battery life of the Qilin Rider?
The Qilin Rider runs for 4.5-8 h on a charge.
