PreciseFlex c8A

Brooks Automation

Collaborative-Robot

United StatesReleased

★Not rated yet

Compare

Sources:

preciseflexrobots.com

Industries:

Electronics Manufacturing

Uses:

Material-Handling Pick-and-placeMachine feeding, kitting, storage and retrieval, mobile manipulation

Price:

Not announced

Model:

Brooks PreciseFlex c8A six-axis collaborative robot

DESCRIPTION

PreciseFlex c8A is a Collaborative-Robot from Brooks Automation. It is built for Material-Handling, Pick-and-place, Machine feeding, kitting, storage and retrieval, mobile manipulation. Key figures: 46 kg, 8 kg payload, 985 mm reach, 6 degrees of freedom.

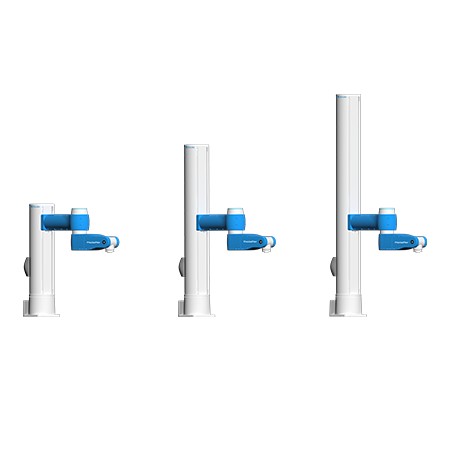

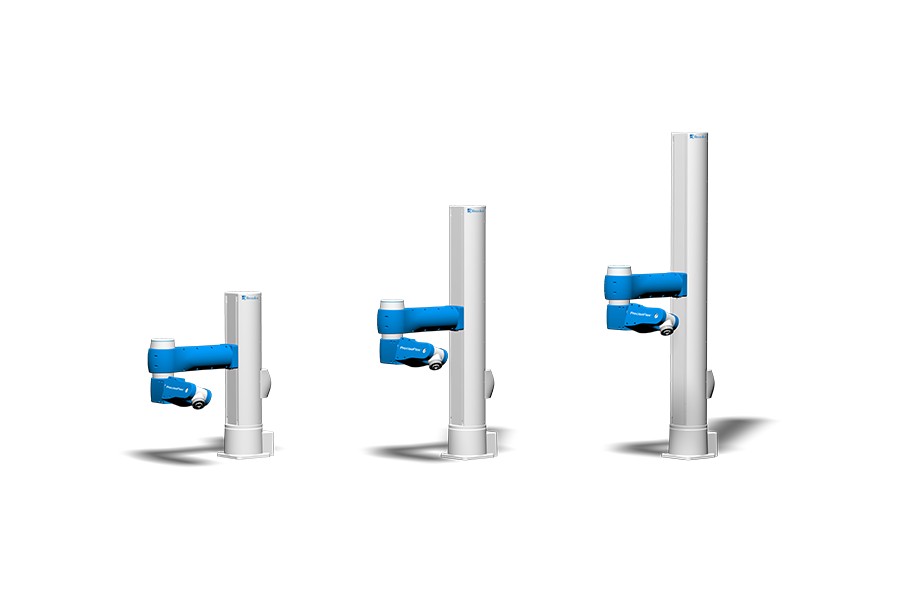

The PreciseFlex c8A is the six-axis member of Brooks' PreciseFlex family. It keeps the tall-column, horizontally articulated layout of the four-axis models but adds a wrist, so it can tilt and orient parts for machine feeding, small-parts handling, kitting, storage and retrieval and mobile applications. It carries 8 kg and has a rotary base (+/-168 degrees), a Z column of 500, 1,000 or 1,420 mm, an elbow and three wrist joints. Horizontal reach is 896 mm with joint 5 at 90 degrees or 985 mm with it at 0 degrees. It moves at up to 500 mm/s horizontally and 600 mm/s vertically and repeats to +/-0.02 mm at the tool flange. The controller is built in; it draws 100-250 W, offers EtherNet/IP and Modbus/TCP, 12 inputs and 8 outputs plus end-of-arm I/O and two air lines, and weighs 46-65 kg depending on the column.

FEATURES

6-axis collaborative robot on a tall Z column 500 / 1,000 / 1,420 mm
Payload 8 kg
reach 896 mm (J5 at 90 deg) / 985 mm (J5 at 0 deg)
500 mm/s horizontal, 600 mm/s vertical
repeatability +/-0.020 mm
Wrist joints J4 +100/-220 deg, J5 +/-110 deg, J6 +/-295 deg
EtherNet/IP, Modbus/TCP
12 DI / 8 DO
end-of-arm I/O
two air lines
90-264 VAC, 100-250 W
46-65 kg
Collaborative operation (ISO 10218, ISO/TS 15066)
hand-guided teaching
embedded controller
Guidance Development Studio / GPL / TCS API programming

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	46 kg
Payload	8 kg
Reach	985 mm
Repeatability	±0.02 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	6
Environment	Machine-tending, kitting and storage cells; mobile manipulators (indoor)
Sensing & Compute
Connectivity	100 Mb Ethernet; EtherNet/IP; Modbus/TCP; 12 DI / 8 DO
Software / AI	Guidance Development Studio; GPL; TCS API

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	46 kg
Payload	8 kg
Reach	985 mm
Repeatability	±0.02 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	6
Environment	Machine-tending, kitting and storage cells; mobile manipulators (indoor)
Sensing & Compute
Connectivity	100 Mb Ethernet; EtherNet/IP; Modbus/TCP; 12 DI / 8 DO
Software / AI	Guidance Development Studio; GPL; TCS API

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the PreciseFlex c8A?

Who makes the PreciseFlex c8A?

The PreciseFlex c8A is made by Brooks Automation, a robotics company based in United States.

How much does the PreciseFlex c8A cost?

Brooks Automation has not publicly announced pricing for the PreciseFlex c8A. You can enquire through RobotAIGeek for current pricing.

What is the PreciseFlex c8A used for?

The PreciseFlex c8A is designed for material-handling, pick-and-place, and machine feeding, kitting, storage and retrieval, mobile manipulation. It is used in electronics and manufacturing settings.
