DESCRIPTION

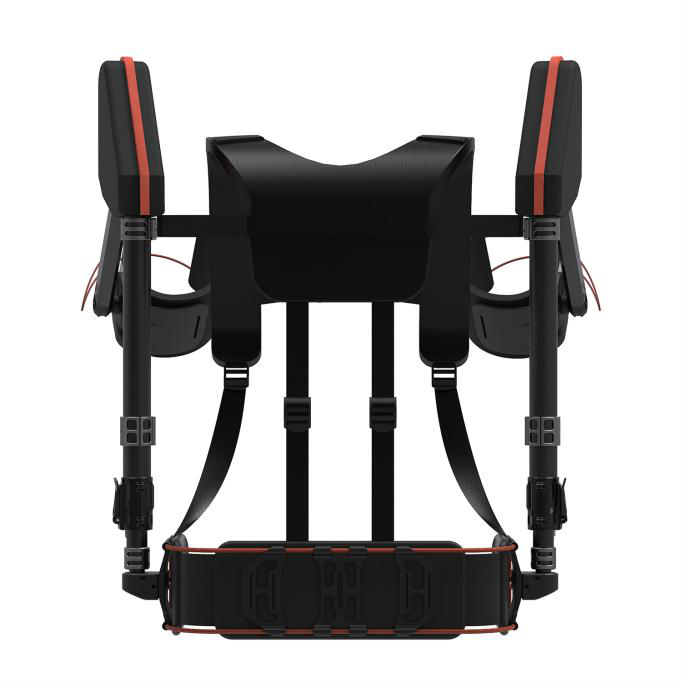

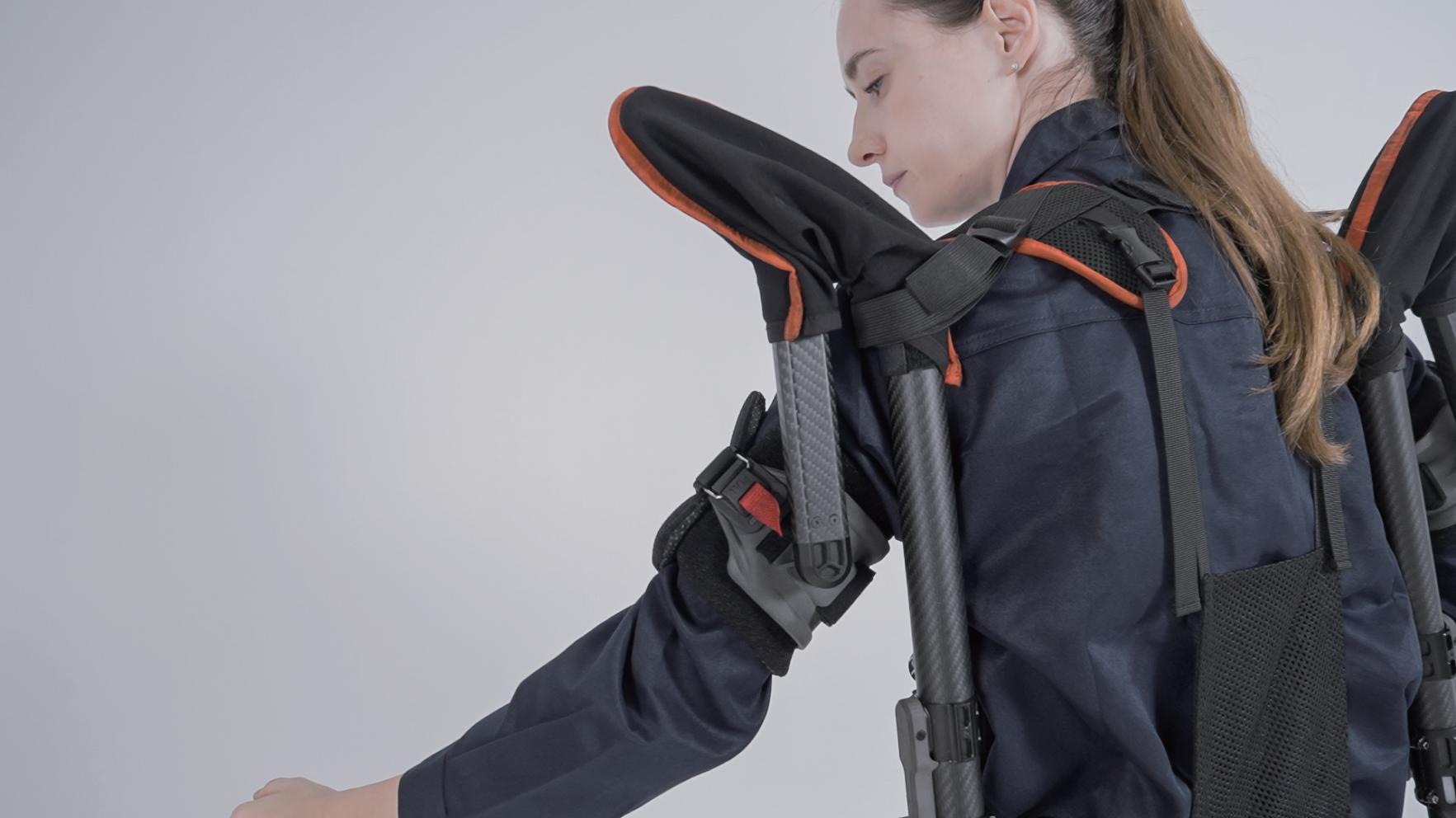

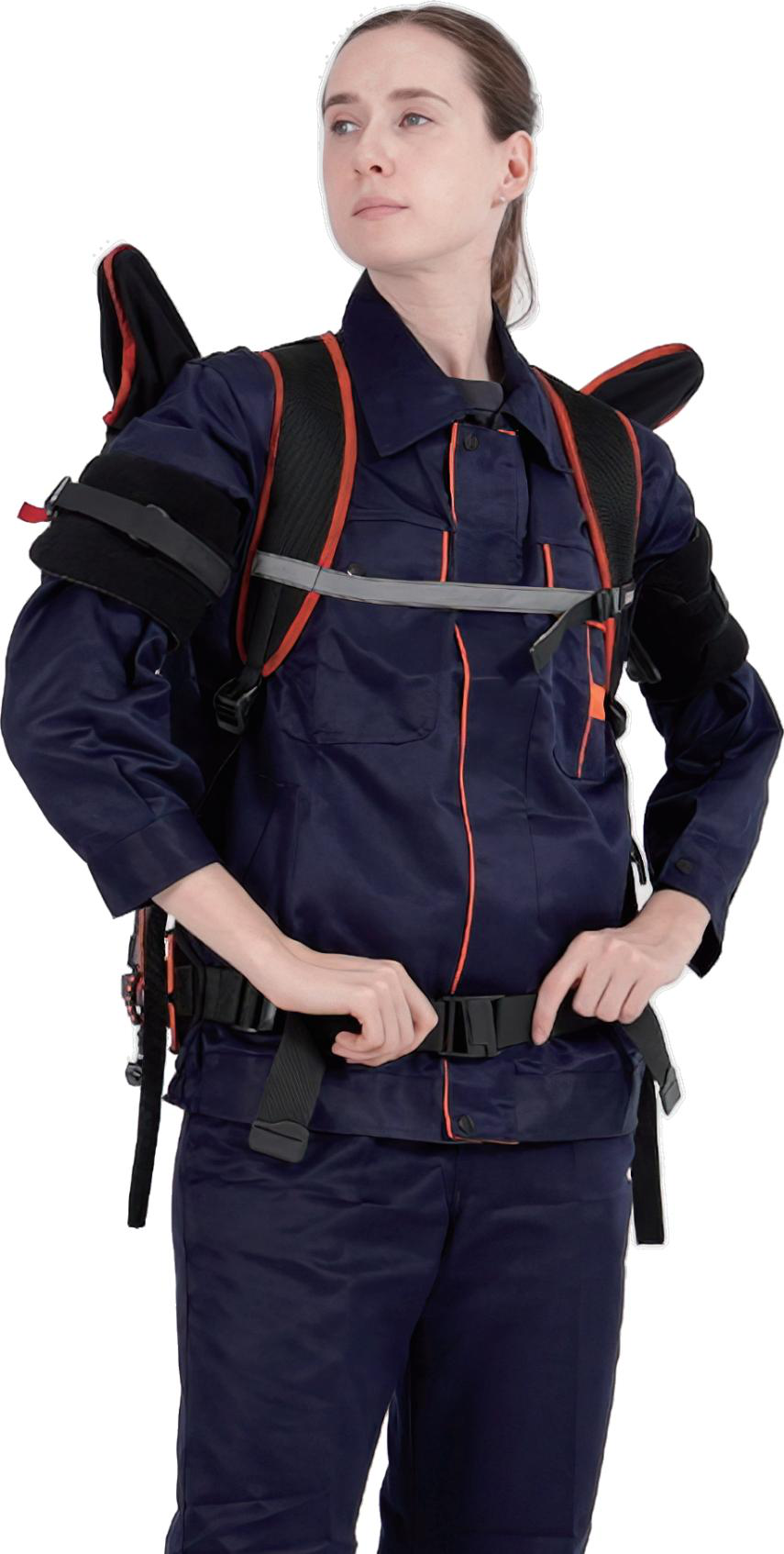

The PES-U — Passive Elastic System, UpLimb — is the unpowered half of ULS Robotics' range, and its advantages follow directly from having no battery. There is nothing to charge, so there is no limit on where or how long it can be worn, and a mechanical energy-storage drive delivers assistance smoothly rather than in motor steps, up to 10 kg at maximum. It weighs 1.9 kg, fits wearers from 40 to 100 kg, and offers eight degrees of freedom with a wide range of motion — not just up and down but side-to-side tilting and other directions, which is where rigid passive frames usually fight the wearer. A lever disengages the power assist and a pull ring re-engages it, and single-arm control means one side can be boosted independently. It goes on in under a minute, survives more than two million cycles, and is waterproof and dustproof enough for outdoor or humid work, with detachable, washable soft parts. Construction is nylon engineering plastic, aviation aluminium alloy and carbon fibre.
FEATURES
- Fully mechanical energy-storage drive with no battery — no charging, and no restriction on location or duration of use
- up to 10 kg of comprehensive assistance delivered smoothly
- 1.9 kg total weight suiting wearers from 40 to 100 kg
- 8 degrees of freedom with wide range of motion including lateral tilting
- lever for power disengagement and pull ring for re-engagement, with independent single-arm control boost
- service life beyond 2 million cycles
- waterproof and dustproof for outdoor and humid conditions, with detachable washable soft parts
- worn in under a minute
- nylon engineering plastic, aviation aluminium alloy and carbon fibre construction.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1.9 kg |
|---|---|
| Dimensions | L 690 mm × W 520 mm × H 175 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Hybrid |
| Degrees of Freedom | 8 |
| Manipulation | Low |
| Environment | Indoor and outdoor; waterproof and dustproof; detachable washable soft parts |
| Actuators | Passive mechanical energy-storage drive; 8 DoF; lever for power disengagement and pull ring for engagement; single-arm control power boost |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1.9 kg |
|---|---|
| Dimensions | L 690 mm × W 520 mm × H 175 mm |
| Payload | 10 kg |
| Mobility | |
| Movement Type | Hybrid |
| Degrees of Freedom | 8 |
| Manipulation | Low |
| Environment | Indoor and outdoor; waterproof and dustproof; detachable washable soft parts |
| Actuators | Passive mechanical energy-storage drive; 8 DoF; lever for power disengagement and pull ring for engagement; single-arm control power boost |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PES-U?
The PES-U — Passive Elastic System, UpLimb — is the unpowered half of ULS Robotics' range, and its advantages follow directly from having no battery.
Who makes the PES-U?
The PES-U is made by ULS Robotics, a robotics company based in China.
How much does the PES-U cost?
ULS Robotics has not publicly announced pricing for the PES-U. You can enquire through RobotAIGeek for current pricing.
What is the PES-U used for?
The PES-U is designed for assistance, overhead work, physical lifting, and airport ground services. It is used in energy, mining, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the PES-U?
The PES-U has a payload capacity of 10 kg.
How much does the PES-U weigh?
The PES-U weighs 1.9 kg.
How many degrees of freedom does the PES-U have?
The PES-U has 8 degrees of freedom.
