DESCRIPTION
CETC Yun Qing Shoulder Exoskeleton is an Exosuit from CETC Robotics. It is built for Assistance, Construction work, intelligent manufacturing and equipment assembly. Key figures: 5 kg, 240 min runtime, 3 degrees of freedom.
The 'Yun Qing' is CETC's upper-limb exoskeleton, built for the specific injury that overhead work causes: shoulder and arm fatigue in construction installation, equipment assembly, tunnel drilling and overhead fitting. It senses the wearer's upward movement trend and feeds in progressive lifting support as the arms rise. The engineering choice that defines it is a Bowden cable drive with the power system mounted at the waist, which leaves the upper limbs entirely motor-free — the arms stay light and flexible while the heavy actuation sits on the hips, where the wearer's skeleton is better able to carry it. The shoulder joint gives 3 degrees of freedom with what CETC describes as zero lag, multi-sensor fusion handles force transmission, and the structure is ultra-light carbon fibre. At 5.0 kg it runs four hours, fits wearers between 160 and 190 cm, and delivers an assistance efficiency of 40% or better across a working range of -20 to 50 degrees Celsius.
FEATURES
- 5.0 kg total weight
- Fits users from 160 to 190 cm tall
- Battery life of 4 hours
- Assists the shoulder joint with an assistance efficiency of 40% or better
- 3 degrees of freedom at the shoulder joint, described as flexible with zero lag
- Motor-free upper limb: a flexible Bowden cable drive places the power system at the waist, keeping the arms light
- Multi-sensor fusion perception for precise force transmission
- Ultra-light carbon fibre construction
- High-performance CPU driving a high power density drive
- Senses the upward movement trend and provides progressive lifting support
- Operating temperature from -20 to 50 degrees Celsius
- Applications covering posture maintenance, lifting and reducing upper limb muscle strain
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 5 kg |
|---|---|
| Mobility | |
| Movement Type | Other |
| Degrees of Freedom | 3 |
| Environment | Industrial and construction sites; -20 to 50 degrees Celsius |
| Actuators | Upper-limb exoskeleton with a 3-degree-of-freedom shoulder joint driven by a flexible Bowden cable from a waist-mounted power system, leaving the upper limbs motor-free; ultra-light carbon fibre structure |
| Power | |
| Battery Life | 4 h |
| Sensing & Compute | |
| Software / AI | Multi-sensor fusion perception for precise force transmission with progressive lifting support triggered by upward movement intent |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 5 kg |
|---|---|
| Mobility | |
| Movement Type | Other |
| Degrees of Freedom | 3 |
| Environment | Industrial and construction sites; -20 to 50 degrees Celsius |
| Actuators | Upper-limb exoskeleton with a 3-degree-of-freedom shoulder joint driven by a flexible Bowden cable from a waist-mounted power system, leaving the upper limbs motor-free; ultra-light carbon fibre structure |
| Power | |
| Battery Life | 4 h |
| Sensing & Compute | |
| Software / AI | Multi-sensor fusion perception for precise force transmission with progressive lifting support triggered by upward movement intent |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CETC Yun Qing Shoulder Exoskeleton?
The 'Yun Qing' is CETC's upper-limb exoskeleton, built for the specific injury that overhead work causes: shoulder and arm fatigue in construction installation, equipment assembly, tunnel drilling and overhead fitting.
Who makes the CETC Yun Qing Shoulder Exoskeleton?
The CETC Yun Qing Shoulder Exoskeleton is made by CETC Robotics, a robotics company based in China.
How much does the CETC Yun Qing Shoulder Exoskeleton cost?
CETC Robotics has not publicly announced pricing for the CETC Yun Qing Shoulder Exoskeleton. You can enquire through RobotAIGeek for current pricing.
What is the CETC Yun Qing Shoulder Exoskeleton used for?
The CETC Yun Qing Shoulder Exoskeleton is designed for assistance, construction work, intelligent manufacturing and equipment assembly, and tunnel drilling. It is used in energy, construction, and manufacturing settings.
How much does the CETC Yun Qing Shoulder Exoskeleton weigh?
The CETC Yun Qing Shoulder Exoskeleton weighs 5 kg.
What is the battery life of the CETC Yun Qing Shoulder Exoskeleton?
The CETC Yun Qing Shoulder Exoskeleton runs for 4 h on a charge.
How many degrees of freedom does the CETC Yun Qing Shoulder Exoskeleton have?
The CETC Yun Qing Shoulder Exoskeleton has 3 degrees of freedom.
COMPARE WITH SIMILAR ROBOTS
See how this robot stacks up against its closest alternatives
- CETC Yun Qing Shoulder Exoskeleton vs FIT-HV PRO
- CETC Yun Qing Shoulder Exoskeleton vs FIT-U PRO
- CETC Yun Qing Shoulder Exoskeleton vs PES-U
- CETC Yun Qing Shoulder Exoskeleton vs PES-B

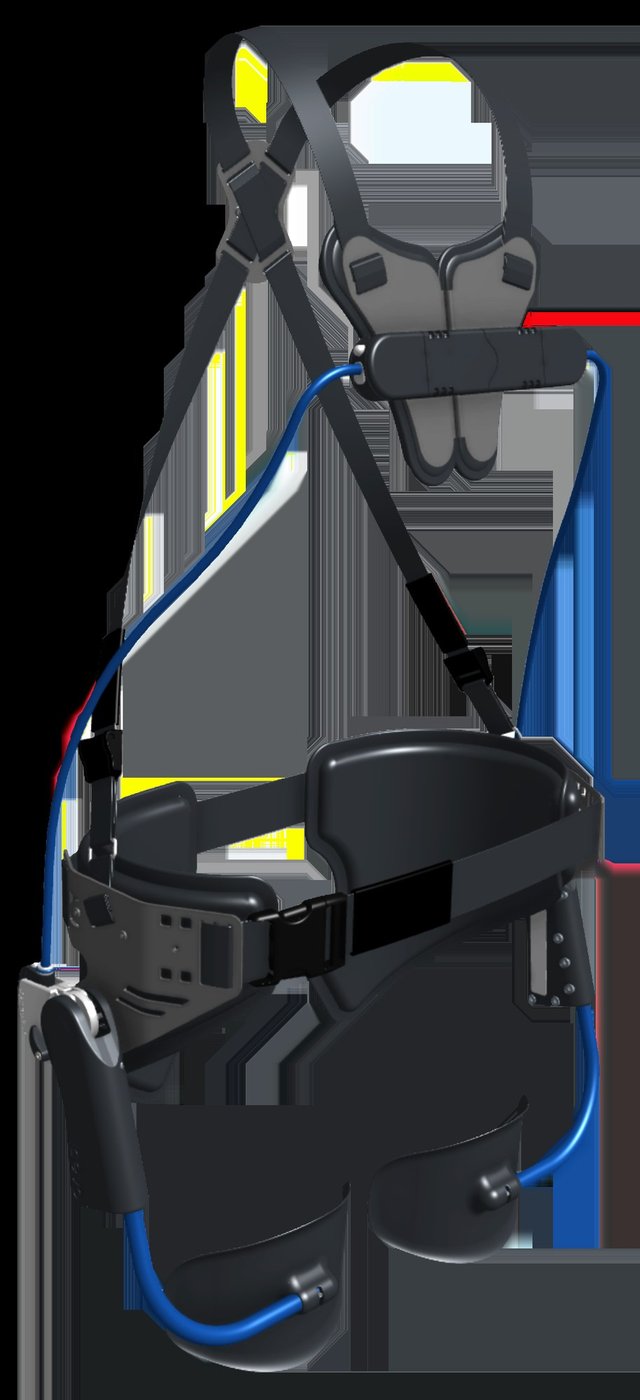

- CETC Yun Qing Shoulder Exoskeleton vs Laevo V2.57
