DESCRIPTION

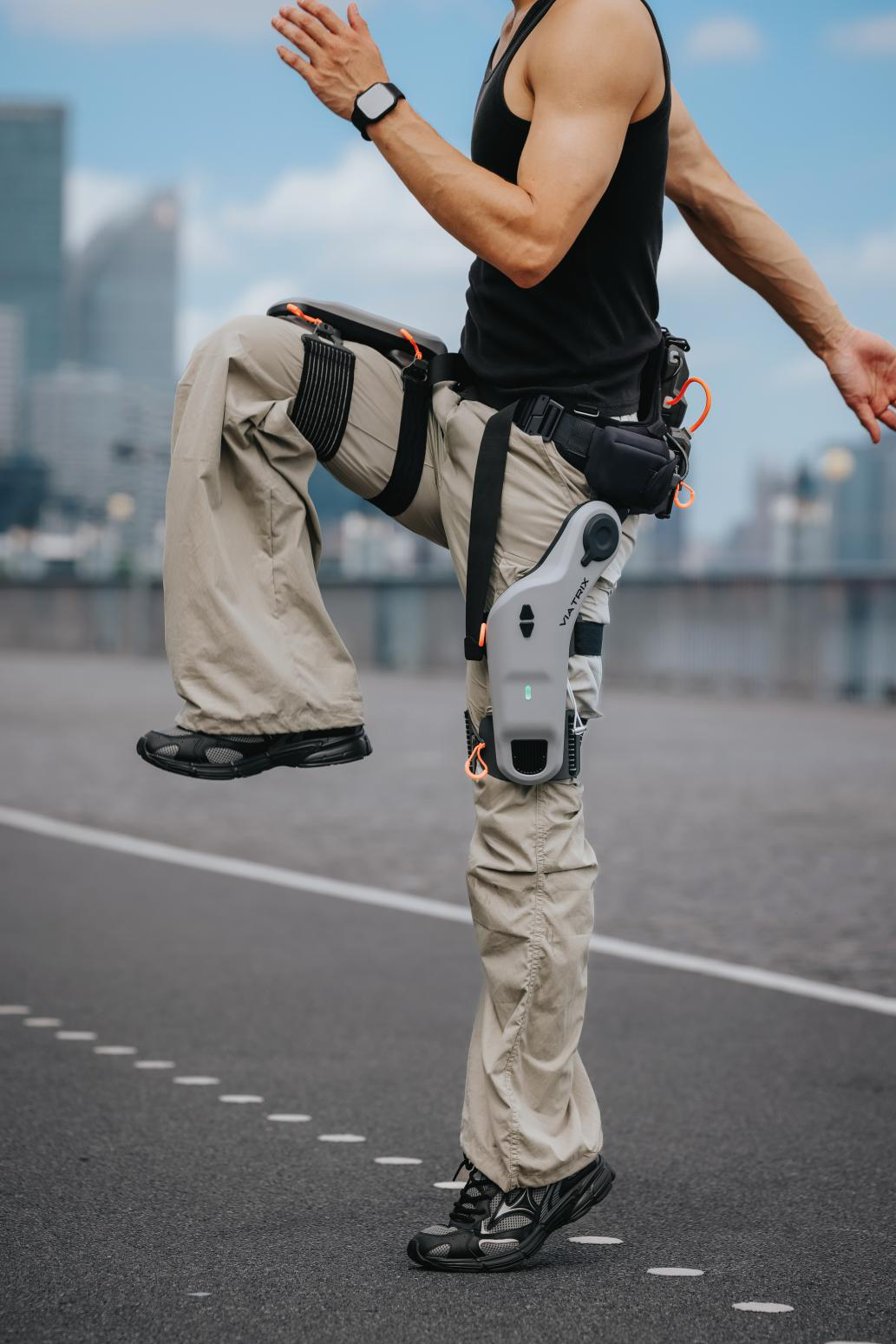

VIATRIX is ULS Robotics' first consumer-grade exoskeleton, and the engineering that distinguishes it is the hip. A floating hip joint mechanism the company calls FLOAT 360, paired with its leg motor design, lets the wearer do things exoskeletons normally prevent — full splits and deep squats — instead of being locked into a walking plane. It weighs 3.0 kg without battery and soft pack, folds to 400 by 400 by 270 mm, and delivers 46 N·m across both legs from a proprietary automotive-grade servo motor whose chips ULS credits for millisecond-level response. Two modes cover opposite problems: an AI-adaptive mode that assists hiking, walking, running and cycling, and a resistance mode that adds load for downhill control and fitness training. Each replaceable lithium battery is good for up to 25 km, and swapping one takes seconds, which is the company's answer to range anxiety. It works from -20 °C to 65 °C.
FEATURES

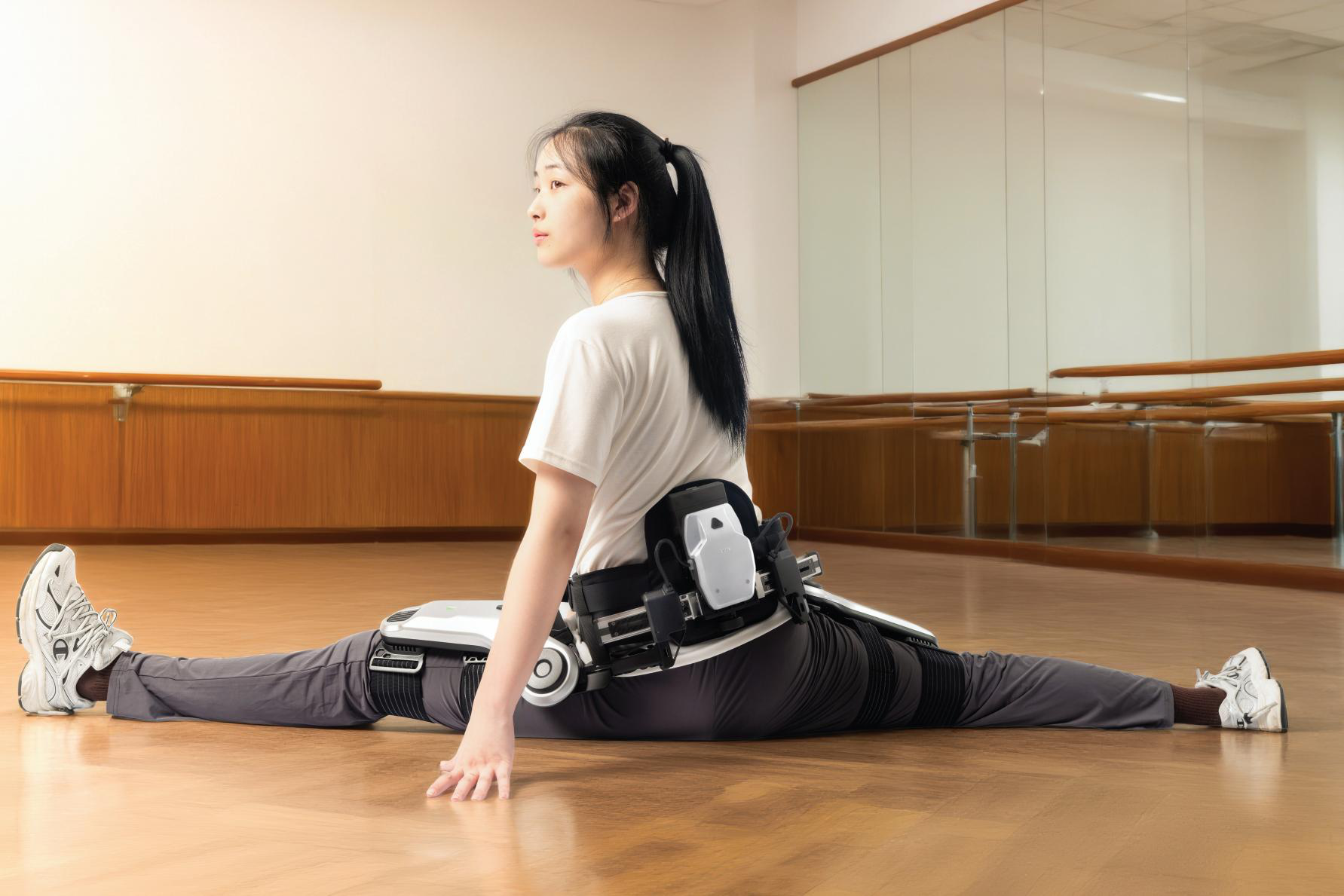

- FLOAT 360 floating hip joint mechanism allowing wide-range movements including full splits and deep squats
- 3.0 kg excluding battery and soft pack, folding to 400 x 400 x 270 mm
- 46 N·m maximum torque across two legs
- proprietary automotive-grade servo motor with integrated servo and gear system for millisecond-level response

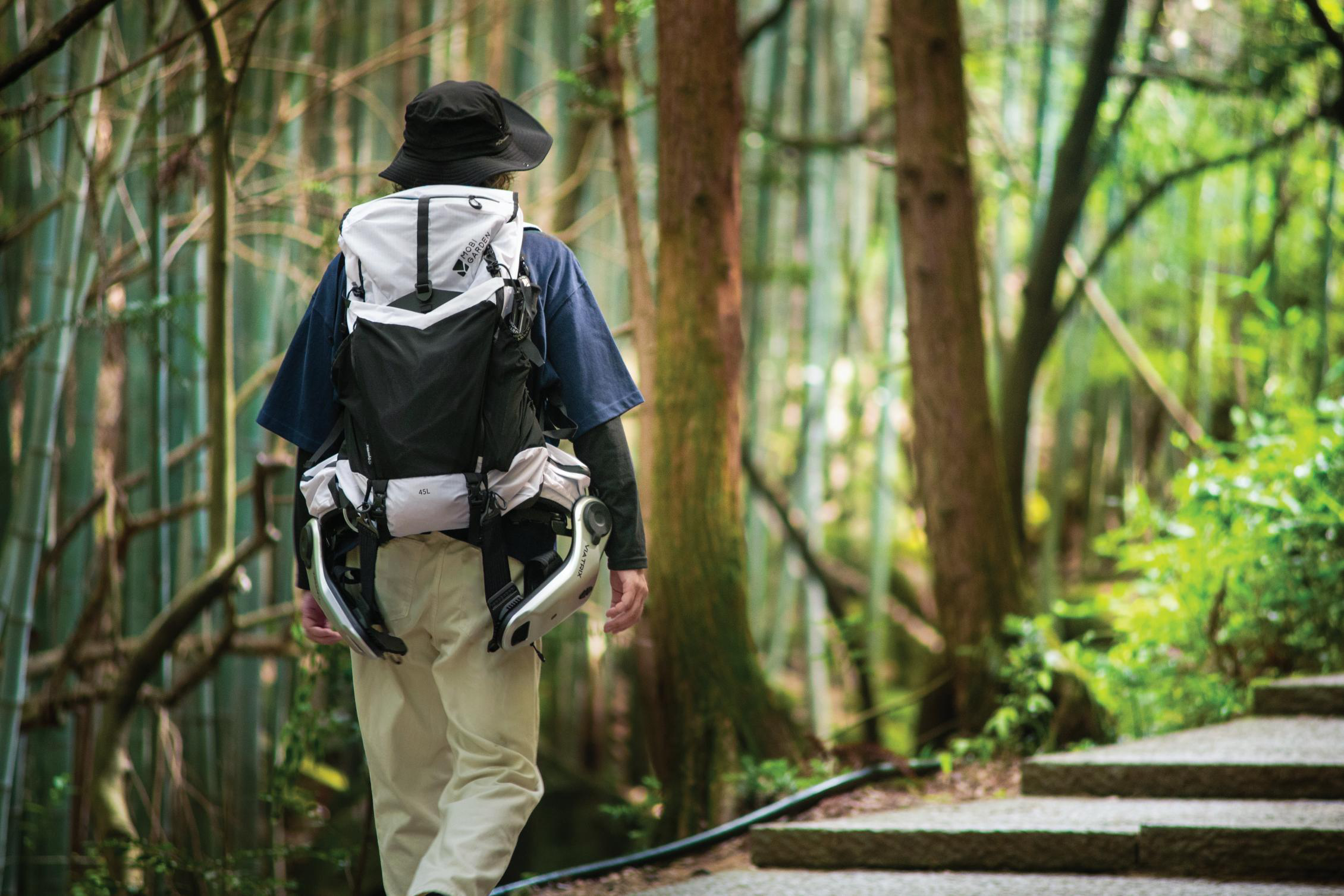

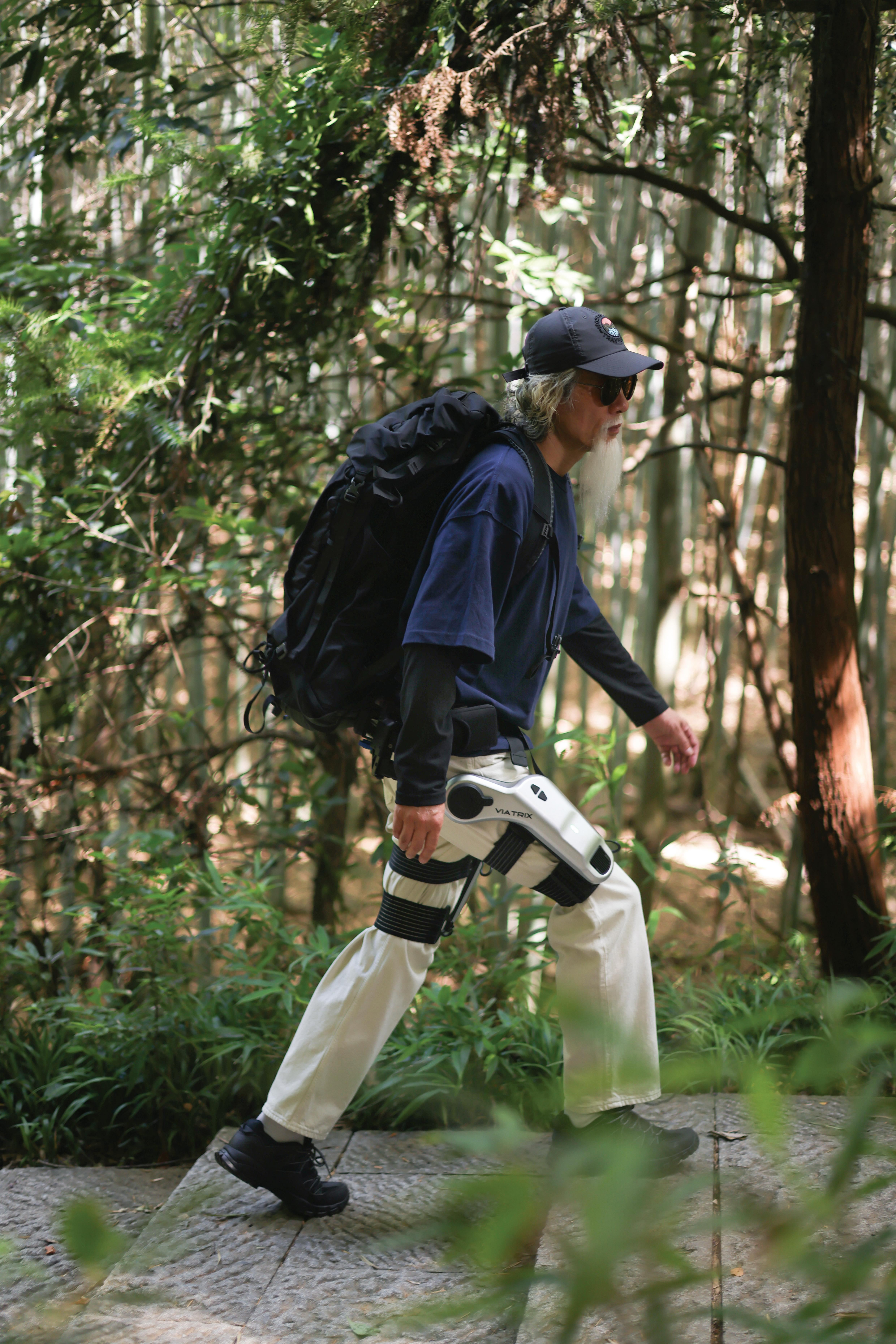

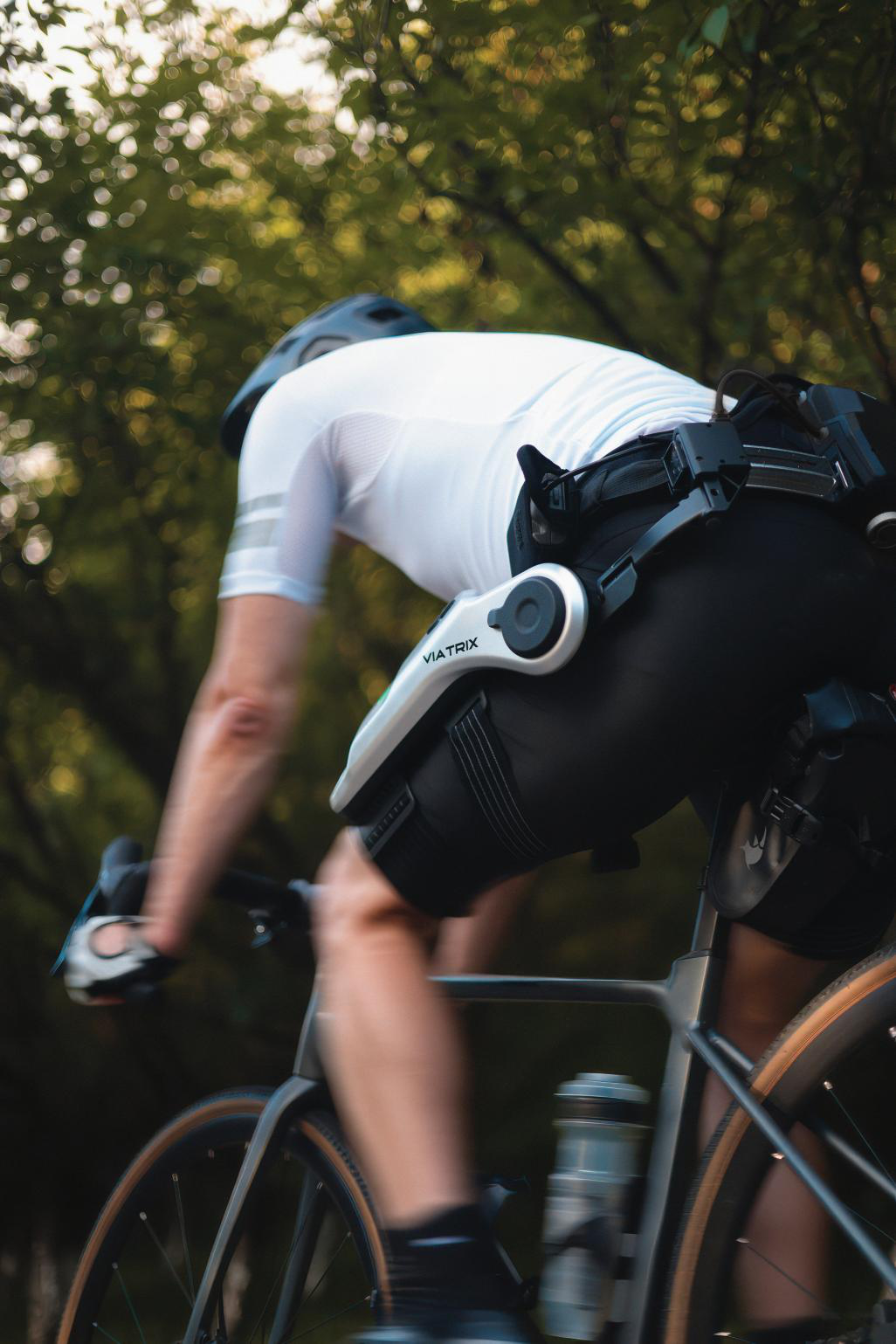

- AI-adaptive mode supporting hiking, walking, running and cycling, plus resistance mode for downhill control and fitness training
- replaceable lithium battery giving up to 25 km per pack with quick-release swapping
- 20 °C to 65 °C operating range.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 3 kg |
|---|---|
| Mobility | |
| Movement Type | Hybrid |
| Manipulation | Low |
| Environment | Outdoor and indoor, -20 °C to 65 °C, -20°C to 65°C |
| Actuators | FLOAT 360 floating hip joint mechanism with leg motor design; proprietary automotive-grade servo motor with integrated servo and gear system; 46 N·m maximum torque across both legs |
| Power | |
| Battery Life | Replaceable lithium battery, up to 25 km range per pack |
| Sensing & Compute | |
| Software / AI | AI-adaptive assistance mode and resistance mode |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 3 kg |
|---|---|
| Mobility | |
| Movement Type | Hybrid |
| Manipulation | Low |
| Environment | Outdoor and indoor, -20 °C to 65 °C, -20°C to 65°C |
| Actuators | FLOAT 360 floating hip joint mechanism with leg motor design; proprietary automotive-grade servo motor with integrated servo and gear system; 46 N·m maximum torque across both legs |
| Power | |
| Battery Life | Replaceable lithium battery, up to 25 km range per pack |
| Sensing & Compute | |
| Software / AI | AI-adaptive assistance mode and resistance mode |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VIATRIX?
VIATRIX is ULS Robotics' first consumer-grade exoskeleton, and the engineering that distinguishes it is the hip. A floating hip joint mechanism the company calls FLOAT 360, paired with its leg motor design, lets the wearer do things exoskeletons normally prevent — full splits and deep squats — instead of being locked i…
Who makes the VIATRIX?
The VIATRIX is made by ULS Robotics, a robotics company based in China.
How much does the VIATRIX cost?
ULS Robotics has not publicly announced pricing for the VIATRIX. You can enquire through RobotAIGeek for current pricing.
What is the VIATRIX used for?
The VIATRIX is designed for assistance, hiking and trail walking, running, and cycling. It is used in healthcare and homes settings.
How much does the VIATRIX weigh?
The VIATRIX weighs 3 kg.
