DESCRIPTION
P3-R600 is a Collaborative-Robot from Integra Robotics. It is built for Assembly, Dispensing, Machine-Tending. Key figures: 13 kg, 3 kg payload, 600 mm reach, 6 degrees of freedom.

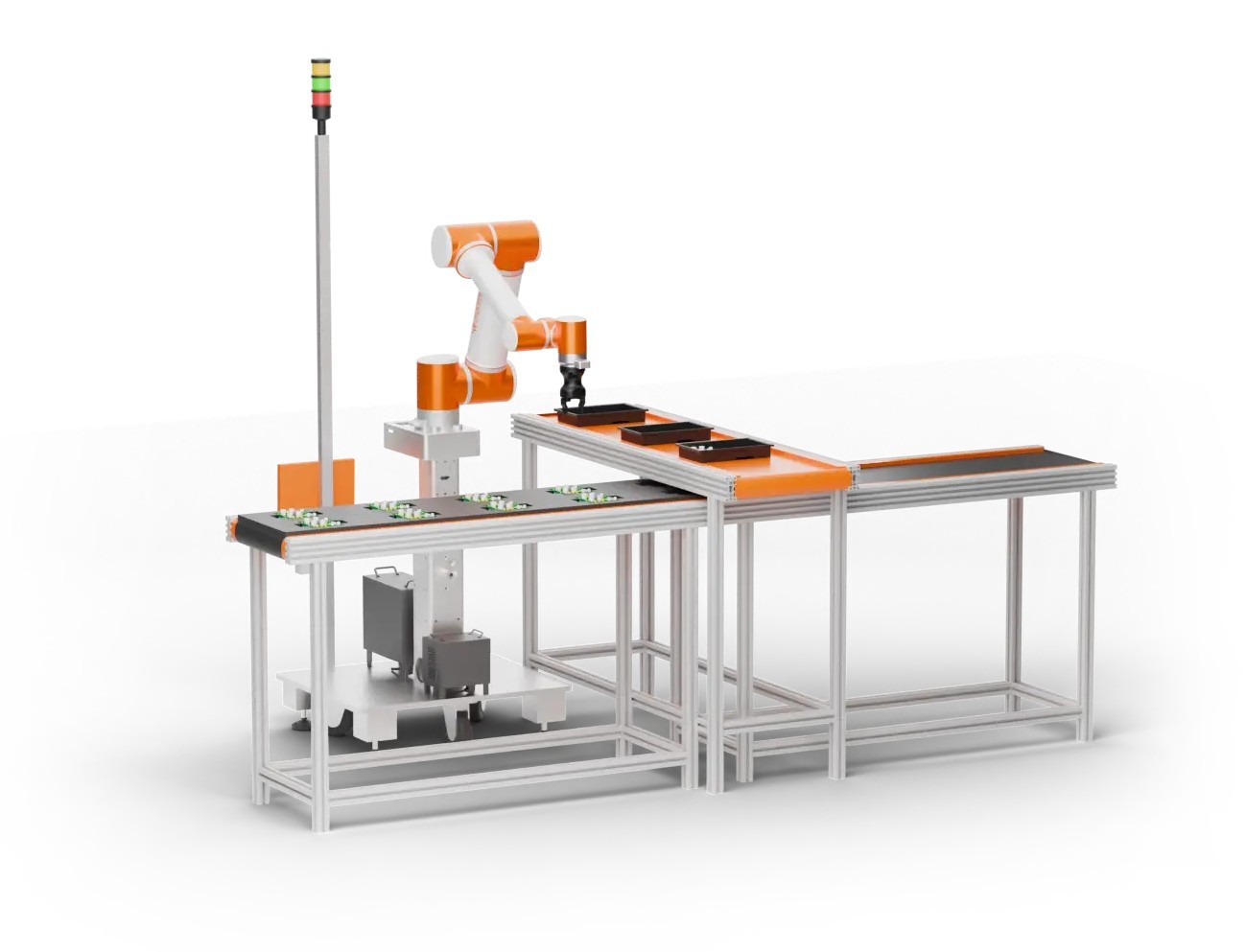

The P3-R600 is the smallest six-axis collaborative robot in Integra Robotics' P series, designed in Bengaluru for bench-top work cells. It carries up to 3 kg and reaches 600 mm, which suits small-part assembly, light material handling, machine tending, dispensing, inspection and laboratory automation next to human workers. The arm weighs 13 kg and repeats positions to within 0.02 mm. It draws about 150 W on average and up to 750 W at peak, has 19-bit joint encoders, friction brakes on every joint and an IP54 rating, communicates over Ethernet and can be installed on the floor, a wall or the ceiling. Integra sells the cobot with a first-year maintenance contract, locally stocked spare parts and technical support, and offers vision systems, end-of-arm tooling and teach pendants as accessories, as well as custom variants for other payloads and reaches.
FEATURES
- 6-axis collaborative robot arm
- Payload 3 kg
- Reach 600 mm
- Repeatability +/-0.02 mm
- Arm weight 13 kg
- Average power 150 W
- peak power 750 W
- IP54
- 19-bit encoder resolution
- Ethernet communication bus
- Friction brakes on all joints
- Mounting in any orientation: floor, wall or ceiling
- Applications: small-part assembly, light material handling, machine tending, dispensing, inspection, lab automation
- Accessories: vision systems, end-of-arm tooling, teach pendants
- Custom reach and payload variants on request
- Sold with a first-year annual maintenance contract (AMC), spare parts stocked in Bengaluru and 12x6 technical support
- Series: P3-R600, P5-R900 (5 kg / 900 mm), P10-R1300 (10 kg / 1,300 mm), P20-R2000 (20 kg / 2,000 mm)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13 kg |
|---|---|
| Payload | 3 kg |
| Reach | 600 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Indoor factory work cells and laboratories, IP54 |
| Sensing & Compute | |
| Connectivity | Ethernet |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13 kg |
|---|---|
| Payload | 3 kg |
| Reach | 600 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Indoor factory work cells and laboratories, IP54 |
| Sensing & Compute | |
| Connectivity | Ethernet |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the P3-R600?
The P3-R600 is the smallest six-axis collaborative robot in Integra Robotics' P series, designed in Bengaluru for bench-top work cells.
Who makes the P3-R600?
The P3-R600 is made by Integra Robotics, a robotics company based in India.
How much does the P3-R600 cost?
Integra Robotics has not publicly announced pricing for the P3-R600. You can enquire through RobotAIGeek for current pricing.
What is the P3-R600 used for?
The P3-R600 is designed for assembly, dispensing, machine-tending, and material-handling. It is used in automotive, electronics, research, and manufacturing settings.
What is the payload capacity of the P3-R600?
The P3-R600 has a payload capacity of 3 kg and a reach of 600 mm.
How much does the P3-R600 weigh?
The P3-R600 weighs 13 kg.
How many degrees of freedom does the P3-R600 have?
The P3-R600 has 6 degrees of freedom.
