DESCRIPTION
PreciseFlex 3400 is a Collaborative-Robot from Brooks Automation. It is built for Material-Handling, Pick-and-place, Electronics test and handling, machine tending, kitting, lab automation. Key figures: 25 kg, 3 kg payload, 588 mm reach, 4 degrees of freedom.

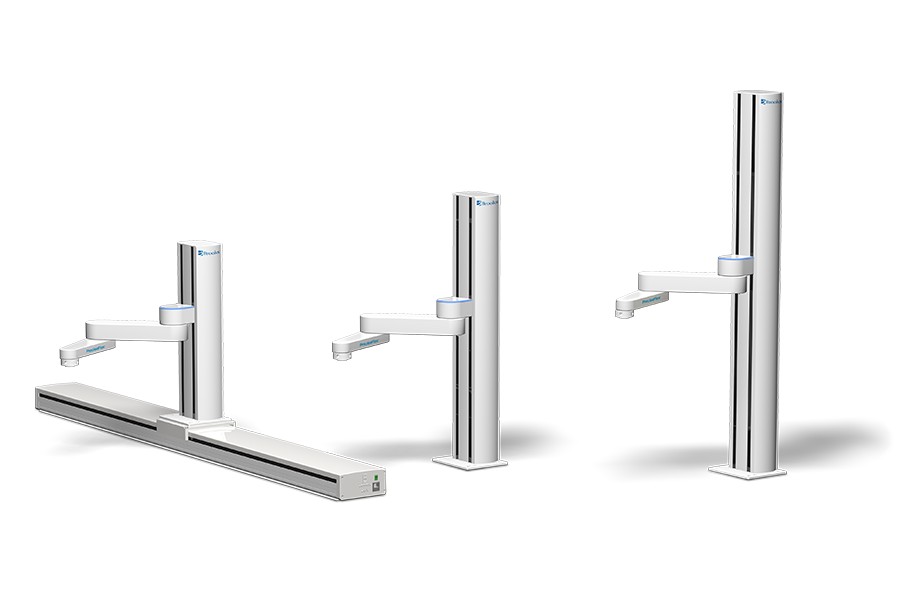

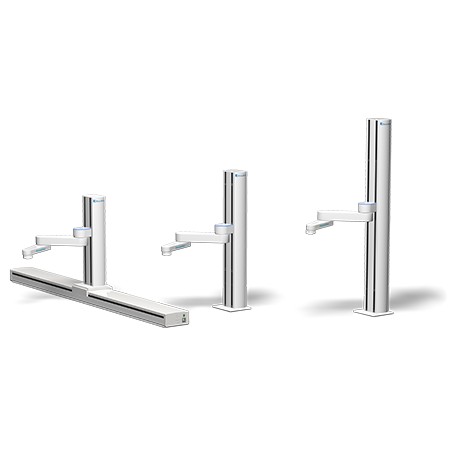

The PreciseFlex 3400 is a four-axis collaborative robot for electronics test and handling, machine loading and unloading, small-parts handling, kitting, storage and retrieval, indoor farming, lab automation and mobile applications that need a bit more payload than the PreciseFlex 400. Like the rest of the family it has horizontally articulated main axes on a tall Z column (400, 750 or 1,160 mm), giving a cylindrical work envelope that reaches into racks, shelves and stacked machines. It carries 3 kg, reaches 588 mm (666 mm with an IntelliGuide s23 gripper), moves at up to 1,500 mm/s horizontally and repeats to +/-0.09 mm at the tool flange. A collaborative linear rail extends reach by up to 2 m. The controller is built into the base, it draws 100-250 W (a DC option suits mobile robots), runs below 50 dB(A), has two air lines and end-of-arm I/O for tooling, and weighs 25-35 kg. Brooks quotes an MTBF of 125,000 hours.
FEATURES
- 4-axis collaborative robot
- Z column 400 / 750 / 1,160 mm
- Payload 3 kg
- horizontal reach 588 mm (666 mm with IntelliGuide s23)
- Up to 1,500 mm/s horizontal
- repeatability +/-0.090 mm
- 12 DI / 8 DO at base
- 2 in / 4 out and RS232 at end of arm
- two air lines (4.9 bar)
- Optional linear rail 1.0-2.0 m
- IntelliGuide s23/s60/s23D and v23/v60 grippers
- 100-250 W
- DC power option
- < 50 dB(A)
- 25-35 kg
- 0-50 C
- Collaborative operation (ISO 10218, ISO/TS 15066)
- hand-guided teaching
- embedded controller
- Guidance Development Studio / GPL / TCS API programming
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 25 kg |
|---|---|
| Payload | 3 kg |
| Reach | 588 mm |
| Repeatability | ±0.09 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | Electronics test cells, labs and machine-tending stations (indoor, 0-50 C) |
| Sensing & Compute | |
| Connectivity | 100 Mb Ethernet; Modbus/TCP; RS232; 12 DI / 8 DO |
| Software / AI | Guidance Development Studio; GPL; TCS API |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 25 kg |
|---|---|
| Payload | 3 kg |
| Reach | 588 mm |
| Repeatability | ±0.09 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | Electronics test cells, labs and machine-tending stations (indoor, 0-50 C) |
| Sensing & Compute | |
| Connectivity | 100 Mb Ethernet; Modbus/TCP; RS232; 12 DI / 8 DO |
| Software / AI | Guidance Development Studio; GPL; TCS API |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PreciseFlex 3400?
The PreciseFlex 3400 is a four-axis collaborative robot for electronics test and handling, machine loading and unloading, small-parts handling, kitting, storage and retrieval, indoor farming, lab automation and mobile applications that need a bit more payload than the PreciseFlex 400.
Who makes the PreciseFlex 3400?
The PreciseFlex 3400 is made by Brooks Automation, a robotics company based in United States.
How much does the PreciseFlex 3400 cost?
Brooks Automation has not publicly announced pricing for the PreciseFlex 3400. You can enquire through RobotAIGeek for current pricing.
What is the PreciseFlex 3400 used for?
The PreciseFlex 3400 is designed for material-handling, pick-and-place, and electronics test and handling, machine tending, kitting, lab automation. It is used in electronics and manufacturing settings.
What is the payload capacity of the PreciseFlex 3400?
The PreciseFlex 3400 has a payload capacity of 3 kg and a reach of 588 mm.
How much does the PreciseFlex 3400 weigh?
The PreciseFlex 3400 weighs 25 kg.
How many degrees of freedom does the PreciseFlex 3400 have?
The PreciseFlex 3400 has 4 degrees of freedom.
