DESCRIPTION

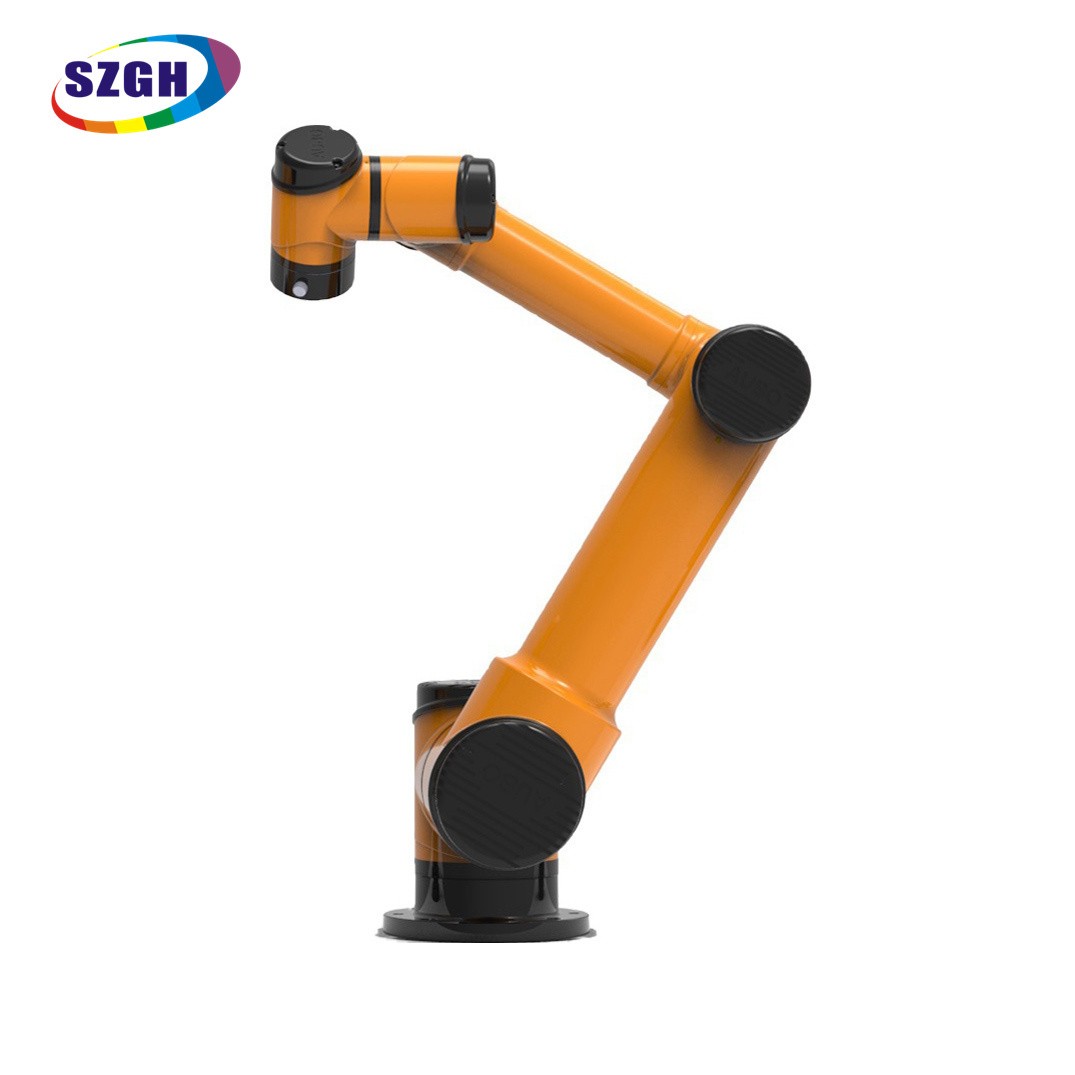

SZGH-I5 is a Collaborative-Robot from SZGH Automation. It is built for Assembly, Machine-Tending, Material-Handling. Key figures: 24 kg, 5 kg payload, 886.5 mm reach, 6 degrees of freedom.
The SZGH-I5 is the standard-size model in SZGH's I-series of six-axis collaborative robots from ShenZhen GuanHong Automation. It carries 5 kg over an 886.5 mm reach with ±0.02 mm repeatability, weighs about 24 kg and draws around 200 W on average. All six joints rotate ±360°, and the arm can be mounted on the floor, a ceiling or a wall. SZGH lists it for 3C electronics, automotive, hardware and appliances, kitchen and sanitary ware, medical and health, research and education, catering, new retail, daily chemicals and logistics.
FEATURES
- Payload: 5 kg
- Reach: 886.5 mm
- Repeatability: ±0.02 mm

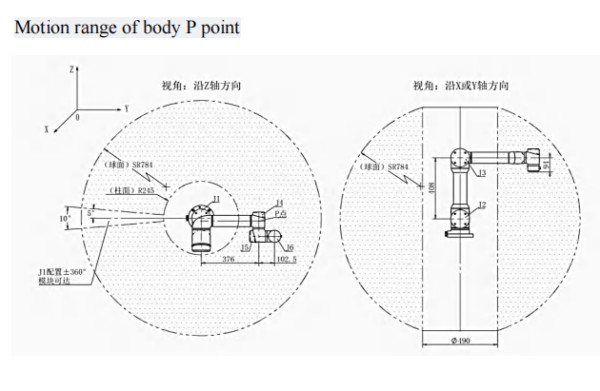

- 6 axes, each with ±360° motion range
- Max joint speed: 223°/s (axes 1-3), 237°/s (axes 4-6)
- Average power: 200 W
- Weight: about 24 kg
- Mounting: floor, ceiling or wall
- Ambient temperature: 0-50 °C
- Warranty: 2 years, with lifetime technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 24 kg |
|---|---|
| Payload | 5 kg |
| Reach | 886.5 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 24 kg |
|---|---|
| Payload | 5 kg |
| Reach | 886.5 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 0-50 °C |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-I5?
The SZGH-I5 is the standard-size model in SZGH's I-series of six-axis collaborative robots from ShenZhen GuanHong Automation. It carries 5 kg over an 886.5 mm reach with ±0.02 mm repeatability, weighs about 24 kg and draws around 200 W on average.
Who makes the SZGH-I5?
The SZGH-I5 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-I5 cost?
SZGH Automation has not publicly announced pricing for the SZGH-I5. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-I5 used for?
The SZGH-I5 is designed for assembly, machine-tending, material-handling, and pick-and-place. It is used in automotive, electronics, research, and education settings.
What is the payload capacity of the SZGH-I5?
The SZGH-I5 has a payload capacity of 5 kg and a reach of 886.5 mm.
How much does the SZGH-I5 weigh?
The SZGH-I5 weighs 24 kg.
How many degrees of freedom does the SZGH-I5 have?
The SZGH-I5 has 6 degrees of freedom.
