PreciseFlex c5

Brooks Automation

Collaborative-Robot

United StatesReleased

★Not rated yet

Compare

Sources:

preciseflexrobots.com

Industries:

Electronics Research Healthcare

Uses:

Material-Handling Pick-and-placeLab automation, electronics test and handling, machine feeding, mobile manipulation

Price:

Not announced

Model:

Brooks PreciseFlex c5 collaborative robot

DESCRIPTION

PreciseFlex c5 is a Collaborative-Robot from Brooks Automation. It is built for Material-Handling, Pick-and-place, Lab automation, electronics test and handling, machine feeding, mobile manipulation. Key figures: 28.8 kg, 5 kg payload, 721 mm reach, 4 degrees of freedom.

The PreciseFlex c5 is a four-axis collaborative robot with a rotary base that Brooks pitches as a new standard for lab automation and beyond. It suits electronics test and handling, machine feeding, small-parts handling, kitting, storage and retrieval, indoor farming and mobile applications, and uses patented direct-drive motors on all horizontal axes for higher reliability. Its tall Z axis (400, 750 or 1,160 mm) and slim arm give a near-cylindrical working volume for reaching into racks, shelves and stacked instruments, and the rotary base adds +/-168 degrees. It carries up to 5 kg (3 kg rated, without gripper), reaches 721 mm to the tool centre point (IntelliGuide grippers add 68.7 mm), moves at up to 1,500 mm/s horizontally and 600 mm/s vertically, and repeats to +/-0.05 mm. It weighs 28.8-41.9 kg depending on the column, draws 100-250 W with a DC option for mobile robots, speaks EtherNet/IP, Modbus/TCP and RS232, and works with IntelliGuide servo and vision grippers and the collaborative linear rail.

FEATURES

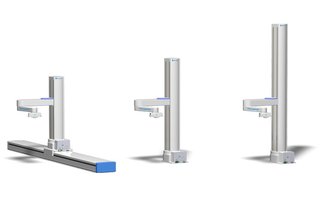

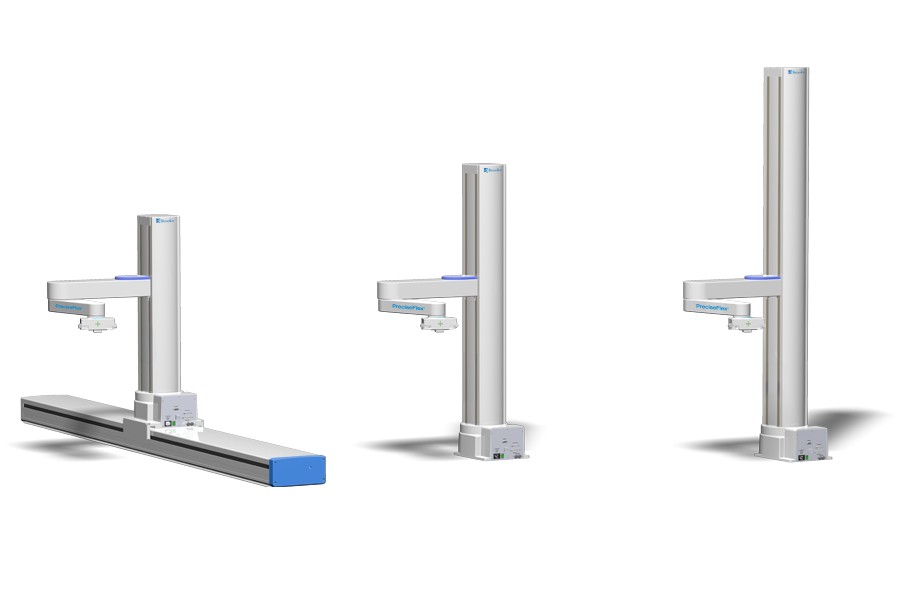

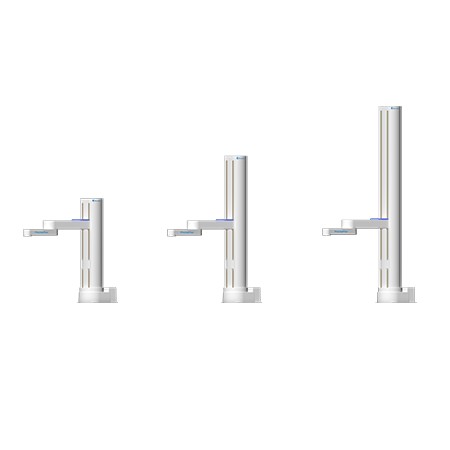

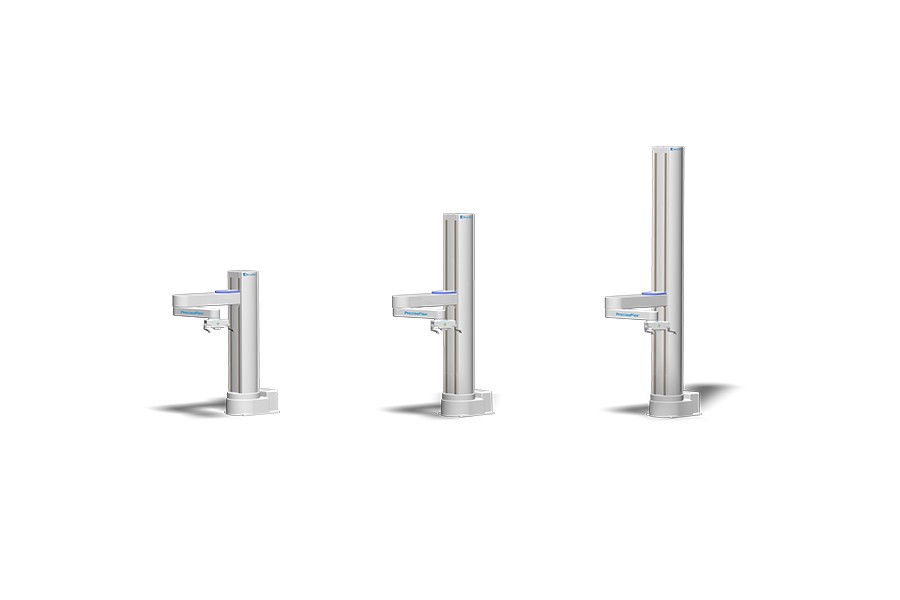

4-axis collaborative robot with rotary base (+/-168 deg) and tall Z axis 400 / 750 / 1,160 mm
Payload max 5.0 kg, rated 3.0 kg (without gripper)
Horizontal reach 721.2 mm to TCP (+68.7 mm with IntelliGuide grippers)
Up to 1,500 mm/s horizontal, 600 mm/s vertical
1,500 mm/s2
repeatability +/-0.050 mm
Patented direct-drive motors on all horizontal axes
EtherNet/IP, Modbus/TCP, RS232
12 DI / 8 DO
100-264 VAC, 100-250 W
DC option for mobile robots
28.8-41.9 kg
Options: IntelliGuide s23/s60/s23D, v23/v60
linear rail 1.0-2.0 m
Collaborative operation (ISO 10218, ISO/TS 15066)
hand-guided teaching
embedded controller
Guidance Development Studio / GPL / TCS API programming

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	28.8 kg
Payload	5 kg
Reach	721 mm
Repeatability	±0.05 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	4
Environment	Labs, electronics test cells and mobile manipulators (indoor)
Actuators	Direct-drive motors on horizontal axes
Sensing & Compute
Connectivity	EtherNet/IP; Modbus/TCP; RS232; 12 DI / 8 DO
Software / AI	Guidance Development Studio; GPL; TCS API

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	28.8 kg
Payload	5 kg
Reach	721 mm
Repeatability	±0.05 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	4
Environment	Labs, electronics test cells and mobile manipulators (indoor)
Actuators	Direct-drive motors on horizontal axes
Sensing & Compute
Connectivity	EtherNet/IP; Modbus/TCP; RS232; 12 DI / 8 DO
Software / AI	Guidance Development Studio; GPL; TCS API

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the PreciseFlex c5?

The PreciseFlex c5 is a four-axis collaborative robot with a rotary base that Brooks pitches as a new standard for lab automation and beyond.

Who makes the PreciseFlex c5?

The PreciseFlex c5 is made by Brooks Automation, a robotics company based in United States.

How much does the PreciseFlex c5 cost?

Brooks Automation has not publicly announced pricing for the PreciseFlex c5. You can enquire through RobotAIGeek for current pricing.

What is the PreciseFlex c5 used for?

The PreciseFlex c5 is designed for material-handling, pick-and-place, and lab automation, electronics test and handling, machine feeding, mobile manipulation. It is used in electronics, research, and healthcare settings.
