DESCRIPTION
Nimbo X is an Agricultural-Robots from Sveaverken. It is built for Agriculture. Key figures: 505 kg, 960 min runtime.

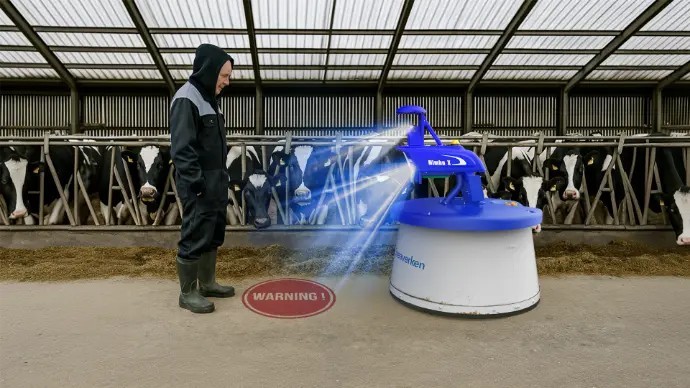

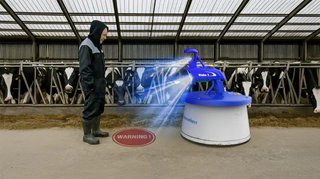

Nimbo X is Sveaverken's next-generation robotic feed pusher, navigating cattle barns with a 3D LiDAR instead of the visual navigation of the original Nimbo. The farm is first walked with a handheld laser scanner to build a 3D model of walls, feed tables and obstacles; routes are then drawn in the SveaMap tool, and only a 2-3 m magnetic path of about 35 nails is needed from the charging station. The LiDAR scans 200,000 points per second over a 360 x 59 degree field with 2 cm relative accuracy and 40-70 m range, and has a protective cover, a cleaning brush and a photosensitive plate for stable performance in any light. A 2 MP camera system adds obstacle detection and live video for remote control through the MooConnect app. It pushes feed at 18 m/min on two 400 W motors; its 48 V, 40 Ah battery charges in 4 hours and lasts about 24 tasks over two days or 16 hours continuous. The Nimbo X Plus lifts its roller for slopes up to 27%, and existing Nimbo units can be upgraded with a 3D Kit.
FEATURES
- 3D LiDAR: 200,000 points/s
- 360 x 59 deg FOV
- 2 cm relative accuracy
- 40-70 m range
- Self-cleaning LiDAR brush and protective cover
- photosensitive plate
- Camera 2 MP, 1080p @ 30 fps: obstacle detection and remote view
- Routes designed in SveaMap from a handheld 3D scan of the barn
- Magnetic path only 2-3 m (about 35 nails) from charging station
- Speed 18 m/min
- 2 x 400 W motors
- Battery 48 V, 40 Ah
- 4 h charge
- ~5% per task
- ~24 tasks / 2 days or 16 h continuous
- Slope 10.5%
- Nimbo X Plus 27% with roller lifting
- Diameter 1,080 mm
- height 1,330 mm in use (665 mm transport)
- weight 505 kg
- App / web / remote controller
- OTA
- IoT
- 3D Kit upgrades an existing Nimbo to Nimbo X
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 505 kg |
|---|---|
| Dimensions | L 1.08 m × W 1.08 m × H 1.33 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.08 km/h |
| Environment | Dairy and beef cattle barns, including complex layouts and low light |
| Power | |
| Battery Life | 960 min |
| Charging Type | docking station |
| Sensing & Compute | |
| Sensors | 3D LiDAR, 2 MP camera, magnetic sensor, photosensitive plate |
| Connectivity | Wireless connectivity; IoT; OTA; MooConnect app |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 505 kg |
|---|---|
| Dimensions | L 1.08 m × W 1.08 m × H 1.33 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.08 km/h |
| Environment | Dairy and beef cattle barns, including complex layouts and low light |
| Power | |
| Battery Life | 960 min |
| Charging Type | docking station |
| Sensing & Compute | |
| Sensors | 3D LiDAR, 2 MP camera, magnetic sensor, photosensitive plate |
| Connectivity | Wireless connectivity; IoT; OTA; MooConnect app |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Nimbo X?
Nimbo X is Sveaverken's next-generation robotic feed pusher, navigating cattle barns with a 3D LiDAR instead of the visual navigation of the original Nimbo.
Who makes the Nimbo X?
The Nimbo X is made by Sveaverken, a robotics company based in Sweden.
How much does the Nimbo X cost?
Sveaverken has not publicly announced pricing for the Nimbo X. You can enquire through RobotAIGeek for current pricing.
What is the Nimbo X used for?
The Nimbo X is designed for agriculture. It is used in agriculture settings.
How much does the Nimbo X weigh?
The Nimbo X weighs 505 kg.
How fast is the Nimbo X?
The Nimbo X can move at speeds of up to 1.08 km/h.
What is the battery life of the Nimbo X?
The Nimbo X runs for about 960 minutes on a charge.
