DESCRIPTION
MOBOT TRANSPORTER T15 EVO II is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Transport. Key figures: 680 kg, 240 min runtime, 1500 kg payload.

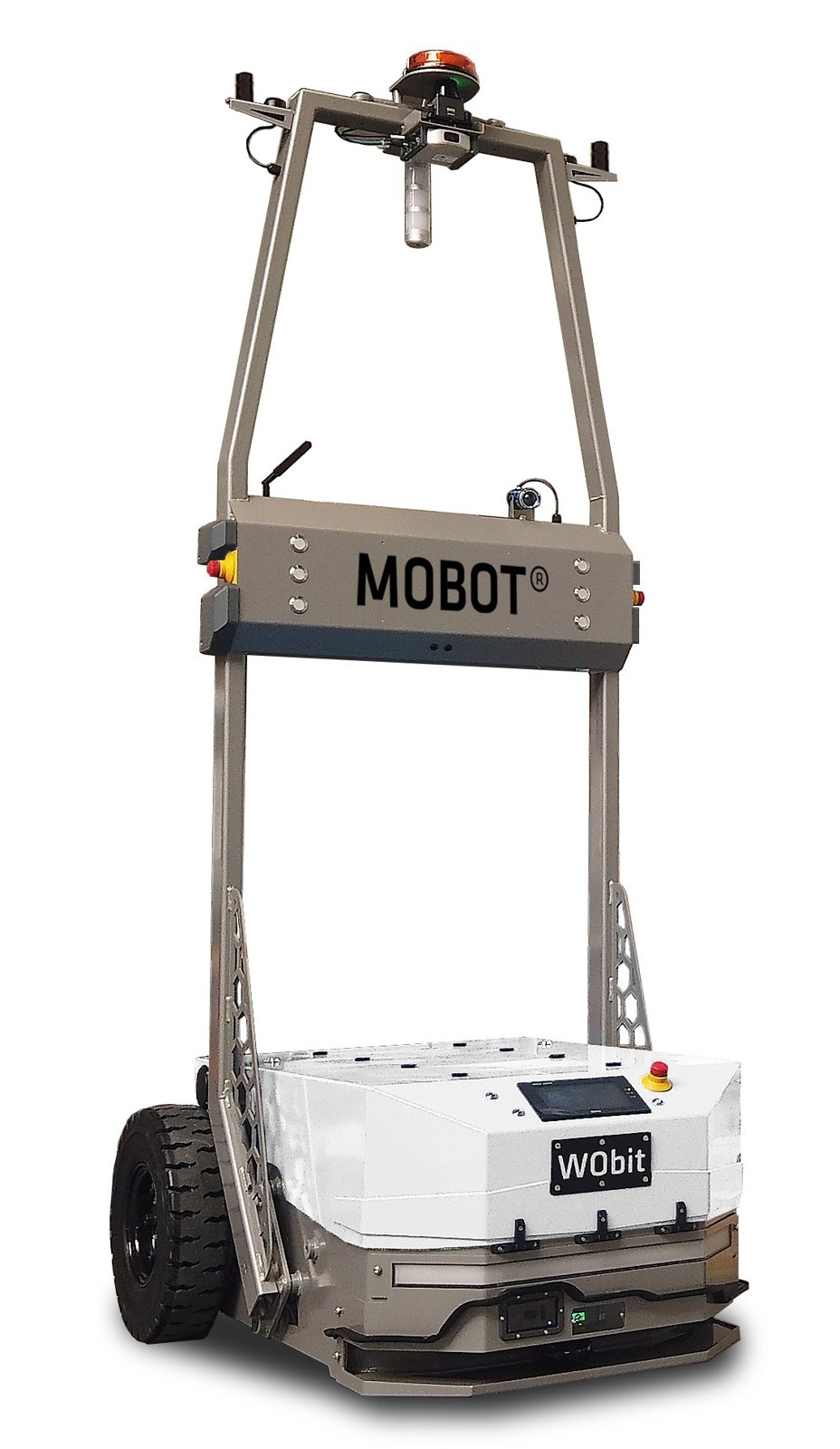

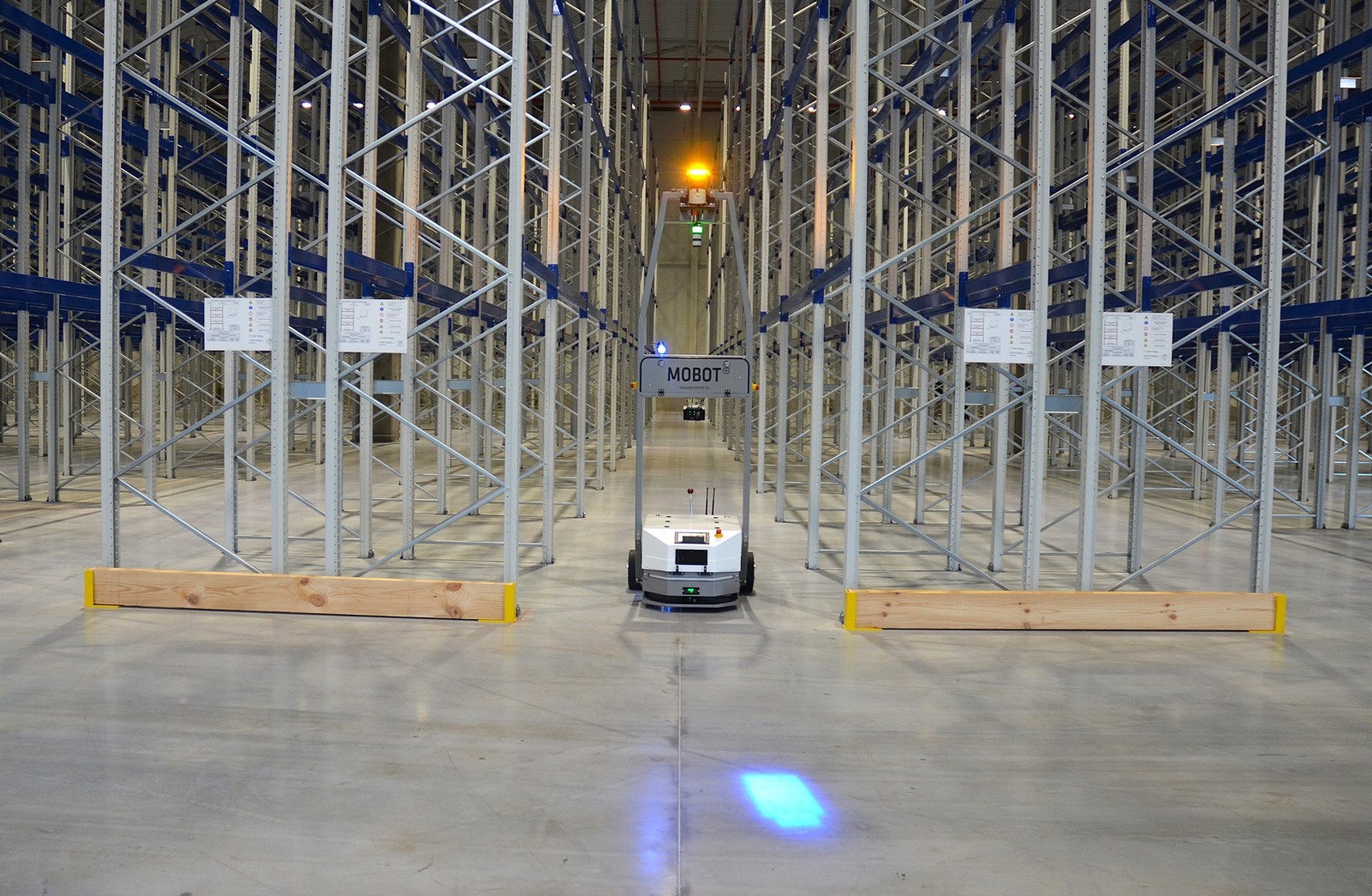

The MOBOT TRANSPORTER T15 EVO II is the outdoor-and-indoor evolution of WObit's T15 tugger, built to tow trailers between halls and across yards as well as inside buildings. It pulls a total load of up to 1,500 kg via a replaceable rear hitch at up to 5 km/h, rides on 450 mm tread wheels with a sprung 150 mm support wheel, and is rated IP65 for -25 to +50 C, rain, snow and fog. Its hybrid navigation combines LMS laser navigation (LiDAR) with visual navigation and optional RTK GNSS (GPS, Galileo, GLONASS, BeiDou), using a 2D safety laser scanner, a 2D navigation scanner and optional 3D sensors for overhanging obstacles. A lithium-ion pack of four batteries (expandable to six or eight) is charged automatically by induction; with four batteries it runs about 4 hours and recharges from 10 to 100% in about 40 minutes. It communicates over Wi-Fi with optional LTE, measures 1,300 x 1,000 x 550 mm and weighs about 680 kg.
FEATURES
- Tows trailers: total load up to 1,500 kg
- Indoor and outdoor
- IP65
- 25 to +50 C
- Hybrid navigation: LMS LiDAR + vision + optional RTK GNSS
- Max speed 5 km/h
- 3.5 kW
- 450 mm tread wheels
- Inductive charging
- Li-ion 4 batteries (expandable to 6 or 8)
- about 4 h
- 10-100% in about 40 min
- Wi-Fi
- optional LTE
- Size 1,300 x 1,000 x 550 mm
- about 680 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 680 kg |
|---|---|
| Dimensions | L 1.3 m × W 1 m × H 550 mm |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5 km/h |
| Environment | Outdoor yards and indoor plants; -25 to +50 C; IP65, -25°C to 50°C |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, 2D navigation laser scanner, optional 3D sensors, optional RTK GNSS |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 680 kg |
|---|---|
| Dimensions | L 1.3 m × W 1 m × H 550 mm |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5 km/h |
| Environment | Outdoor yards and indoor plants; -25 to +50 C; IP65, -25°C to 50°C |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, 2D navigation laser scanner, optional 3D sensors, optional RTK GNSS |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT TRANSPORTER T15 EVO II?
The MOBOT TRANSPORTER T15 EVO II is the outdoor-and-indoor evolution of WObit's T15 tugger, built to tow trailers between halls and across yards as well as inside buildings.
Who makes the MOBOT TRANSPORTER T15 EVO II?
The MOBOT TRANSPORTER T15 EVO II is made by WObit, a robotics company based in Poland.
How much does the MOBOT TRANSPORTER T15 EVO II cost?
WObit has not publicly announced pricing for the MOBOT TRANSPORTER T15 EVO II. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT TRANSPORTER T15 EVO II used for?
The MOBOT TRANSPORTER T15 EVO II is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT TRANSPORTER T15 EVO II?
The MOBOT TRANSPORTER T15 EVO II has a payload capacity of 1,500 kg.
How much does the MOBOT TRANSPORTER T15 EVO II weigh?
The MOBOT TRANSPORTER T15 EVO II weighs 680 kg.
How fast is the MOBOT TRANSPORTER T15 EVO II?
The MOBOT TRANSPORTER T15 EVO II can move at speeds of up to 5 km/h.
What is the battery life of the MOBOT TRANSPORTER T15 EVO II?
The MOBOT TRANSPORTER T15 EVO II runs for about 240 minutes on a charge.
